2007 Cadillac CTS Engine Control Module Replacement Guide
The engine control module in a 2007 Cadillac CTS manages fuel injection, ignition timing, and emission controls. Failure typically results from internal processor faults, loss of communication, or corrupted calibration data, leading to poor performance or a complete loss of engine operation.
Quick Summary
- ECM removal and install takes about 0.6 hours plus 0.5 hours for relearn.
- Capture and restore ECM data with a scan tool before removal.
- Verify no voltage at the ECM fuse to avoid electrical damage.
- Avoid touching connector pins to prevent static discharge.
When your 2007 Cadillac CTS exhibits erratic idle, loss of power, or throws ECM‑related trouble codes, the engine control module may need attention. This guide explains what the ECM does, how to access it, and what factory‑approved steps are required after replacement. By following the outlined procedure, you can understand the labor involved, the safety cautions, and the programming expectations, helping you decide between a repair or a refurbished replacement.
What the PCM Does in a 2007 Cadillac CTS
In the 2007 Cadillac CTS the engine control module acts as the brain for the powertrain, interpreting sensor inputs and directing fuel, spark, and emission functions. It ensures the engine runs smoothly and meets emissions standards, making it essential for reliable performance. 2007 Cadillac CTS replacement engine computers are designed to match the vehicle’s calibration and communication protocols, preserving driveability and fuel efficiency.
Where the PCM Is Located and What Replacement Involves
The ECM resides in the engine compartment and connects via an upper body side connector. To replace it, first disconnect the main relay circuit voltage at the ECM fuse using a DVOM, then remove the upper connector without touching the pins. Removal and installation of the module are listed at 0.6 hours for the 3.6L engine, and a subsequent relearn procedure adds 0.5 hours. Follow the cautions to protect the unit from electrostatic discharge.
How to Reach the PCM on the 2007 Cadillac CTS
- Remove any debris from around the control module connector.
- Disconnect the battery negative cable.
- Raise and support the vehicle.

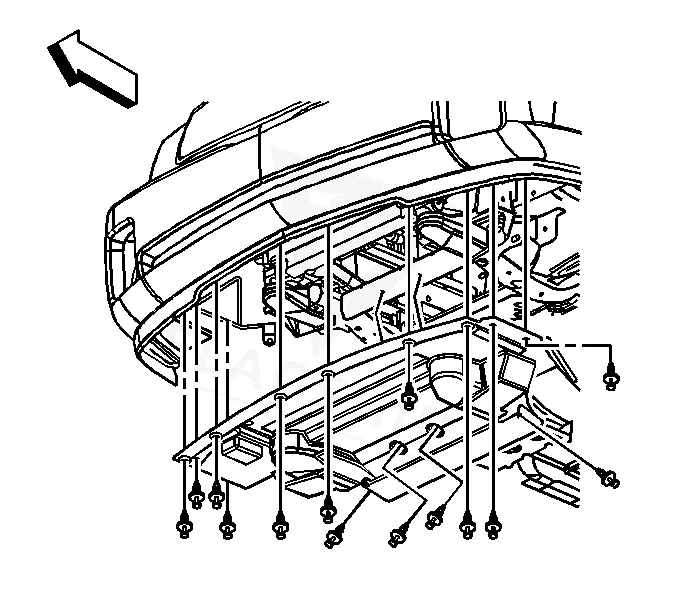

- Remove the front air deflector.
- Remove the bolt from the ECM housing cover.
- Remove the ECM from the housing.
- Loosen the screws at the ECM electrical connectors.
- Disconnect the ECM electrical connectors.
- Remove the ECM from the vehicle.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | 2.8L | 0.6 hr |
| Powertrain Control Module R&R | 3.6L | 0.6 hr |
| Powertrain Control Module R&R | 6.0L | 1.4 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | 2.8L | 2.9 hr |
| Engine Control Module R&R | 3.6L | 2.9 hr |
| Engine Control Module R&R | 6.0L | 1.4 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
Factory guidance requires you to capture all ECM data with a scan tool before removal and later restore that information into the new unit. After installation, a relearn of the ECM is performed for 0.5 hours. Flagship One provides a VIN-programmed replacement unit that already contains the necessary calibration, so those steps are completed before the unit reaches you.
Symptoms of a Failing PCM
Typical signs of a failing ECM in a 2007 Cadillac CTS include a no‑start condition, intermittent stalling, rough idle, and loss of communication with the scan tool. You may also see trouble codes such as processor communication error which indicate internal processor issues. These symptoms often appear together and point to the need for ECM diagnostics or replacement.
Module Trouble Codes on the 2007 Cadillac CTS
The following internal trouble codes are documented for the 2007 Cadillac CTS engine control module:
Factory Service Bulletins Worth Knowing
Service bulletin #10287C, dated April 13, 2012, addresses premature timing chain wear and recommends re‑programming the engine control module as part of the corrective action.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| — | Customer Satisfaction – Premature Timing Chain Wear-Reprogram Engine Control Module – (Apr 13, | — |
Protecting the PCM in Your 2007 Cadillac CTS
- Maintain a healthy charging system to avoid voltage spikes.
- Keep ground connections and ECM connectors clean and secure.
- Use proper jump‑start techniques to prevent over‑voltage at the ECM.
- Address any ECM‑related codes promptly before they worsen.
- Inspect connector seals regularly to keep moisture out.
Frequently Asked Questions
Can a faulty ECM cause my 2007 Cadillac CTS to stall while driving?
Yes, the ECM controls fuel and spark timing, so internal faults can lead to stalling or loss of power while the vehicle is in motion.
Do I need special tools to replace the engine control module on a 2007 Cadillac CTS?
A scan tool is required to capture and restore ECM data, and a digital volt‑ohm meter is needed to verify the fuse voltage before removal.
Is the ECM relearn step mandatory after installing a new unit in my 2007 Cadillac CTS?
Factory procedures list a 0.5‑hour relearn after ECM replacement, ensuring the new module synchronizes with the vehicle’s systems.
When the ECM in your 2007 Cadillac CTS shows signs of failure, you can either have it repaired or install a refurbished replacement. Both options address the underlying fault, but a refurbished unit from Flagship One arrives pre‑programmed to match your vehicle’s specifications, simplifying the post‑install steps.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2007 Cadillac CTS with a lifetime warranty, free shipping and no core charge. The full Cadillac CTS module lineup covers other engine configurations as well.
Final Thoughts
Replacing the engine control module in a 2007 Cadillac CTS restores proper engine management and drivability. Consider a Flagship One refurbished unit for a reliable, VIN‑matched solution that meets factory requirements.
