2006 Kia Optima ECM Replacement and Common Failure Signs
The Engine Control Module (ECM) in your 2006 Kia Optima manages fuel delivery, ignition timing, and emissions systems. Electrical surges, moisture intrusion, or internal faults may disrupt engine performance or prevent startup.
Quick Summary
- ECM failure may cause stalling, misfires, or a no-crank condition in the 2006 Kia Optima.
- Factory replacement requires 2.7 hours for removal and installation, plus 0.5 hours for relearn procedures.
- VIN programming is mandatory after ECM replacement to ensure proper vehicle operation.
- Diagnostic testing typically takes 0.5 hours to confirm ECM-related issues.
- Flagship One units arrive pre-programmed, eliminating the need for manual VIN entry.
If your 2006 Kia Optima struggles to start, stalls unexpectedly, or triggers a check-engine light, the Engine Control Module (ECM) may be at fault. This critical component governs engine performance by regulating fuel, ignition, and emissions systems. Replacing it involves more than just swapping parts—proper installation and programming are essential to restore reliable operation. Understanding the process, labor requirements, and symptoms of failure helps you make informed decisions about repairs or replacements.
What the PCM Does in a 2006 Kia Optima
The ECM in your 2006 Kia Optima acts as the brain of the engine, processing data from sensors to optimize performance. It controls fuel injection, ignition timing, and idle speed, ensuring smooth operation and emissions compliance. When it fails, you may experience drivability issues like hesitation, stalling, or even a complete no-start condition. Since the ECM is vehicle-specific, replacement engine computers for the Optima must match the original unit’s calibration to avoid further problems. A faulty ECM can also trigger warning lights or prevent your scan tool from communicating with the vehicle.
Where the PCM Is Located and What Replacement Involves

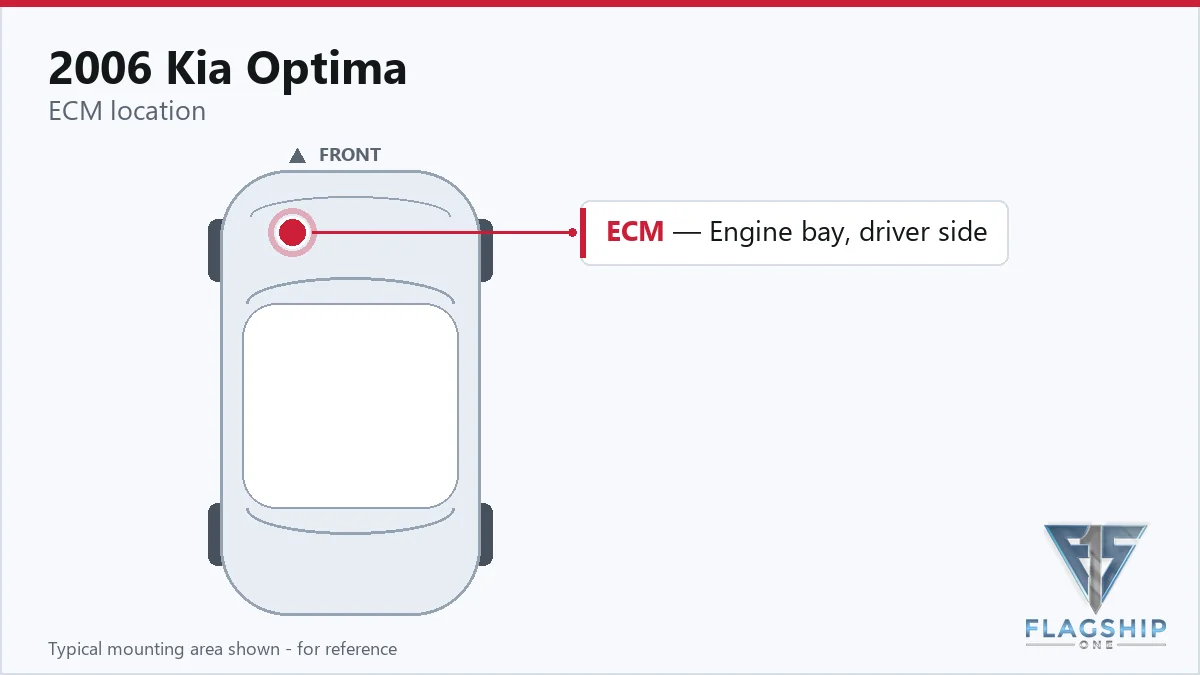

The ECM in the 2006 Kia Optima is located next to the air cleaner assembly, making it relatively accessible for replacement. Factory procedures require removing the old unit and installing the new one, a process that typically takes 2.7 hours of labor. After installation, a 0.5-hour relearn procedure is necessary to synchronize the ECM with the vehicle’s systems. No specialized tools are mentioned for removal, but proper torque specifications should be followed to avoid connector damage. Diagnostic testing, if needed, adds another 0.5 hours to confirm the issue.
How to Reach the PCM on the 2006 Kia Optima
- Turn the ignition switch off and disconnect the battery (-) terminal.
- Disconnect the ECM connector.
- Unscrew 4 mounting bolts behind the air cleaner.
- Remove the ECM.
- Select “Vehicle” and “Engine” (For example, SEDONA 3.5L V6).
- Select “VIN WRITING”.
- Check the ECM status.
- Write the VIN with cursor, function and number keys.
- After verifying the written VIN, press the “ENTER” key.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module R&R | All configurations | 2.7 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Powertrain Control System Diagnosis & Testing | All configurations | 0.5 hr |
Programming Requirements After Replacement
After replacing the ECM in your 2006 Kia Optima, the VIN must be programmed into the new module to ensure proper operation. The factory procedure involves manually entering the VIN using the cursor, function, and number keys on the scan tool. However, a VIN-programmed replacement unit from Flagship One arrives ready for installation, eliminating the need for this step. This saves time and reduces the risk of input errors, allowing your vehicle to return to service more quickly.
Symptoms of a Failing PCM
A failing ECM in the 2006 Kia Optima may cause a range of symptoms, including intermittent stalling, rough idle, or a no-start condition. You might also notice poor acceleration, misfires, or the check-engine light illuminating. In some cases, the vehicle may enter a limp-home mode, limiting engine power. If the ECM loses communication with the scan tool, diagnostics become difficult. One documented internal fault is an internal control module memory error, which often requires module replacement to resolve.
Module Trouble Codes on the 2006 Kia Optima
The 2006 Kia Optima’s ECM may log specific trouble codes when internal faults occur. These codes help diagnose issues and determine whether replacement is necessary. Below are the documented module-internal codes for this vehicle.
| Code | Meaning | Full Guide |
|---|---|---|
| P0605 | Internal ROM error | Full P0605 guide → |
Factory Service Bulletins Worth Knowing
A factory service bulletin (TSB ENG031r) addresses calibration verification and ECM reprogramming for the 2006.5 Kia Optima with the 2.4L engine. This bulletin, revised in November 2007, provides updated procedures for ensuring the ECM operates correctly after replacement or software updates. If your vehicle exhibits drivability issues, this TSB may apply and should be referenced during diagnostics.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| — | TSB • Fuel System • [ENG031r] 2006.5 Optima (MG) 2.4L Calibration Verification Number/Powertrai | — |
Protecting the PCM in Your 2006 Kia Optima
- Maintain a healthy charging system to prevent voltage spikes that may damage the ECM.
- Inspect and clean electrical connectors regularly to avoid corrosion or poor contact.
- Avoid jump-starting with improper voltage, as this can stress the module.
- Address check-engine lights promptly to prevent secondary issues.
- Keep the ECM connector seals intact to prevent moisture intrusion.
- Use dielectric grease on connectors to protect against corrosion.
Frequently Asked Questions
Why does my 2006 Kia Optima need a VIN programmed into the ECM after replacement?
The VIN ensures the ECM matches your vehicle’s specific configuration, including emissions and engine calibration. Without it, the module may not function correctly, leading to drivability issues or a no-start condition. Factory procedures require manual entry, but pre-programmed units eliminate this step.
How long does it take to replace the ECM in a 2006 Kia Optima?
Factory labor time for ECM removal and installation is 2.7 hours. An additional 0.5 hours is required for the relearn procedure to synchronize the new module with the vehicle’s systems. Diagnostic testing, if needed, adds another 0.5 hours.
What are the most common signs of ECM failure in the 2006 Kia Optima?
Common symptoms include stalling, rough idle, misfires, or a no-start condition. The check-engine light may illuminate, and the vehicle might enter limp-home mode. Communication loss with the scan tool is another red flag, often tied to internal module faults.
If your 2006 Kia Optima’s ECM has failed, you have options for repair or replacement. A new or remanufactured unit ensures reliability, while pre-programmed modules save time and reduce installation complexity. Given the labor involved, choosing a unit that eliminates additional steps can streamline the process and get your vehicle back on the road faster.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2006 Kia Optima with a lifetime warranty, free shipping and no core charge. The full Kia Optima module lineup covers other engine configurations as well.
Final Thoughts
The 2006 Kia Optima relies on its ECM to maintain smooth engine operation, and failure can lead to frustrating drivability issues. Understanding the replacement process, labor requirements, and symptoms helps you address problems efficiently. Whether you opt for a new or remanufactured unit, ensuring proper programming and installation is key to restoring performance.
