2006 Isuzu Ascender PCM/ECM Replacement and Common Failure Signs
The powertrain control module (PCM) or engine control module (ECM) in your 2006 Isuzu Ascender manages fuel, ignition, and emissions systems. Internal faults may cause drivability issues or prevent the engine from starting.
Quick Summary
- PCM/ECM controls critical engine and transmission functions in the 2006 Isuzu Ascender.
- Replacement typically requires 1.4 hours for removal and installation.
- A relearn procedure of 0.5 hours is needed after module replacement.
- Factory procedure mandates capturing and restoring module data before removal.
- Internal trouble codes like P0601 may indicate module failure.
If your 2006 Isuzu Ascender struggles to start, stalls unexpectedly, or triggers warning lights, the powertrain control module (PCM) or engine control module (ECM) may be at fault. These components are the brains behind your vehicle’s fuel delivery, ignition timing, and emissions systems. When they fail, symptoms can range from subtle drivability issues to complete engine shutdown. Replacing the module involves careful steps to preserve vehicle data and ensure proper function afterward. Understanding the process helps you avoid unnecessary delays or repeat repairs.
What the PCM Does in a 2006 Isuzu Ascender
In your 2006 Isuzu Ascender, the PCM or ECM acts as the central computer for engine and transmission operations. It processes signals from sensors to adjust fuel injection, spark timing, and emissions controls in real time. A malfunctioning module may disrupt these functions, leading to poor performance or failure to start. If replacement becomes necessary, replacement engine computers for the Ascender are designed to restore proper operation, but programming steps must be followed to avoid issues with vehicle systems like StabiliTrak or the instrument cluster.
Where the PCM Is Located and What Replacement Involves

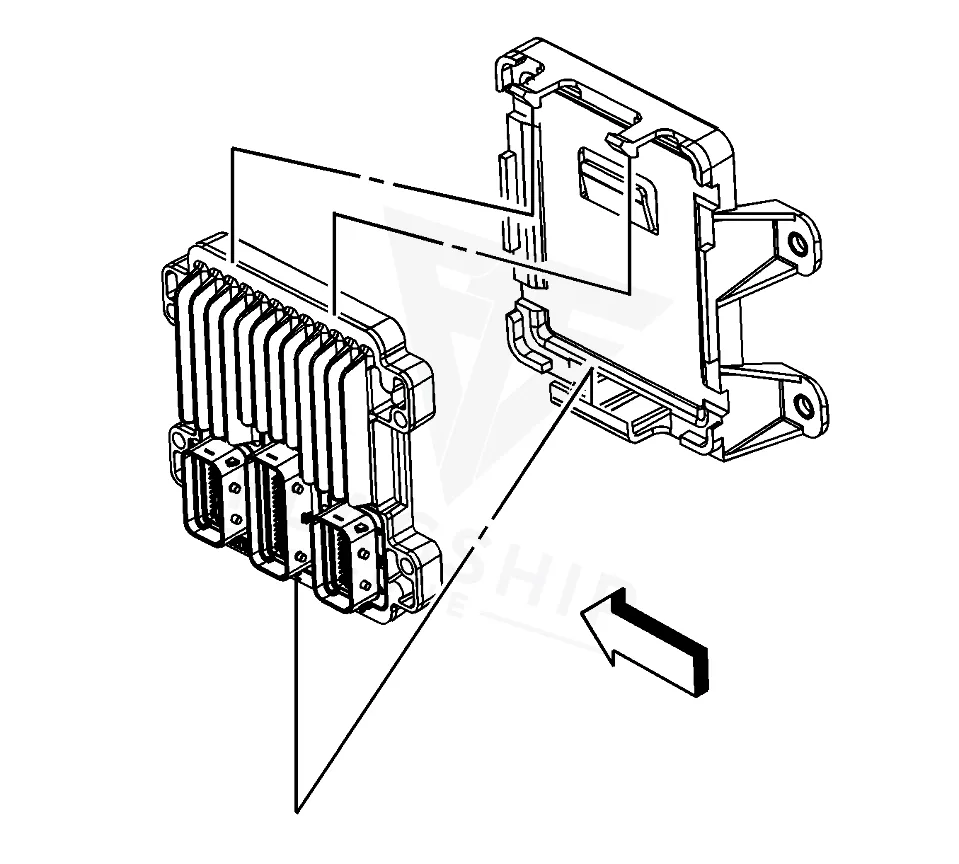

The PCM or ECM in your 2006 Isuzu Ascender is mounted on a bracket, secured by two retainers at the top. To access it, you’ll need to disengage these retainers before carefully removing the module. Replacement typically takes 1.4 hours for removal and installation, according to labor guides. After installation, a relearn procedure of 0.5 hours is required to synchronize the new module with the vehicle’s systems. Always handle the module with care to avoid static discharge, which can damage internal components.
How to Reach the PCM on the 2006 Isuzu Ascender
- Remove the faulty PCM and install the new service PCM.
- Remove any debris from around the control module connector.
- Disconnect the instrument panel wiring harness electrical connector from the PCM.
- Disconnect the engine wiring harness electrical connectors from the PCM.
- Remove the PCM bracket bolts and nuts.
- Remove the PCM bracket w/PCM from the studs.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module R&R | All configurations | 1.4 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Powertrain Control Module R&R | All configurations | 1.4 hr |
Programming Requirements After Replacement
Before removing the original PCM or ECM in your 2006 Isuzu Ascender, the factory procedure requires capturing the module’s data using a scan tool. This data must be restored into the new module to maintain proper vehicle function. However, if you install a VIN-programmed replacement unit, these steps are already completed, saving time and reducing the risk of programming errors. The relearn procedure, which takes 0.5 hours, ensures the module communicates correctly with the engine and transmission systems.
Symptoms of a Failing PCM
A failing PCM or ECM in your 2006 Isuzu Ascender may cause a range of symptoms, including intermittent stalling, rough idling, or a no-start condition. You might also notice warning lights on the dashboard or difficulty communicating with a scan tool. Trouble codes like internal control module memory check sum error often appear when the module’s memory or processing functions are compromised. If these symptoms arise, addressing the issue promptly can prevent further drivability problems or damage to other components.
Module Trouble Codes on the 2006 Isuzu Ascender
The 2006 Isuzu Ascender may log specific trouble codes when the PCM or ECM experiences internal faults. These codes help diagnose whether the module itself is the source of the problem.
Factory Service Bulletins Worth Knowing
Factory service bulletin #08-05-25-005 addresses an issue where the StabiliTrak indicator light may blink intermittently, accompanied by a ‘StabiliTrak Active’ message in the driver information center. This condition can occur during normal driving without any trouble codes being stored. The bulletin recommends reprogramming the electronic brake control module (EBCM) to resolve the issue. While not directly related to the PCM or ECM, such symptoms highlight the importance of proper module communication in your 2006 Isuzu Ascender.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 08-05-25-005 | Intermittent StabiliTrak Indicator Light Blinking, StabiliTrak Active Message Displayed, DTC C0 | #2 Some customers may comment on a blinking StabiliTrak® indicator light along with a StabiliTrak Active message displayed in the DIC during normal driving… |
Protecting the PCM in Your 2006 Isuzu Ascender
- Maintain a healthy charging system to prevent voltage spikes that can damage the module.
- Ensure all electrical connectors and grounds are clean and secure to avoid signal issues.
- Avoid jump-starting the vehicle with improper voltage, which may harm sensitive electronics.
- Address trouble codes promptly to prevent cascading failures in related systems.
- Keep the module’s connector seals intact to protect against moisture and corrosion.
- Use a scan tool to monitor module health during routine maintenance checks.
Frequently Asked Questions
How do I know if my 2006 Isuzu Ascender’s PCM or ECM is failing?
Common signs include a no-start condition, stalling, or warning lights on the dashboard. Trouble codes like P0601 or P0603 may also indicate internal module faults. A scan tool can confirm whether the module is the source of the issue.
Can I replace the PCM or ECM in my 2006 Isuzu Ascender myself?
While physically replacing the module is straightforward, programming it requires a scan tool and following specific steps to capture and restore vehicle data. Mistakes during this process can lead to drivability issues or communication errors with other systems.
What happens if I don’t perform the relearn procedure after replacing the PCM or ECM?
Skipping the relearn procedure may result in poor engine performance, shifting issues, or warning lights. The vehicle’s systems rely on the module being properly synchronized to function correctly, so the relearn step is essential.
If your 2006 Isuzu Ascender requires a PCM or ECM replacement, you have options between a new or refurbished unit. Refurbished modules are often a cost-effective choice, provided they are properly programmed and tested. For this vehicle, ensuring the replacement module is VIN-programmed can save time and reduce the risk of post-installation issues.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2006 Isuzu Ascender with a lifetime warranty, free shipping and no core charge. The full Isuzu Ascender module lineup covers other engine configurations as well.
Final Thoughts
The PCM or ECM in your 2006 Isuzu Ascender plays a critical role in engine and transmission performance. If you experience symptoms like stalling, no-start conditions, or trouble codes, addressing the module promptly can restore reliable operation. Whether you opt for a new or refurbished replacement, following the correct procedures ensures your SUV runs smoothly.
