2006 Dodge Ram Cummins PCM Replacement Guide
In the 2006 Dodge Ram with the 5.9L Cummins, the Powertrain Control Module (PCM) manages engine timing, fuel delivery, and emissions. A failure typically results in loss of engine control, diagnostic trouble codes, and may prevent the ABS from receiving the vehicle identification number.
Quick Summary
- PCM sits on the passenger‑side dash panel inside the engine bay.
- Replacing the unit usually requires about 0.3 hours for a reset and 0.5 hours for a relearn.
- Factory cautions advise disconnecting the ABS controller during replacement.
- A scan tool must write the original VIN and mileage after install.
When a 2006 Dodge Ram equipped with the 5.9L Cummins engine exhibits symptoms such as no‑start, stalling, or unexpected ABS warnings, the Powertrain Control Module is a common culprit. Understanding where the PCM lives, how long a shop typically spends on removal and calibration, and what post‑install steps are required can help you decide whether to repair the existing unit or install a replacement. This guide walks you through the location, labor expectations, programming requirements, and preventive measures so you can keep your truck running reliably.
What the PCM Does in a 2006 Dodge Ram Truck (Cummins)
The Powertrain Control Module in the 2006 Dodge Ram Cummins acts as the brain for both the engine and transmission, coordinating fuel injection, turbo boost, and emissions controls. It also communicates the vehicle identification number to systems like ABS, ensuring proper fault monitoring. Because the PCM controls critical performance parameters, any loss of function can trigger a range of drivability issues. Proper operation is essential for meeting emissions standards and maintaining smooth power delivery. The module’s role is especially vital for diesel applications where torque management is complex. 2006 Dodge Ram Cummins replacement PCM provides the necessary processing power to keep the engine and related systems synchronized.
Where the PCM Is Located and What Replacement Involves
The PCM, identified as unit two, is mounted in the engine compartment attached to the passenger‑side dash panel. Access typically involves removing the dash cover and disconnecting the electrical harness. The labor guide lists a reset procedure for a Ram 2500 at roughly 0.3 hours and a relearn step at about 0.5 hours. No specific torque values are supplied, so standard connector engagement practices apply. During removal, the factory recommends temporarily disconnecting the ABS controller to avoid VIN‑related diagnostic trouble codes.
How to Reach the PCM on the 2006 Dodge Ram Truck (Cummins)
- Disconnect and isolator the negative battery cable.
- Unplug the four 38–way connectors from the PCM.
- Remove the four PCM mounting bolts and remove the PCM from vehicle.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module Relearn | Ram 1500 | 0.5 hr |
| Engine Control Module Relearn | Ram 2500 | 0.5 hr |
| Engine Control Module Reset | Ram 1500 | 0.3 hr |
| Engine Control Module Reset | Ram 2500 | 0.3 hr |
| Engine Control Module R&R | 3.7L | 0.8 hr |
| Engine Control Module R&R | 4.7L | 0.8 hr |
| Engine Control Module R&R | 5.7L | 0.8 hr |
| Engine Control Module R&R | 8.3L | 0.8 hr |
Programming Requirements After Replacement
After installing a new PCM, the factory procedure requires using a scan tool to program the original vehicle identification number and the exact mileage into the module. Failure to complete this step can generate a diagnostic trouble code. Flagship One units arrive already loaded with the correct VIN and mileage, so the only remaining action is to confirm the programming with a scan tool. a VIN-programmed replacement unit eliminates the need for manual entry of those parameters.
Symptoms of a Failing PCM
A failing PCM in the 2006 Dodge Ram Cummins may cause the engine to refuse to start, intermittent stalling at idle, loss of power during acceleration, or erratic transmission shifting. You might also see dead scan‑tool communication or ABS warning lights because the module no longer broadcasts the VIN. One of the documented internal codes, PCM communication fault, often appears when the module cannot properly interface with the vehicle’s bus network.
Module Trouble Codes on the 2006 Dodge Ram Truck (Cummins)
The following internal diagnostic codes are commonly reported for this PCM:
| Code | Meaning | Full Guide |
|---|---|---|
| P0606 | Module processor failure | Full P0606 guide → |
| P0607 | Module performance fault | Full P0607 guide → |
Factory Service Bulletins Worth Knowing
Service bulletin #08-030-06 Rev. A addresses Powertrain Control Module Initialization procedures. Additionally, Rc‑K01-10 outlines the California emissions recall that requires ECM reprogramming to achieve OBD readiness.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 08-030-06 Rev. A | 08-030-06 Rev. A Powertrain Control Module Initialization | — |
| — | Rc-K01-10 California Emissions Recall K01 Reprogram ECM – OBD Readiness | — |
Protecting the PCM in Your 2006 Dodge Ram Truck (Cummins)
- Maintain a healthy charging system to avoid voltage spikes that can damage the PCM.
- Ensure all ground straps and connector pins are clean and securely fastened.
- Avoid jump‑starting the vehicle with excessive voltage that could overload the module.
- Promptly address any stored diagnostic trouble codes before they recur.
- Inspect and replace corroded connector seals to keep moisture out of the PCM housing.
- Regularly verify battery voltage stability during cold starts.
Frequently Asked Questions
Can a 2006 Dodge Ram Cummins run with a faulty PCM?
The vehicle may limp or refuse to start if the PCM cannot manage engine parameters. Some limited functions might remain, but full performance and emissions compliance are unlikely.
Do I need special tools to reset the PCM on a 2006 Dodge Ram?
A scan tool capable of accessing the Powertrain Control Module is required to write the VIN and mileage after replacement. No proprietary hardware beyond a standard OBD‑II interface is needed.
Is it safe to disconnect the ABS controller during PCM replacement?
Factory guidance recommends temporarily disconnecting the ABS controller to prevent VIN‑related trouble codes, so it is considered a safe and standard practice.
How long does a typical PCM replacement take on this truck?
Labor guides estimate about 0.3 hours for a reset and 0.5 hours for a relearn, not including time to remove the dash panel and disconnect the ABS controller.
Will a VIN‑programmed replacement avoid all post‑install steps?
The unit arrives with the correct VIN and mileage, eliminating the need to manually program those values, but confirming the programming with a scan tool is still advisable.
When the PCM fails, you can either have the original unit repaired or install a refurbished replacement. Both options restore engine control, but a replacement typically includes updated software and a fresh warranty. Considering the labor times and the need for VIN programming, a replacement from Flagship One often provides a quicker return to service.

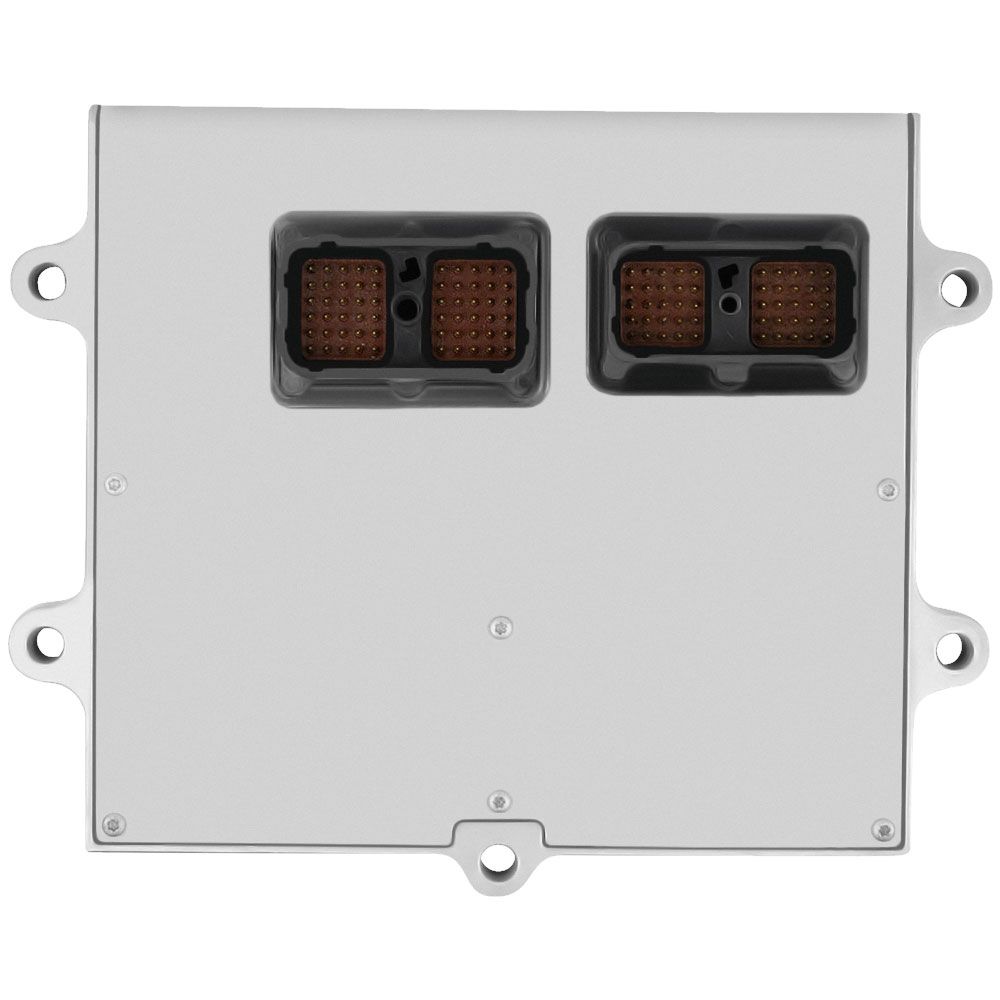

Flagship One stocks a refurbished, VIN-programmed PCM for the 2006 Dodge Ram Truck (Cummins) with a lifetime warranty, free shipping and no core charge. The full Dodge Ram Truck (Cummins) module lineup covers other engine configurations as well.
Final Thoughts
The 2006 Dodge Ram Cummins relies on a correctly programmed PCM for reliable operation. Whether you choose repair or replacement, ensuring the VIN and mileage are set will keep your truck running smoothly. Contact Flagship One for further assistance.
