2006 Chevrolet Malibu PCM/ECM Replacement and Common Issues
The powertrain control module (PCM) or engine control module (ECM) in your 2006 Chevrolet Malibu manages fuel, ignition, and emissions systems. Failure may cause drivability issues, warning lights, or prevent the engine from starting.
Quick Summary
- PCM/ECM controls critical engine and emissions functions in the 2006 Malibu 2.2L.
- Replacement typically requires 1.4 hours of labor plus 0.5 hours for relearn procedures.
- Factory procedure mandates capturing and restoring module data before removal.
- Common symptoms include stalling, no-start conditions, and internal trouble codes like P0601.
- Flagship One units arrive pre-programmed to your VIN, simplifying installation.
If your 2006 Chevrolet Malibu is experiencing unexplained stalling, a no-start condition, or an illuminated check engine light, the powertrain control module (PCM) or engine control module (ECM) may be at fault. These modules act as the brain of your vehicle’s engine and transmission systems, coordinating fuel delivery, ignition timing, and emissions controls. When they fail, symptoms can range from subtle drivability issues to complete engine shutdown. Understanding the role of these modules, how to replace them, and what to expect during the process can help you make informed decisions about repairs. This guide covers the essentials of PCM/ECM replacement for your Malibu, including labor times, programming requirements, and common symptoms of failure.
What the PCM Does in a 2006 Chevrolet Malibu
In your 2006 Chevrolet Malibu, the powertrain control module (PCM) and engine control module (ECM) are responsible for managing the engine’s performance and emissions systems. These modules process data from sensors throughout the vehicle to optimize fuel delivery, ignition timing, and exhaust gas recirculation. A malfunctioning module can disrupt these functions, leading to poor engine performance, increased emissions, or even a vehicle that won’t start. When replacement becomes necessary, you’ll need replacement engine computers for the Malibu that are compatible with your vehicle’s specifications. The PCM and ECM are often integrated or work in tandem, so addressing issues with either module typically involves similar diagnostic and replacement steps.

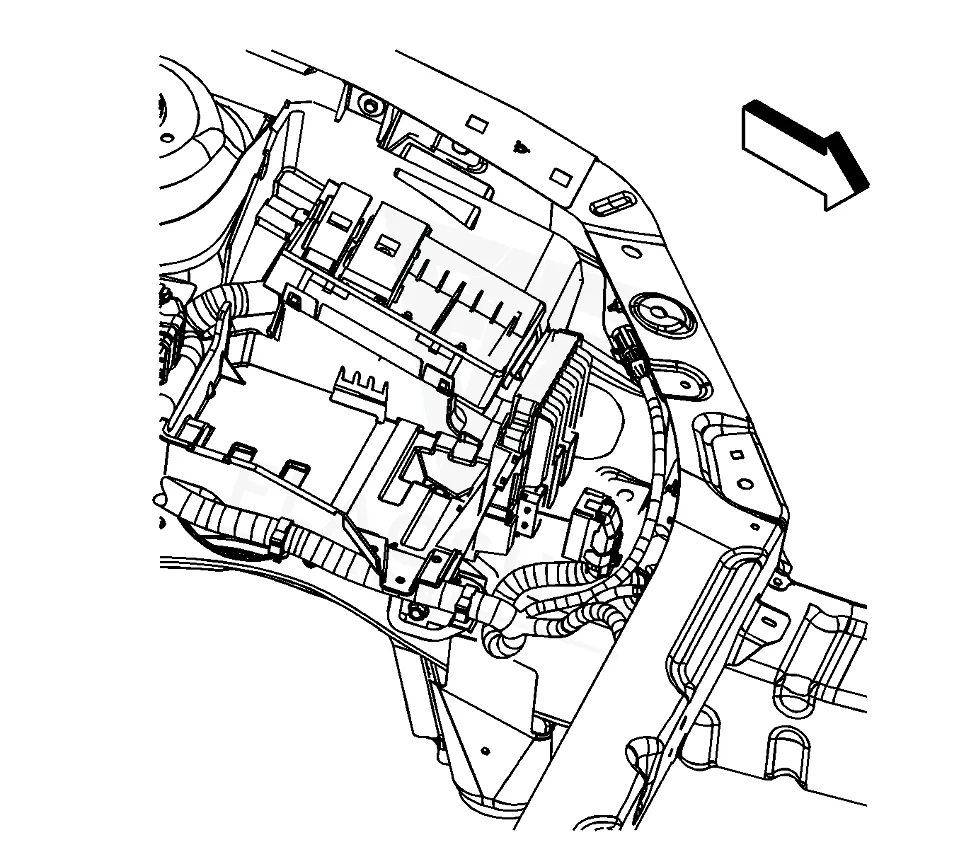

Where the PCM Is Located and What Replacement Involves
The PCM or ECM in your 2006 Chevrolet Malibu is typically located near the engine bay, though the exact position may vary. Replacing the module involves disconnecting the negative battery cable first, as outlined in the factory cautions. Once the battery is disconnected, the module can be removed by unbolting it from its mounting location and carefully disconnecting the wiring harness. The labor time for this procedure is estimated at 1.4 hours. After installation, a relearn procedure of 0.5 hours is required to ensure the new module communicates correctly with the vehicle’s systems. Always follow the factory torque specifications for fasteners to avoid damage or poor electrical connections.
How to Reach the PCM on the 2006 Chevrolet Malibu
- Remove any debris from around the control module connector.
- Disconnect the negative battery cable.
- Slide the lever lock to the up position in order to release the connector.
- Disconnect the body harness electrical connector from the engine control module (ECM).
- Slide the lever locks to the up position in order to release the connectors.
- Disconnect the engine harness electrical connectors from the ECM.
- Release the retaining tab located in the battery box lower half using a small screwdriver.
- Remove the ECM by lifting upward after releasing the tab.
- Slide the ECM into the ECM bracket on the front of the battery box.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 1.4 hr |
| Engine Control Module R&R | All configurations | 1.4 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
Before removing the PCM or ECM from your 2006 Chevrolet Malibu, the factory procedure requires using a scan tool to capture the existing module data. This data must then be restored into the new module to ensure proper vehicle operation. Additionally, a crankshaft relearn procedure is necessary to synchronize the engine’s timing with the new module. However, if you install a VIN-programmed replacement unit, these steps are already completed, saving you time and reducing the risk of programming errors. This pre-programming ensures the module is ready to integrate seamlessly with your Malibu’s systems right out of the box.
Symptoms of a Failing PCM
A failing PCM or ECM in your 2006 Chevrolet Malibu may cause a variety of symptoms. Common issues include intermittent stalling, a no-start condition, or the engine running poorly under load. You might also notice the check engine light illuminating, often accompanied by trouble codes stored in the vehicle’s computer. For example, a control module memory fault could indicate an internal failure within the module itself. Other symptoms may include rough idling, poor fuel economy, or transmission shifting problems. If your scan tool fails to communicate with the module, that’s another strong sign of a potential failure. Addressing these symptoms promptly can prevent further drivability issues.
Module Trouble Codes on the 2006 Chevrolet Malibu
The 2006 Chevrolet Malibu’s PCM or ECM may generate specific internal trouble codes when malfunctioning. These codes help pinpoint the source of the issue and guide repairs.
Factory Service Bulletins Worth Knowing
General Motors has issued several service bulletins addressing PCM-related issues in the 2006 Chevrolet Malibu. Bulletin #06-06-04-019 and its update #06-06-04-019A describe an intermittent check engine light with DTC P0171, indicating a lean fuel trim condition during low-speed driving after a hot soak. The recommended fix involves reprogramming the PCM. Another bulletin, #06-06-04-002 (updated as #06-06-04-002B), addresses multiple PCM codes P1404 and P0404, often linked to EGR valve issues. The solution includes installing an EGR valve kit and reprogramming the PCM. Bulletin #05-06-04-060 covers shared DTCs like P0601, P0602, and P1621 across multiple modules, which may require diagnostic attention.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 06-06-04-019 | L61 Intermittent MIL/SES, DTC P0171 Fuel Trim System Lean During Low Speed Driving Event After | — |
| 06-06-04-002 | Service Engine Soon (SES) Light Illuminated, Multiple Powertrain Control Module (PCM) Diagnosti | Some customers may comment on a Service Engine Soon (SES) light illuminated on the instrument cluster. Some vehicles may have previously been serviced for this… |
| 05-06-04-060 | Powertrain Control Module (PCM), Engine Control Module (ECM), Transmission Control Module (ECM) | — |
Protecting the PCM in Your 2006 Chevrolet Malibu
- Maintain a healthy charging system to avoid voltage spikes that can damage the module.
- Ensure all electrical grounds and connectors are clean and securely fastened.
- Avoid jump-starting the vehicle with improper voltage, as this can harm sensitive electronics.
- Address check engine lights or trouble codes promptly to prevent further damage.
- Keep the module and its connectors free from moisture and corrosion by checking seals regularly.
Frequently Asked Questions
Why does my 2006 Malibu stall intermittently after sitting in hot weather?
This issue is often linked to the PCM and may be addressed in GM service bulletin #06-06-04-019. The bulletin describes a lean fuel condition during low-speed driving after a hot soak, which can cause stalling. Reprogramming the PCM is typically the recommended solution.
What does DTC P0601 mean in my 2006 Chevrolet Malibu?
DTC P0601 indicates an internal memory fault within the PCM or ECM. This code suggests the module may be failing and could cause drivability issues like stalling or a no-start condition. Replacement and reprogramming are often required to resolve the issue.
Can I replace the PCM in my 2006 Malibu myself?
While it’s possible to replace the PCM yourself, the process requires capturing and restoring module data using a scan tool. Additionally, a crankshaft relearn procedure is necessary after installation. If you’re not comfortable with these steps, professional installation is recommended.
If your 2006 Chevrolet Malibu is experiencing PCM or ECM-related issues, you have options for repair. Replacing the module with a new or refurbished unit can restore proper engine function and drivability. Given the labor and programming requirements, choosing a pre-programmed replacement can simplify the process and reduce downtime. Consider the symptoms and diagnostic results to determine the best course of action for your vehicle.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2006 Chevrolet Malibu with a lifetime warranty, free shipping and no core charge. The full Chevrolet Malibu module lineup covers other engine configurations as well.
Final Thoughts
The PCM or ECM in your 2006 Chevrolet Malibu plays a critical role in engine performance and emissions control. If you’re facing symptoms like stalling, a no-start condition, or internal trouble codes, addressing the module promptly can prevent further issues. Whether you opt for a repair or replacement, understanding the process and requirements ensures a smoother experience. Keep your Malibu running reliably by staying informed and proactive about its maintenance.
