2005 Hummer H2 Powertrain Control Module Replacement Guide
The Powertrain Control Module in a 2005 Hummer H2 manages engine and transmission coordination. Failure typically results from internal circuit damage or corrupted software, leading to loss of power, erratic shifting, or communication errors with diagnostic tools.
Quick Summary
- Removal and reinstall usually require about 1.5 hours of labor per module.
- Factory cautions advise capturing PCM data before disconnection.
- Intermittent second‑gear launch issues may stem from PCM software.
- VIN‑programmed replacements eliminate the need for post‑install relearn.
When a 2005 Hummer H2 exhibits launch slip, low power, or related diagnostic codes, the Powertrain Control Module is a common culprit. This guide explains what the module does, how to access it, and what steps are needed after replacement. By following these points, you can understand the work involved and ensure the vehicle returns to normal operation.
What the PCM Does in a 2005 Hummer H2
In the H2, the Powertrain Control Module acts as the brain that synchronizes engine output with transmission actions, interpreting sensor data to select the appropriate gear. Its proper function is essential for smooth acceleration and reliable gear shifts. When the PCM fails, the vehicle may lose power or experience erratic shifting. Understanding this role helps you see why accurate replacement is critical, and it also guides you to suitable replacement powertrain control modules for the H2 when original parts are unavailable.
Where the PCM Is Located and What Replacement Involves
The PCM resides within the engine compartment, attached to the wiring harness. Access typically involves disconnecting the connector with the ignition off, as required to avoid internal damage. Labor time for removal and reinstall is listed as 1.5 hours, while a separate relearn step adds 0.5 hours. The Engine Control Module shares a similar process with 1.4 hours for removal and 0.5 hours for relearn. Both modules require careful handling of connectors to maintain data integrity.

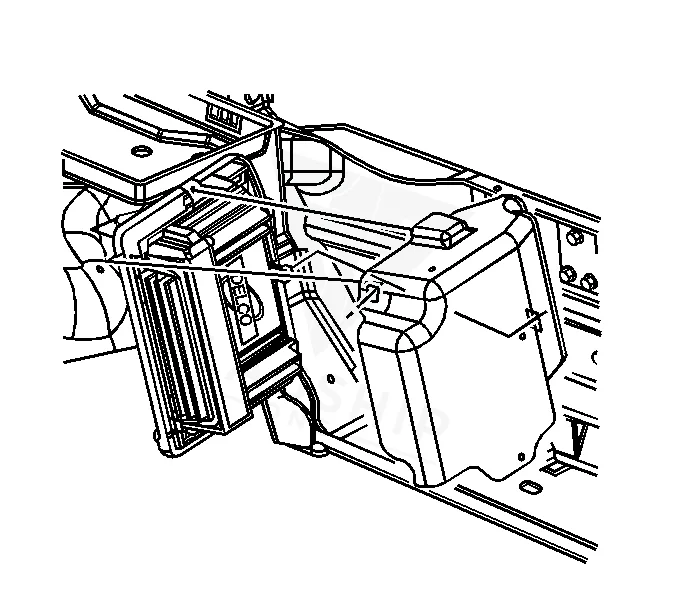

How to Reach the PCM on the 2005 Hummer H2
- Remove the faulty PCM and install the new service PCM.
- Remove any debris from around the control module connector.
- Release the PCM cover mounting holes away from the mounting tabs on the PCM mounting.
- Release the PCM cover from the mounting bracket.
- Remove the PCM cover.
- Loosen both PCM connector retaining bolts.
- Disconnect the PCM harness connectors.
- Release the spring latch from the PCM.
- Release the PCM mounting tabs from the PCM.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module R&R | All configurations | 1.4 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Powertrain Control Module R&R | All configurations | 1.5 hr |
Programming Requirements After Replacement
After installing a new PCM, the factory procedure calls for capturing the original module’s data with a scan tool before removal and then restoring that data to the new unit. Additionally, a Powertrain Control Module relearn of 0.5 hours is specified. Flagship One provides a a VIN-programmed replacement unit that already contains the required data, so those programming steps are completed before the part reaches you.
Symptoms of a Failing PCM
Typical signs of a failing PCM in a 2005 Hummer H2 include hesitation on launch, intermittent loss of power, and diagnostic trouble codes such as PCM communication fault P0601. Drivers may also notice unexpected gear changes or a complete no‑start condition when the module loses communication with the engine sensors.
Module Trouble Codes on the 2005 Hummer H2
The following trouble codes are documented for the 2005 Hummer H2 Powertrain Control Module:
Factory Service Bulletins Worth Knowing
Bulletin #05-07-30-013 (May 9, 2005) addresses intermittent second‑gear launch slip and low power, recommending PCM reprogramming. Bulletin #05-06-04-060 (Sep 23, 2005) covers shared DTCs P0601‑P0604, P1621 across PCM, ECM, and TCM, indicating the need for diagnostic attention.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 05-07-30-013 | 4L60-E/4L65-E Automatic Transmission Second Gear Start, Lack/Loss of Power When Accelerating fr | Some customers may comment on a slip on launch, low power on a launch or a second gear start when accelerating from a stop. This condition is usually very… |
| 05-06-04-060 | Powertrain Control Module (PCM), Engine Control Module (ECM), Transmission Control Module (ECM) | — |
Protecting the PCM in Your 2005 Hummer H2
- Maintain a healthy charging system to avoid voltage spikes.
- Ensure all ground connections are clean and secure.
- Use proper jump‑start procedures to protect electronic modules.
- Address diagnostic codes promptly before they recur.
- Inspect connector seals regularly to keep moisture out.
Frequently Asked Questions
What should I do if my 2005 Hummer H2 shows a P0601 code?
First verify the PCM connector is seated and the ignition is off when disconnecting. Capture the PCM data with a scan tool, then reinstall or replace the module and perform the required relearn.
Can I replace the PCM myself on a 2005 Hummer H2?
The job involves about 1.5 hours of labor and requires the ignition to be off when handling the connector. If you follow the factory cautions and have the proper tools, a DIY approach is possible.
Do I need special equipment to program a new PCM in the H2?
Factory procedure uses a scan tool to capture and restore data. A VIN‑programmed unit from Flagship One arrives with that data preloaded, eliminating the need for on‑site programming.
When the Powertrain Control Module needs service on a 2005 Hummer H2, you can choose between a repair that follows factory steps or a refurbished replacement that arrives ready for installation. Both options aim to restore proper engine‑transmission coordination while meeting the vehicle’s specifications.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2005 Hummer H2 with a lifetime warranty, free shipping and no core charge. The full Hummer H2 module lineup covers other engine configurations as well.
Final Thoughts
Replacing the PCM in your 2005 Hummer H2 can resolve launch slip and power loss issues. Consider a VIN‑programmed unit to simplify the post‑install process and get your H2 back on the road quickly.
