2005 GMC Savana PCM/ECM Replacement and Common Failure Signs
The powertrain control module (PCM) in your 2005 GMC Savana manages engine and transmission functions. Failures may cause erratic shifting, no-start conditions, or stored trouble codes related to internal memory or communication errors.
Quick Summary
- The PCM controls engine and transmission operations in the 2005 GMC Savana.
- Replacement typically requires 0.9 hours of labor, plus a 0.5-hour relearn procedure.
- Factory cautions include capturing PCM data before removal to restore to a new unit.
- Common symptoms include stalling, power loss, or stored internal trouble codes.
- Flagship One units arrive pre-programmed to your vehicle’s VIN, simplifying installation.
If your 2005 GMC Savana is experiencing unexplained stalling, poor acceleration, or warning lights on the dashboard, the powertrain control module (PCM) may be at fault. This critical component oversees engine and transmission performance, and its failure can disrupt drivability. Replacing the PCM involves careful handling to avoid damage and a mandatory relearn process to ensure proper function. Understanding the steps, symptoms, and precautions can help you address issues efficiently and avoid unnecessary repairs.
What the PCM Does in a 2005 GMC Savana
In your 2005 GMC Savana, the powertrain control module (PCM) acts as the brain for both the engine and transmission. It processes sensor data to optimize fuel delivery, ignition timing, and shift points, ensuring smooth operation. A faulty PCM may lead to poor performance, erratic shifting, or even a no-start condition. When replacement becomes necessary, using replacement engine computers for the Savana ensures compatibility and proper function, as these units are designed specifically for your vehicle’s systems.

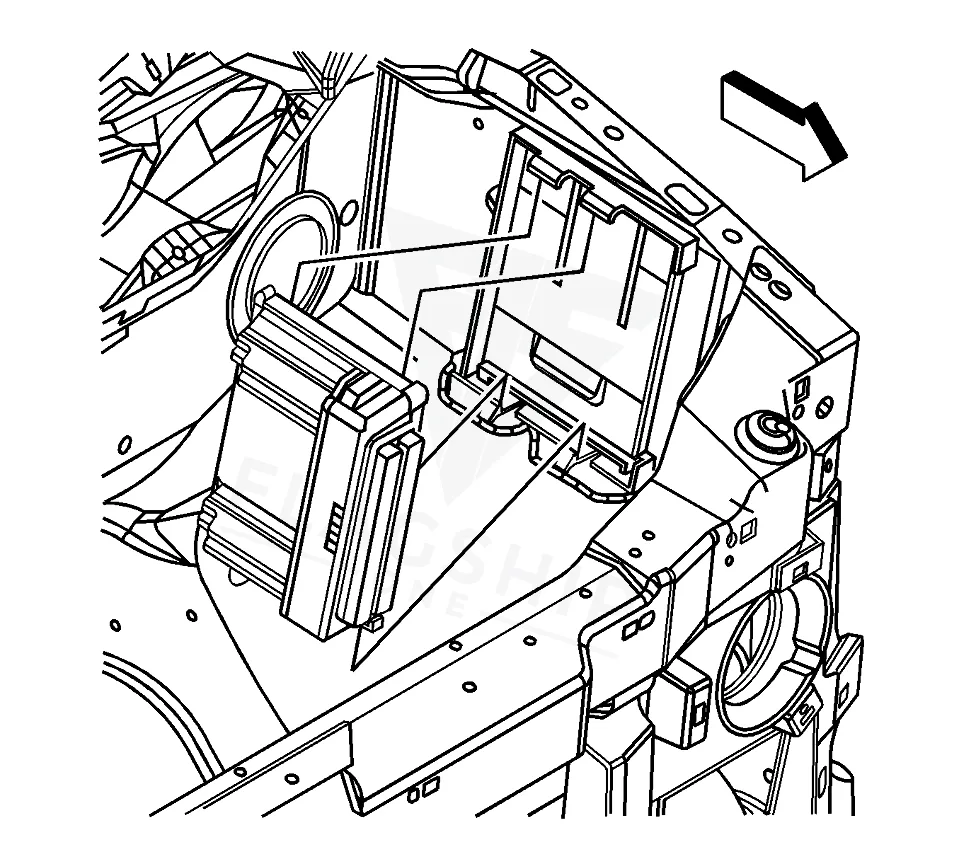

Where the PCM Is Located and What Replacement Involves
The PCM in your 2005 GMC Savana is typically located near the engine bay, often mounted on the firewall or inner fender. Replacing it involves disconnecting the battery, removing the electrical connectors, and carefully extracting the module to avoid damaging the circuit board. Labor time for removal and reinstallation is listed at 0.9 hours. After installation, a relearn procedure is required, which takes an additional 0.5 hours. This step ensures the new PCM synchronizes with the vehicle’s systems for proper operation.
How to Reach the PCM on the 2005 GMC Savana
- Remove the faulty PCM and install the new service PCM.
- Remove any debris from around the control module connector.
- Disconnect the negative battery cable.
- Disconnect the PCM harness connectors.
- Release the spring latch from the PCM.
- Lift the PCM from the PCM mounting tray.
- Remove the PCM from the engine compartment.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | 4.3L | 0.9 hr |
| Powertrain Control Module R&R | GAS | 0.9 hr |
| Powertrain Control Module Relearn | Savana 1500 | 0.5 hr |
| Powertrain Control Module Relearn | Savana 2500 | 0.5 hr |
| Powertrain Control Module Relearn | Savana 3500 | 0.5 hr |
| Engine Control Module Relearn | Savana 1500 | 0.5 hr |
| Engine Control Module Relearn | Savana 2500 | 0.5 hr |
| Engine Control Module Relearn | Savana 3500 | 0.5 hr |
Programming Requirements After Replacement
After installing a new PCM in your 2005 GMC Savana, the factory procedure requires capturing and restoring the original module’s data to the replacement unit. This step is critical for proper vehicle operation. However, a VIN-programmed replacement unit from Flagship One arrives pre-configured, eliminating the need for this additional programming step. This ensures your van is ready to drive once the physical installation and relearn process are complete.
Symptoms of a Failing PCM
A failing PCM in your 2005 GMC Savana may cause a range of issues, such as intermittent stalling, poor acceleration, or a no-start condition. You might also notice erratic shifting, particularly when accelerating from a stop, or warning lights on the dashboard. Internal faults often trigger trouble codes like an internal control module memory error, which can disrupt communication between the PCM and other vehicle systems. If your scan tool shows repeated module-related codes, the PCM may need attention.
Module Trouble Codes on the 2005 GMC Savana
The 2005 GMC Savana’s PCM may log specific internal trouble codes when faults occur. These codes often indicate issues with the module’s memory, processing, or communication functions. Addressing them promptly can prevent further drivability problems.
Factory Service Bulletins Worth Knowing
Factory service bulletins for the 2005 GMC Savana address specific PCM-related issues. Bulletin #05-07-30-013 notes that some drivers may experience a slip or lack of power when accelerating from a stop, often due to the transmission being commanded into second gear briefly before shifting to first. Another bulletin, #05-06-04-060, covers trouble codes P0601 through P0604 and P1621, which may appear in multiple modules and indicate shared internal faults.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 05-07-30-013 | 4L60-E/4L65-E Automatic Transmission Second Gear Start, Lack/Loss of Power When Accelerating fr | Some customers may comment on a slip on launch, low power on a launch or a second gear start when accelerating from a stop. This condition is usually very… |
| 05-06-04-060 | Powertrain Control Module (PCM), Engine Control Module (ECM), Transmission Control Module (ECM) | — |
Protecting the PCM in Your 2005 GMC Savana
- Keep your vehicle’s battery and charging system in good condition to avoid voltage spikes.
- Ensure all electrical connectors are clean and securely fastened to prevent corrosion or poor contact.
- Avoid jump-starting the vehicle with improper voltage, as this can damage sensitive electronics.
- Address any stored trouble codes promptly to prevent cascading issues.
- Inspect the PCM connector seals regularly to keep moisture out of the electrical system.
Frequently Asked Questions
How do I know if my 2005 GMC Savana’s PCM is failing?
Common signs include stalling, poor acceleration, or a no-start condition. You may also see warning lights or stored trouble codes like P0601 or P1621. A scan tool can help confirm if the PCM is the likely cause.
What is the labor time for replacing the PCM in my 2005 GMC Savana?
Replacement typically takes 0.9 hours, plus an additional 0.5 hours for the relearn procedure. This ensures the new module synchronizes properly with the vehicle’s systems.
Do I need to program a new PCM after installing it in my 2005 GMC Savana?
Yes, the factory procedure requires capturing and restoring the original PCM’s data to the new unit. However, a pre-programmed replacement from Flagship One eliminates this step, simplifying the process.
If your 2005 GMC Savana is showing signs of PCM failure, you have options. A repair may address minor issues, but a replacement ensures long-term reliability. Flagship One provides pre-programmed units designed specifically for your van, reducing downtime and ensuring proper function without additional programming steps.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2005 GMC Savana with a lifetime warranty, free shipping and no core charge. The full GMC Savana module lineup covers other engine configurations as well.
Final Thoughts
The 2005 GMC Savana relies on its PCM for smooth engine and transmission operation. If you’re experiencing stalling, power loss, or stored trouble codes, addressing the module promptly can restore performance. Whether you opt for a repair or replacement, understanding the process helps you make an informed decision for your vehicle.
