2005 Dodge Grand Caravan 3.3L PCM/ECM Guide – Symptoms & Replacement
The Powertrain Control Module (PCM) in your 2005 Dodge Grand Caravan 3.3L is the central computer that manages engine timing, fuel delivery, and transmission shifting. When it fails, the vehicle may not start, stall unexpectedly, or exhibit erratic drivability. Internal faults like P0600 or P0601 indicate module failure.
Quick Summary
- The PCM/ECM controls engine and transmission functions in the 2005 Grand Caravan 3.3L.
- Factory book time for PCM removal and replacement is 0.5 hours.
- A dealer relearn procedure also takes 0.5 hours after installation.
- Documented module-internal trouble codes include P0600 and P0601.
- Flagship One offers pre-programmed units that skip the dealer relearn step.
If your 2005 Dodge Grand Caravan 3.3L is experiencing no-start conditions, intermittent stalling, or transmission shifting problems, the Powertrain Control Module (PCM) may be at fault. This computer is the brain of your vehicle’s engine and transmission management system. Understanding what the PCM does, where it is located, and how to replace it can save you time and money. This guide covers the symptoms of a failing PCM, the replacement process using factory book times, and the programming requirements. You will also learn about the internal trouble codes that point directly to module failure. Whether you are a DIY owner or a professional technician, the information here will help you diagnose and resolve PCM-related issues for your Grand Caravan. We focus on the 3.3L engine variant, which is common in this model year.
What the PCM Does in a 2005 Dodge Grand Caravan
The Powertrain Control Module (PCM) in your 2005 Dodge Grand Caravan 3.3L is a single unit that combines the functions of an Engine Control Module (ECM) and a Transmission Control Module (TCM). It receives data from sensors such as the crankshaft position sensor, throttle position sensor, and oxygen sensors, then adjusts fuel injection timing, ignition spark, and transmission shift points to optimize performance and fuel economy. The PCM also monitors emissions systems and stores diagnostic trouble codes when a fault is detected. Because the Grand Caravan relies on this module for both engine and transmission control, a failure can cause a wide range of drivability issues. When the PCM fails internally, it often cannot be repaired and must be replaced. For owners seeking a reliable fix, replacement PCMs for the Grand Caravan are available that come pre-programmed to match your vehicle’s VIN and options, eliminating the need for a dealer visit.
Where the PCM Is Located and What Replacement Involves
The PCM in the 2005 Dodge Grand Caravan 3.3L is typically located in the engine compartment, mounted near the battery or on the passenger-side inner fender. Access may require removing the air intake duct or other components for clearance. According to factory labor times, removal and replacement of the PCM is a 0.5-hour job. The procedure involves disconnecting the battery, unplugging the electrical connectors, removing mounting bolts, and lifting the module out. Installation is the reverse, taking care to route wiring harnesses away from heat sources and moving parts. After the new PCM is installed, a dealer-level scan tool is needed to perform a PCM relearn, which also carries a 0.5-hour book time. This relearn procedure resets adaptive memory and allows the module to synchronize with the vehicle’s security system and transmission.
How to Reach the PCM on the 2005 Dodge Grand Caravan
- Disconnect the negative battery cable.
- Raise vehicle and support.

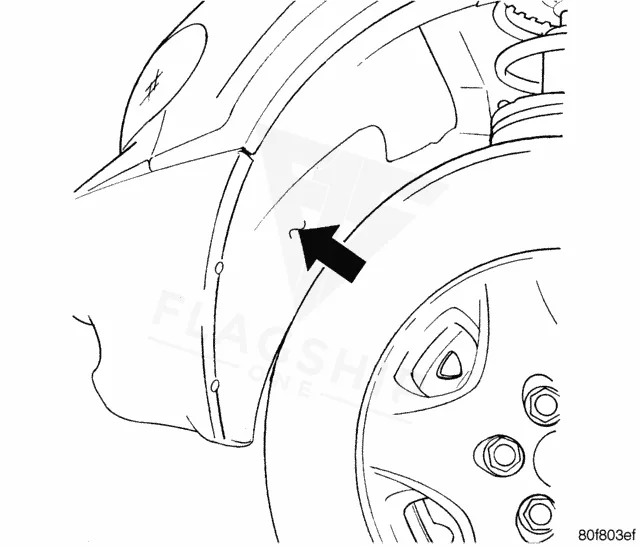

- Remove the left front wheel well splash shield ().
- Unlock and disconnect the electrical connectors ().
- Remove 3 screws from PCM to mounting bracket.
- Remove the PCM.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module Relearn | Grand Caravan | 0.5 hr |
| Engine Control Module Relearn | Caravan | 0.5 hr |
| Engine Control Module R&R | Grand Caravan | 0.5 hr |
| Engine Control Module R&R | Caravan | 0.5 hr |
| Powertrain Control Module Relearn | Grand Caravan | 0.5 hr |
| Powertrain Control Module Relearn | Caravan | 0.5 hr |
| Powertrain Control Module R&R | Grand Caravan | 0.5 hr |
| Powertrain Control Module R&R | Caravan | 0.5 hr |
Programming Requirements After Replacement
After replacing the PCM in your 2005 Dodge Grand Caravan 3.3L, the factory procedure requires a PCM relearn using a professional scan tool. This step takes 0.5 hours and involves initializing the module, programming the VIN, and performing a security key reset. Without this relearn, the vehicle may not start or may run poorly. However, a VIN-programmed replacement unit from Flagship One arrives with the correct calibration already loaded. This means the dealer relearn step is already completed, so you can install the module and start the engine immediately. The only remaining step is to perform a simple idle relearn procedure, which is often done by driving the vehicle through a specific cycle. This saves you the 0.5-hour labor charge and the inconvenience of scheduling a dealer appointment.
Symptoms of a Failing PCM
A failing PCM in the 2005 Dodge Grand Caravan 3.3L can produce a variety of symptoms. The most common is a no-start condition where the engine cranks but does not fire. You may also experience intermittent stalling while driving, rough idle, or hesitation during acceleration. Transmission shifting may become erratic, with harsh or delayed shifts. The check engine light may illuminate with codes such as P0600 (serial communication link failure) or internal control module memory checksum error. Other symptoms include the vehicle going into limp mode, where power is reduced, or the cooling fan running continuously. Scan tool communication may be lost entirely, indicating the module is not responding. If you notice any of these issues, especially if multiple codes point to internal module faults, the PCM likely needs replacement.
Module Trouble Codes on the 2005 Dodge Grand Caravan
The following module-internal trouble codes are documented for the 2005 Dodge Grand Caravan 3.3L. These codes indicate a failure within the PCM itself rather than a sensor or wiring issue.
| Code | Meaning | Full Guide |
|---|---|---|
| P0600 | Module-internal fault | Full P0600 guide → |
| P0601 | Internal memory checksum error | Full P0601 guide → |
Protecting the PCM in Your 2005 Dodge Grand Caravan
- Maintain a healthy charging system; replace the battery if it shows signs of weakness to avoid voltage spikes that can damage the PCM.
- Keep all ground connections and electrical connectors clean and tight, especially those near the PCM and battery.
- Avoid jump-starting the vehicle with a running donor car; instead, use a battery charger or follow proper jump-start procedures to prevent voltage surges.
- Address any diagnostic trouble codes promptly, especially those related to the PCM or communication, to prevent further damage.
- Inspect the PCM connector seals and housing for moisture or corrosion; replace the module if water intrusion is found.
- Use only high-quality replacement parts and avoid aftermarket modifications that could stress the PCM.
Frequently Asked Questions
How do I know if my 2005 Dodge Grand Caravan 3.3L PCM is bad?
Common signs include no-start, stalling, transmission shifting problems, and the check engine light showing codes P0600 or P0601. If the scan tool cannot communicate with the PCM, it is likely failed.
Can I replace the PCM in my 2005 Grand Caravan myself?
Yes, the replacement is straightforward with basic hand tools. The factory book time is 0.5 hours. However, you will need a professional scan tool for the relearn procedure unless you purchase a pre-programmed unit.
What does the PCM relearn involve for a 2005 Dodge Grand Caravan?
The relearn procedure uses a dealer-level scan tool to program the VIN, reset security codes, and initialize adaptive transmission and engine parameters. It takes about 0.5 hours according to factory labor times.
Will a used PCM from a junkyard work in my 2005 Grand Caravan?
A used PCM may work, but it must be reprogrammed to match your vehicle’s VIN and options. This requires a dealer visit. A pre-programmed new or refurbished unit is often more reliable and saves the programming step.
What are the internal trouble codes P0600 and P0601 for my Grand Caravan?
P0600 indicates a serial communication link failure within the PCM, while P0601 is an internal control module memory checksum error. Both point to a defective module that needs replacement.
When your 2005 Dodge Grand Caravan 3.3L needs a new PCM, you have two main options: have a dealer install a factory unit and perform the relearn, or purchase a refurbished or new module that comes pre-programmed. The latter saves you the 0.5-hour relearn labor and gets your van back on the road faster. Flagship One specializes in VIN-programmed PCMs for this model, ensuring a direct fit without extra steps.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2005 Dodge Grand Caravan with a lifetime warranty, free shipping and no core charge. The full Dodge Grand Caravan module lineup covers other engine configurations as well.
Final Thoughts
The PCM in your 2005 Dodge Grand Caravan 3.3L is a critical component that controls engine and transmission operation. Recognizing symptoms like no-start, stalling, or transmission issues can lead to a timely replacement. With a 0.5-hour book time for removal and replacement, and a pre-programmed unit from Flagship One, you can avoid the dealer relearn and restore your van’s performance quickly.
