2005 Dodge Caravan PCM ECM Replacement Guide
The PCM (Powertrain Control Module) or ECM (Engine Control Module) in your 2005 Dodge Caravan with the 3.3L engine is the central computer that manages fuel injection, ignition timing, transmission shifting, and emissions. Failure can cause no-start, stalling, or drivability issues.
Quick Summary
- The PCM/ECM controls engine and transmission functions in your 2005 Dodge Caravan 3.3L.
- Common failure codes include P0600 (serial communication link) and P0601 (internal memory error).
- Book labor time for removal and replacement is 0.5 hours.
- A factory relearn procedure is required after installing a new module.
- Flagship One supplies VIN-programmed units that eliminate the need for dealer programming.
If your 2005 Dodge Caravan with the 3.3L engine is experiencing intermittent stalling, a no-start condition, or check engine lights with codes like P0600 or P0601, the Powertrain Control Module (PCM) or Engine Control Module (ECM) may be failing. This guide explains what the module does, where it is located, what replacement involves, and how to get your Caravan back on the road without unnecessary downtime. You will learn the common symptoms of a bad PCM, the labor time required for replacement, and the factory relearn procedure that follows. Understanding these details helps you make an informed decision about repairing or replacing the module. The 2005 Dodge Caravan relies on this computer to coordinate fuel delivery, ignition timing, transmission shift points, and emissions controls. When the module fails, the vehicle may not start, may run poorly, or may set diagnostic trouble codes that point to internal module faults. This article covers everything you need to know about the PCM/ECM in your 2005 Dodge Caravan 3.3L, from diagnosis to replacement options.
What the PCM Does in a 2005 Dodge Caravan
The Powertrain Control Module (PCM) in your 2005 Dodge Caravan 3.3L is the primary computer that manages the engine and transmission. It receives input from sensors such as the crankshaft position sensor, throttle position sensor, and oxygen sensors, then adjusts fuel injector pulse width, ignition timing, and transmission shift solenoids to maintain performance and emissions compliance. The PCM also communicates with other modules on the vehicle’s network, such as the body control module and the instrument cluster. When the PCM fails, it can lose communication with these modules, set internal fault codes like P0600 (serial communication link malfunction) or P0601 (internal control module memory check sum error), and cause drivability problems. In the 2005 Dodge Caravan, the PCM is a single unit that controls both engine and transmission functions, so a failure can affect starting, shifting, and overall drivability. If you need a replacement, you can find replacement PCMs for the 2005 Dodge Caravan that are pre-programmed to match your vehicle’s VIN and options, saving time and avoiding dealer visits.
Where the PCM Is Located and What Replacement Involves
The PCM/ECM in the 2005 Dodge Caravan 3.3L is typically located in the engine compartment, often mounted near the battery tray or the air filter housing. Replacement begins by disconnecting the negative battery cable to prevent electrical shorts. Then, the electrical connectors are unclipped, and the mounting bolts are removed to free the module. The book labor time for removal and replacement of the Engine Control Module or Powertrain Control Module on both the Caravan and Grand Caravan is 0.5 hours. This time includes accessing the module, disconnecting the harness, removing the old unit, and installing the new one. After installation, the battery is reconnected, and the system is checked for proper operation. No special tools are required beyond basic hand tools, but care must be taken to avoid damaging the connector pins or the module housing.
How to Reach the PCM on the 2005 Dodge Caravan
- Disconnect the negative battery cable.
- Raise vehicle and support.

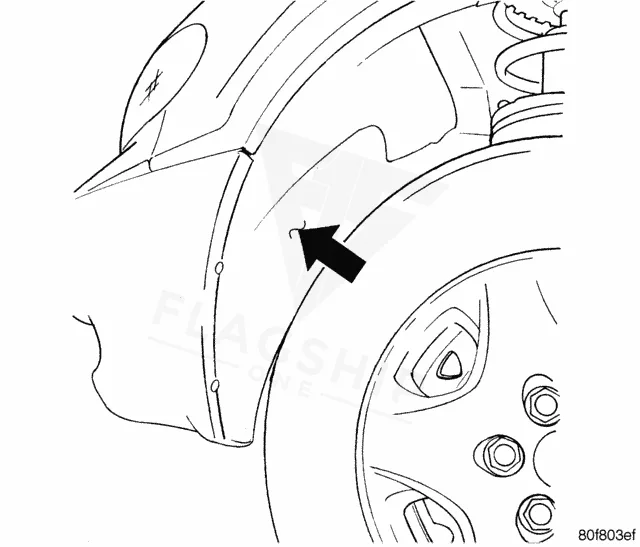

- Remove the left front wheel well splash shield ().
- Unlock and disconnect the electrical connectors ().
- Remove 3 screws from PCM to mounting bracket.
- Remove the PCM.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module Relearn | Grand Caravan | 0.5 hr |
| Engine Control Module Relearn | Caravan | 0.5 hr |
| Engine Control Module R&R | Grand Caravan | 0.5 hr |
| Engine Control Module R&R | Caravan | 0.5 hr |
| Powertrain Control Module Relearn | Grand Caravan | 0.5 hr |
| Powertrain Control Module Relearn | Caravan | 0.5 hr |
| Powertrain Control Module R&R | Grand Caravan | 0.5 hr |
| Powertrain Control Module R&R | Caravan | 0.5 hr |
Programming Requirements After Replacement
After replacing the PCM/ECM in your 2005 Dodge Caravan 3.3L, the factory procedure requires a relearn process. The book labor time for an Engine Control Module Relearn or Powertrain Control Module Relearn is 0.5 hours. This relearn typically involves using a scan tool to program the module with the vehicle’s VIN, immobilizer data, and other configuration parameters. Without this step, the new module may not communicate properly with the rest of the vehicle, and the engine may not start or may run poorly. Flagship One offers a VIN-programmed replacement unit that arrives ready to install. Because the module is already programmed with your vehicle’s specific VIN and options, the factory relearn procedure is already completed. This eliminates the need for a dealer visit or a separate programming session, saving you time and money.
Symptoms of a Failing PCM
A failing PCM/ECM in a 2005 Dodge Caravan 3.3L can produce a variety of symptoms. The engine may crank but not start, or it may start and then stall shortly after. You might notice erratic transmission shifting, such as harsh shifts or failure to shift at all. The check engine light may illuminate with codes like P0600 (serial communication link malfunction) or P0601 (internal control module memory check sum error). Other symptoms include intermittent stalling while driving, poor fuel economy, hesitation during acceleration, and the engine running rough or misfiring. The vehicle may also fail to communicate with a scan tool, indicating a loss of module function. If you experience any of these issues, especially if the P0601 internal memory error appears, the PCM/ECM is a likely suspect. Prompt diagnosis and replacement can prevent further drivability problems.
Module Trouble Codes on the 2005 Dodge Caravan
The following diagnostic trouble codes are documented for the 2005 Dodge Caravan 3.3L PCM/ECM. These codes indicate internal module faults that often require module replacement.
| Code | Meaning | Full Guide |
|---|---|---|
| P0600 | Module-internal fault | Full P0600 guide → |
| P0601 | Internal memory checksum error | Full P0601 guide → |
Protecting the PCM in Your 2005 Dodge Caravan
- Maintain a healthy charging system; voltage spikes from a failing alternator can damage the PCM.
- Keep battery terminals and ground connections clean and tight to ensure stable voltage.
- Avoid jump-starting the vehicle with a running donor car; connect cables only with both engines off.
- Address any check engine light or drivability code promptly to prevent secondary damage.
- Inspect the PCM connector seals and housing for moisture or corrosion; keep the area dry.
- Use only a quality battery that meets the vehicle’s cold cranking amp specification.
Frequently Asked Questions
What is the difference between PCM and ECM on a 2005 Dodge Caravan?
On the 2005 Dodge Caravan 3.3L, the terms PCM (Powertrain Control Module) and ECM (Engine Control Module) are often used interchangeably. The module controls both engine and transmission functions, so it is technically a PCM. Some service information may refer to it as an ECM, but the function and replacement procedure are the same.
Can I replace the PCM in my 2005 Dodge Caravan myself?
Yes, replacement is straightforward with basic hand tools. The book labor time is 0.5 hours. You will need to disconnect the battery, unplug the connectors, remove mounting bolts, and install the new module. However, the new module must be programmed with your vehicle’s VIN and settings. A pre-programmed unit from Flagship One eliminates that step.
How do I know if my 2005 Dodge Caravan PCM is bad?
Common signs include a no-start condition, stalling, erratic shifting, and check engine light codes such as P0600 or P0601. If the module fails to communicate with a scan tool, that is a strong indicator. These symptoms point to an internal module fault rather than a sensor or wiring issue.
Do I need to program a new PCM for my 2005 Dodge Caravan?
Yes, a new PCM requires a factory relearn procedure to match the vehicle’s VIN, immobilizer, and other parameters. The book time for this relearn is 0.5 hours. Flagship One provides VIN-programmed units that arrive ready to install, so no additional programming is needed.
What does code P0601 mean on a 2005 Dodge Caravan?
Code P0601 indicates an internal control module memory check sum error. This means the PCM’s internal memory has failed a self-test. It is a definitive sign that the module is faulty and needs replacement. The code will not clear until the module is replaced.
When your 2005 Dodge Caravan 3.3L needs a PCM or ECM, you have two main options: have a shop repair the existing module (which may not be reliable) or replace it with a new or refurbished unit. Flagship One offers pre-programmed replacement modules that match your vehicle’s VIN and options, so you can install them yourself or with a mechanic and avoid the dealer’s programming fees. The 0.5-hour book time for replacement makes this a quick repair.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2005 Dodge Caravan with a lifetime warranty, free shipping and no core charge. The full Dodge Caravan module lineup covers other engine configurations as well.
Final Thoughts
The PCM/ECM in your 2005 Dodge Caravan 3.3L is a critical component that controls engine and transmission operation. When it fails, symptoms like no-start, stalling, and codes P0600 or P0601 appear. Replacement is straightforward with a 0.5-hour book time, and a pre-programmed unit from Flagship One eliminates the need for a separate relearn procedure, getting your Caravan back on the road quickly.
