2005 Buick Rendezvous ECM Replacement and PCM Repair Guide

If your 2005 Buick Rendezvous has developed a no-start condition or is displaying a Service Engine Soon light with internal diagnostic trouble codes, the engine control module may be the culprit. The ECM (also called PCM on some GM vehicles) is the central computer that manages your 3.6L engine’s fuel delivery, ignition timing, emissions systems, and transmission shifting. When internal memory faults occur, you may experience starting problems, stalling, poor acceleration, or complete loss of communication with scan tools. This guide explains what the module does, where it’s located, the factory replacement procedure, and how Flagship One units simplify the repair by arriving pre-programmed to your vehicle’s VIN.

What the PCM Does in a 2005 Buick Rendezvous

The engine control module in your 2005 Buick Rendezvous with the 3.6L engine is the primary computer responsible for managing powertrain operations. It monitors inputs from numerous sensors and adjusts fuel injector pulse width, ignition timing, exhaust gas recirculation, and torque converter clutch application in real time to maintain optimal performance and emissions. This module also stores replacement engine computers for the Rendezvous and monitors its own internal memory integrity. When the ECM detects a fault in its internal memory registers, it may store trouble codes (such as P0601 through P0604) and illuminate the Service Engine Soon lamp. In severe cases, the module may fail to communicate with diagnostic tools or prevent the engine from starting altogether. The module interfaces with the theft deterrent system and must be programmed with vehicle-specific calibration data to function properly.

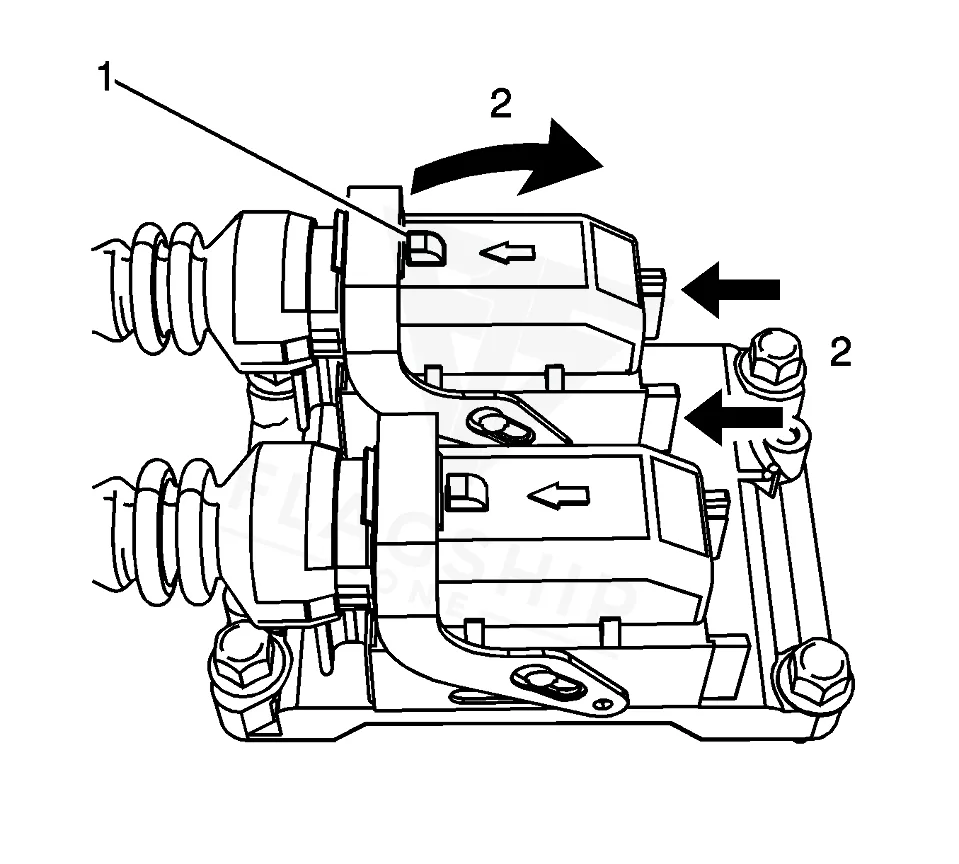

Where the PCM Is Located and What Replacement Involves

The engine control module on your 2005 Buick Rendezvous is located behind the left side of the instrument panel, typically accessed by removing the lower left kick panel and the outboard ECM connector from the body harness. The factory procedure requires disconnecting the negative battery cable first, then removing the ECM from its mounting bracket after releasing the connector. When installing a replacement unit, you must ensure there is no main relay circuit voltage at the ECM fuse in the underhood fuse block—technicians use a DVOM to verify this before connecting the new module. The book time for ECM R&R on the 3.6L is 1.1 hours, and the powertrain control module relearn procedure adds 0.5 hours. Proper torque specifications for mounting hardware should be followed to secure the replacement module.

Programming Requirements After Replacement

After replacing the ECM on your 2005 Buick Rendezvous, the factory procedure requires using a scan tool to capture the existing ECM data before removal, then restoring that captured data into the new module. Additionally, special equipment with the correct program and calibration for this specific vehicle is required to complete the reprogramming process. However, when you purchase a replacement unit from Flagship One, you receive a VIN-programmed replacement unit that arrives ready to install, eliminating the need for dealer programming appointments and specialized tooling. The module is pre-loaded with the correct calibration for your 3.6L Rendezvous, so the only post-install step is performing the powertrain control module relearn procedure to allow the new module to adapt to your vehicle’s unique characteristics.

Symptoms of a Failing PCM

When the engine control module fails on your 2005 Buick Rendezvous, you may encounter several common symptoms. The vehicle may refuse to start or crank normally, or it could start and then stall unexpectedly. You might notice illumination of the Service Engine Soon light accompanied by multiple diagnostic trouble codes. In cases of internal memory failure, scan tools may display internal memory integrity failure codes or lose communication entirely with the module. Some owners report rough idle, hesitation during acceleration, or transmission shifting irregularities. The theft deterrent system may also trigger, preventing key recognition. If your vehicle exhibits any of these symptoms, particularly after other repairs have been attempted, the ECM itself may be the root cause.

Module Trouble Codes on the 2005 Buick Rendezvous

The 2005 Buick Rendezvous is documented to store several module-internal trouble codes that indicate various internal faults within the engine control module. These codes, ranging from P0601 through P0607 and extending to P1600 series codes, specifically relate to internal memory, processor, or communication pathway failures within the module itself rather than external sensor or wiring issues. When these codes appear, they typically indicate that the ECM has detected an internal fault that cannot be cleared through normal troubleshooting and suggests module replacement is necessary.

Factory Service Bulletins Worth Knowing

Factory service bulletins address several known issues with the powertrain control module on this vehicle. Bulletin #06-06-04-003 covers Service Engine Soon light illumination with DTCs P1404 and P0404, recommending EGR valve kit installation and PCM reprogramming. Bulletin #05-06-04-060 addresses shared DTCs P0601, P0602, P0603, P0604, and P1621 across multiple control modules including PCM, ECM, and TCM. Additionally, bulletin PIP3307B covers no-start conditions on 04-05 Cadillac CTS, SRX, STS, Buick Rendezvous, and LaCrosse models related to the theft deterrent system and VTD issues with DTC P1631.

Protecting the PCM in Your 2005 Buick Rendezvous

• Maintain proper charging system function—weak or failing batteries can cause voltage spikes that stress the ECM
• Ensure clean, tight ground connections at the engine and body to prevent electrical interference
• Avoid jump-starting from a vehicle with an unhealthy charging system, which can send voltage transients
• Address diagnostic trouble codes promptly rather than driving with the check engine light illuminated
• Keep ECM connectors sealed and free of corrosion—moisture intrusion can cause internal damage
• Use quality fuel and keep the emissions system clean to reduce unnecessary ECM stress

Frequently Asked Questions

Can I replace the ECM on my 2005 Buick Rendezvous myself?

While mechanically skilled DIYers can perform the physical replacement, the programming requirement typically necessitates dealer-level tooling or a pre-programmed unit from Flagship One. The physical R&R takes approximately 1.1 hours, plus 0.5 hours for relearn.

Will any used ECM work in my 2005 Rendezvous?

No—the ECM must be programmed with vehicle-specific calibration data and VIN matching to function. An unprogrammed unit will not communicate with your vehicle’s systems. Flagship One units arrive VIN-programmed for plug-and-play installation.

How do I know if my ECM is failing vs. having a wiring issue?

If scan tools cannot communicate with the module at all, or if internal trouble codes like P0601-P0604 are present, the ECM itself is likely faulty. External sensor issues typically set codes specific to those circuits rather than internal module codes.

When your 2005 Buick Rendezvous requires an engine control module replacement, you have two primary options: a new or refurbished unit from the dealer (which requires programming appointments and additional labor), or a VIN-programmed replacement unit from Flagship One that arrives ready to install. The pre-programmed approach saves you from dealer programming fees and gets your vehicle back on the road faster. Given the 1.1-hour book time for R&R plus relearn, the total physical labor is straightforward once you have the correct module.

Flagship One stocks a refurbished, VIN-programmed PCM for the 2005 Buick Rendezvous with a lifetime warranty, free shipping and no core charge. The full Buick Rendezvous module lineup covers other engine configurations as well.

Final Thoughts

The engine control module is the brain of your 2005 Buick Rendezvous, and when internal memory failures occur, the resulting symptoms can leave you stranded. Understanding the factory caution requirements—data capture before removal and voltage verification—helps you ensure proper service procedure whether you perform the work yourself or trust a professional. Flagship One eliminates the programming hassle by shipping a unit already configured to your vehicle’s VIN, making your repair more straightforward.
