2004 Scion xB Engine Control Module Replacement and Programming Guide
The engine control module manages fuel delivery and ignition timing in your 2004 Scion xB. Failure can cause stalling or no-start conditions. This computer processes sensor data to optimize performance. Replacement requires specific calibration to match your vehicle identification number for emissions compliance.
Quick Summary
- Labor times range from 0.5 hours to 0.6 hours for specific tasks.
- The engine ECU resides inside the instrument panel area.
- VIN writing is required to pass emissions inspections.
- Service bulletins SS003-07 and SS002-07 cover reprogramming procedures.
- Missing VIN data may trigger malfunction indicators.
When your 2004 Scion xB experiences electronic management issues, understanding the replacement process helps you make informed decisions regarding repairs. This guide explains the labor expectations, physical location, and critical programming steps associated with the engine computer system. You will learn about factory service bulletins and why vehicle identification number calibration matters for emissions compliance in your region. We avoid speculation and focus on documented procedures to ensure your vehicle returns to reliable operation without unnecessary delays. Proper handling of these sensitive components prevents future diagnostic headaches and ensures all onboard systems communicate correctly with each other. Technicians follow specific book times for removal and installation tasks to maintain consistency across service centers. Relearn procedures are also documented to reset adaptive memory stored within the new module. Knowing these details prepares you for detailed discussions with your service provider before work begins. You gain clarity on what the job entails beyond simple part swapping or physical installation. This knowledge empowers you to verify that all necessary steps were completed according to manufacturer standards. Ultimately, correct installation and calibration protect the longevity of your investment and ensure smooth performance.
What the PCM Does in a 2004 Scion xB
The engine control module serves as the central brain for managing fuel mixture and ignition timing in your 2004 Scion xB. It processes data from various sensors to optimize performance and reduce emissions during daily driving conditions consistently. Without proper function, the engine may struggle to start or run inefficiently under load. When searching for replacement engine computers for the 2004 Scion xB, you must ensure compatibility with your specific model year and configuration. This component regulates idle speed and manages transmission shifting points based on real-time input from multiple sources. Failure can lead to stalling or poor acceleration response from the powertrain system overall. The module stores adaptive learning values that tailor operation to your driving habits over time effectively. Replacement units require configuration to match your vehicle identification number for legal compliance with regulations. Ignoring this step may cause inspection failures in states with rigorous emissions testing programs annually. The computer also monitors onboard diagnostics to alert you of potential system faults via the dashboard. Maintaining this unit ensures your vehicle meets original factory performance specifications consistently throughout its service life. It coordinates with other control units to manage accessories and safety features integrated into the design. Proper function is essential for achieving rated fuel economy and power output levels expected.
Where the PCM Is Located and What Replacement Involves

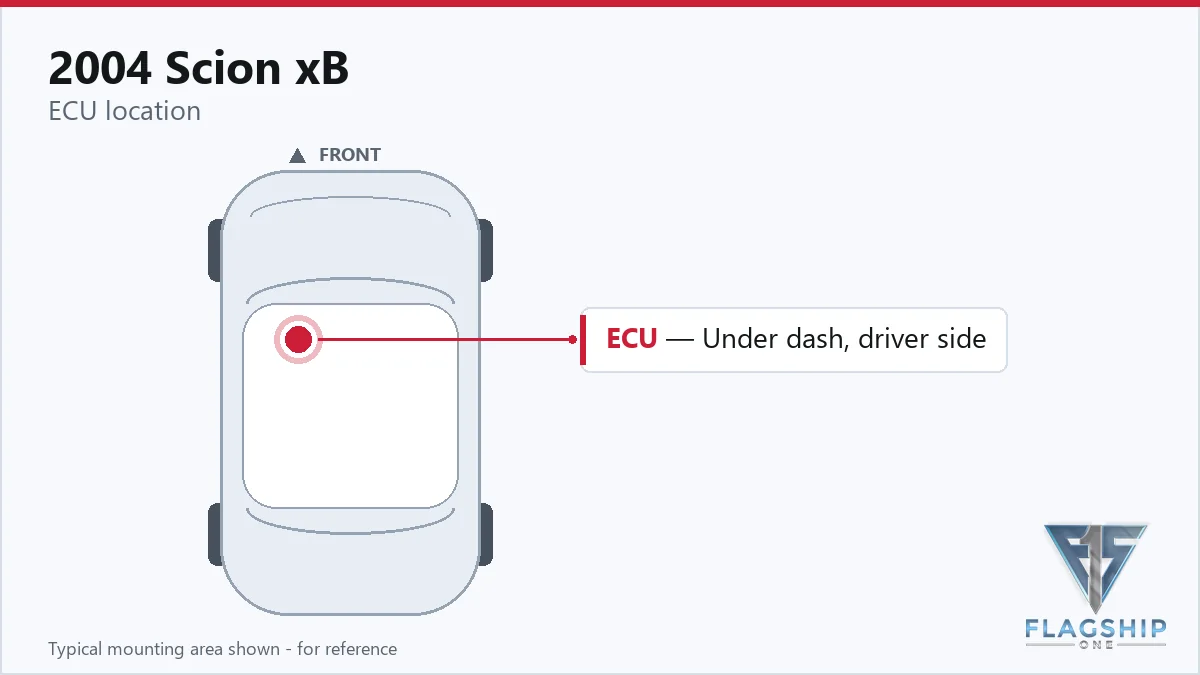

According to factory wiring documentation, the engine electronic control unit resides within the instrument panel area of your vehicle. Accessing this component typically involves removing interior trim pieces to reach the mounting location safely. Removing and installing the powertrain control module typically requires 0.6 hours of labor according to standard book times. Swapping the engine control module usually involves 0.6 hours of work for the physical replacement task. Completing the relearn procedure for the powertrain control module often takes 0.5 hours of additional time. Relearning procedures for the engine control module generally consume 0.5 hours to reset adaptive strategies. These times represent standard estimates and may vary based on technician experience or shop conditions. You should anticipate these durations when scheduling service appointments for your 2004 Scion xB. Proper torque specifications should be followed when securing mounting bolts to prevent vibration damage. Connectors must be seated firmly to ensure reliable electrical communication between the module and harness.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 0.6 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 0.6 hr |
Programming Requirements After Replacement
Factory guidance notes that omitting the vehicle identification number write procedure may trigger a malfunction indicator on the dashboard. The vehicle identification number should be entered following the diagnostic tester screen instructions precisely. If verification fails, the identification number must be rewritten until confirmation appears on the tool. Technicians must ensure the vehicle identification number is entered correctly to avoid compliance issues. Documentation revised on June 3, 2005, expanded coverage to cover 2004 and 2006 model years for these procedures. Using a VIN-programmed replacement unit eliminates the need for these complex onsite writing steps entirely. This ensures the module is ready for installation without additional diagnostic tool configuration time. Omitting the identification number may cause failure in state emissions inspection programs locally. For most similar model years, failure to write the VIN to the ECM may result in a malfunction warning. You should verify that the programming step is completed if using a non-programmed component.
Symptoms of a Failing PCM
Common signs of module failure include unexpected engine stalling while driving or difficulty starting the vehicle initially after parking. You might experience rough idling or hesitation during acceleration when the computer cannot process sensor data correctly. Dead scan-tool communication indicates the module is not responding to external diagnostic requests properly from your mechanic. Shifting issues may arise if the transmission control signals are interrupted by the faulty unit internally. Intermittent no-start conditions often point to internal power supply failures within the electronic control unit itself. Check engine lights may illuminate constantly or flash depending on the severity of the detected fault condition. Fuel economy can drop significantly if the module defaults to a limp-home operating mode for protection. Loss of power steering assistance or cooling fan operation may occur if communication networks fail completely. These symptoms suggest the need for thorough electrical testing before condemning the computer itself unnecessarily. Wiring harness integrity should be verified to rule out external causes for these performance problems first. Corrosion on connectors can mimic internal module failures and should be inspected carefully during diagnosis. Persistent misfires without mechanical cause often trace back to ignition timing errors from the computer.
Factory Service Bulletins Worth Knowing
Service bulletin SS003-07 outlines flash reprogramming steps for Scion models from 2004 through 2008 specifically. Bulletin SS002-07 details similar reprogramming procedures for Toyota vehicles spanning 2001 to 2008 generally. These documents provide authorized methods for updating software within the engine control unit safely. Technicians refer to these guides when addressing drivability concerns related to calibration software versions. Following these procedures ensures the vehicle operates with the latest factory-approved management strategies available. Compliance with these bulletins may be required to resolve specific performance complaints effectively.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| SS003-07 | :SS003-07: 04-08 Applicable Scion: Techstream ECU Flash Reprogramming Procedure | — |
| SS002-07 | :SS002-07: 01-08 Applicable Toyota: Techstream ECU Flash Reprogramming Procedure | — |
Protecting the PCM in Your 2004 Scion xB
- Maintain charging-system health to prevent voltage spikes that damage sensitive electronics.
- Keep grounds and connectors clean to ensure reliable signal transmission throughout the harness.
- Avoid jump-start voltage spikes by connecting cables correctly and using surge-protected equipment.
- Address diagnostic codes promptly to prevent cascading failures in related engine management systems.
- Keep connector seals intact to protect against moisture intrusion and corrosion over time.
- Inspect wiring harnesses regularly for chafing or damage near hot engine components.
Frequently Asked Questions
How do I know if my 2004 Scion xB needs a new ECM?
Persistent no-start conditions or communication errors with scan tools often indicate module failure. Professional diagnosis is recommended to rule out wiring issues before replacement.
Can I install the replacement module myself without programming tools?
Physical installation is possible, but VIN writing requires specialized diagnostic equipment. Using a pre-programmed unit simplifies this process significantly for DIY repairs.
Will a used ECM work without reprogramming the VIN?
No, the vehicle identification number must match the car to pass emissions inspections. Missing VIN data can trigger malfunction indicators and inspection failures.
What labor time should I expect for this replacement job?
Book times suggest 0.6 hours for removal and installation plus 0.5 hours for relearn procedures. Total time may vary based on shop rates and access.
Where is the engine computer located in my vehicle?
Factory wiring documentation indicates the engine electronic control unit resides within the instrument panel area. Access requires removing interior trim pieces carefully.
Repairing your existing module is an option, but refurbished replacements offer verified functionality. Choosing a pre-configured unit saves time on onsite programming steps. This approach reduces labor costs and ensures immediate compatibility with your 2004 Scion xB. You avoid the risk of incomplete calibration during the installation process.

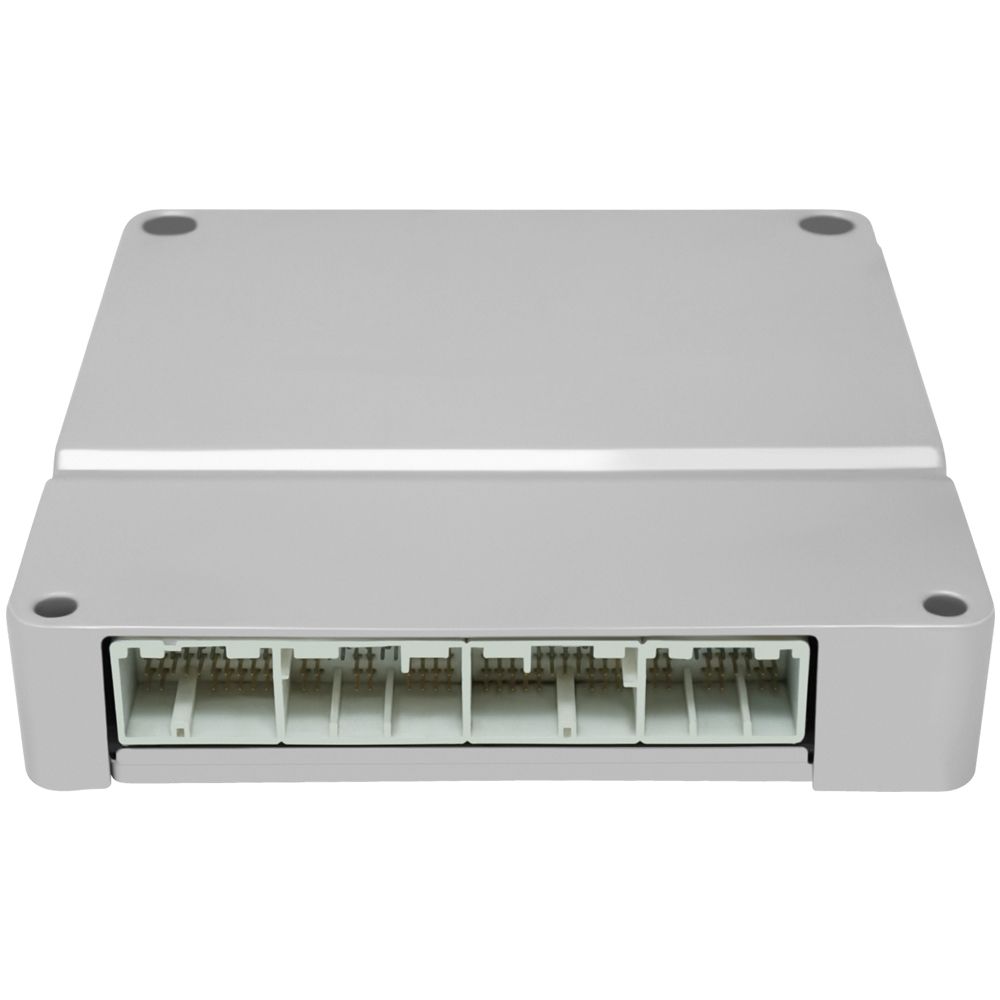

Flagship One stocks a refurbished, VIN-programmed PCM for the 2004 Scion xB with a lifetime warranty, free shipping and no core charge. The full Scion xB module lineup covers other engine configurations as well.
Final Thoughts
Replacing the engine computer in your 2004 Scion xB requires attention to labor times and programming details. Understanding these factors helps you manage repair expectations effectively. Proper calibration ensures your vehicle meets emissions standards and runs smoothly. Consider your options carefully to restore reliable performance.
