2004 Pontiac Sunfire 2.2L PCM Replacement Guide
In the 2004 Pontiac Sunfire 2.2L, the Powertrain Control Module (PCM) manages engine timing, fuel injection, and communication with other control units. When it fails, the vehicle may stall, misfire, or lose power.
Quick Summary
- Engine Control Module replacement takes 0.8 hours.
- Powertrain Control Module relearn takes 0.5 hours.
- Reinstalling the PCM requires the ignition off.
- Do not touch PCM connector pins to avoid ESD damage.
When a 2004 Pontiac Sunfire 2.2L starts to exhibit erratic behavior—such as stalling, misfires, or a complete loss of power—the Powertrain Control Module (PCM) is a common culprit. The PCM sits at the heart of the vehicle’s engine management, translating sensor data into precise fuel and ignition commands. Replacing a faulty PCM restores reliable operation, but it requires careful handling to prevent further damage. This guide walks you through the steps to locate, remove, install, and program a new PCM, while highlighting safety cautions and typical symptoms so you can identify the issue early. By following these instructions, you’ll gain confidence in troubleshooting engine control problems and ensure your Sunfire runs smoothly again.
What the PCM Does in a 2004 Pontiac Sunfire
The PCM in a 2004 Pontiac Sunfire 2.2L is the central brain that coordinates engine functions such as fuel delivery, ignition timing, and emissions control. It receives data from sensors—engine speed, throttle position, coolant temperature—and uses that information to command actuators. When the PCM malfunctions, the engine may misfire, stall, or fail to start, because the timing and fuel maps become unreliable. 2004 Pontiac Sunfire 2.2L PCM replacement The module also communicates with other control units, ensuring that accessories like the transmission and airbags receive correct data. A failure in the PCM disrupts this communication, leading to diagnostic trouble codes and loss of performance.
Where the PCM Is Located and What Replacement Involves

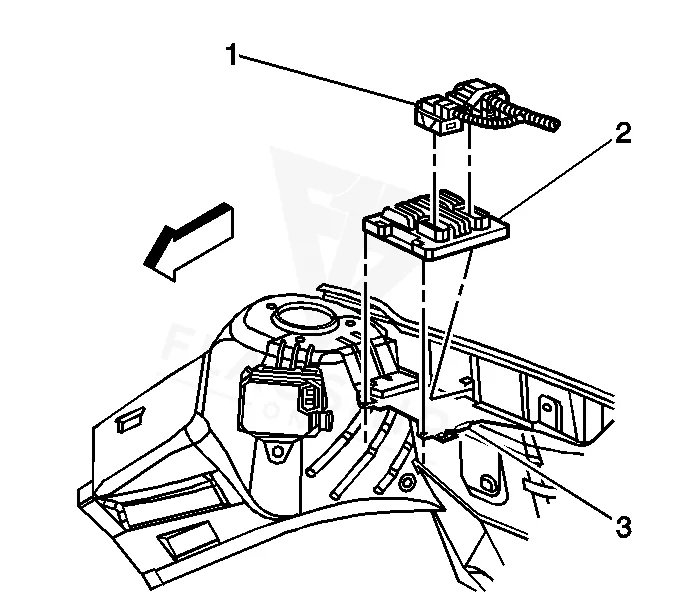

The PCM is located inside the engine bay, mounted near the firewall, connected to the vehicle’s wiring harness. To remove it, first shut off the ignition and disconnect the battery to avoid electrical shock. Carefully detach the PCM connector, making sure the ignition remains off to prevent internal damage. The replacement process follows the same steps in reverse, with a book time of 0.8 hours for removal and 0.8 hours for reinstall. The relearn procedure for the Powertrain Control Module requires 0.5 hours, during which the engine’s crankshaft position system variation is recalibrated.
How to Reach the PCM on the 2004 Pontiac Sunfire
- Disconnect the negative battery cable.
- Press the PCM retaining tab.
- Lift the PCM from the PCM.
- Remove the new PCM from the packaging and inspect the service.
- Position system variation learn procedure must be performed.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module R&R | All configurations | 0.8 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Powertrain Control Module R&R | All configurations | 0.8 hr |
Programming Requirements After Replacement
After installing a new PCM, the factory requires a relearn procedure that updates the crankshaft position system variation. Because Flagship One PCM units arrive VIN-programmed, the relearn step is already completed during manufacturing, eliminating the need for a post-install calibration. This means you can power up the vehicle immediately after installation without running the relearn sequence. VIN-programmed replacement unit for the correct application.
Symptoms of a Failing PCM
A failing PCM in the 2004 Pontiac Sunfire 2.2L can manifest in several ways. Drivers may notice a sudden loss of power, stalling while cruising, or difficulty starting the engine. Misfires and rough idling are common, and the onboard diagnostic system may lock the transmission into a limp mode, causing a noticeable shift delay. If the PCM loses communication entirely, the scan tool will display a dead connection, and the vehicle may emit a wide array of codes. One such code, PCM Internal Processor Fault, signals that the PCM’s internal processor has encountered an error, often leading to the symptoms described above.
Module Trouble Codes on the 2004 Pontiac Sunfire
The codes below point to the PCM itself rather than to a sensor or circuit it monitors. Each one links through to its full diagnostic guide.
Protecting the PCM in Your 2004 Pontiac Sunfire
- Keep the battery’s charging system healthy to avoid voltage spikes.
- Ensure all PCM connectors are clean and free of corrosion.
- Avoid exposing the PCM to excessive heat or moisture.
- Use a proper ground strap when working on the engine bay.
- Address any diagnostic codes promptly to prevent further damage.
- Inspect connector seals and gaskets regularly for integrity.
Frequently Asked Questions
What diagnostic tools do I need to read the PCM codes on my 2004 Pontiac Sunfire 2.2L?
A standard OBD-II scan tool that supports powertrain diagnostics is sufficient. It will read the PCM-specific codes and provide a clear indication of any internal faults.
Can I replace the PCM in my 2004 Pontiac Sunfire 2.2L without reprogramming it?
Yes, because Flagship One PCM units are VIN-programmed, the new module is ready to use immediately after installation, eliminating the need for an aftermarket reprogramming step.
How long does the relearn procedure take after a new PCM is installed?
The relearn procedure for the crankshaft position system variation typically takes about 0.5 hours, but with a VIN-programmed unit this step is already completed.
What should I do if the engine stalls after installing a new PCM?
Check the PCM connector for proper seating, ensure the battery is fully charged, and verify that the relearn procedure has completed successfully.
Is it safe to drive my 2004 Pontiac Sunfire 2.2L immediately after a PCM replacement?
After the installation and the optional relearn, the vehicle can be driven. However, it is advisable to monitor performance for a few minutes to ensure the new PCM is operating correctly.
Replacing the PCM in your 2004 Pontiac Sunfire 2.2L can restore reliable performance and eliminate troublesome engine codes. If you prefer a quick fix, a refurbished replacement unit from Flagship One offers a cost-effective alternative to a full OEM rebuild. Both options provide the same level of functionality, but a refurbished unit may reduce labor and warranty time.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2004 Pontiac Sunfire with a lifetime warranty, free shipping and no core charge. The full Pontiac Sunfire module lineup covers other engine configurations as well.
Final Thoughts
A 2004 Pontiac Sunfire 2.2L with a faulty PCM can experience a range of performance issues. By understanding the module’s role, following the correct replacement steps, and ensuring proper programming, you can bring your vehicle back to full functionality. Consider the options available and choose the approach that best fits your needs.
