2004 Ford Explorer Powertrain Control Module Replacement and Function
Within your 2004 Ford Explorer, the powertrain control module acts as the central processing unit for engine and transmission management. When this module malfunctions, it can disrupt critical vehicle functions, leading to a range of operational problems.
Quick Summary
- The powertrain control module is located on the right side of the engine.
- Replacing the module requires approximately 0.6 hours of labor.
- A relearn procedure is necessary after module replacement.
- Flagship One modules arrive pre-programmed with your vehicle’s VIN.
- Addressing powertrain control module issues promptly helps maintain vehicle reliability.
If you’re encountering unusual engine behavior in your 2004 Ford Explorer, a failing powertrain control module could be the cause. This module, often referred to as the engine control module, manages numerous engine and transmission functions. Understanding its role and the steps involved in replacement can help you make informed decisions about repairs. This guide provides a clear overview of the module’s function, location, replacement procedures, and essential programming requirements.
What the PCM Does in a 2004 Ford Explorer
<h2>What Does the Powertrain Control Module Do?</h2> The powertrain control module in your 2004 Ford Explorer monitors and regulates engine operations, including fuel injection, ignition timing, and idle speed. It also communicates with the transmission to ensure smooth shifting and optimal performance. The module receives data from various sensors throughout the engine and transmission, processes this information, and adjusts engine parameters accordingly. This process ensures efficient operation and minimizes emissions. When considering a replacement, understanding that various Ford Explorer engine computers are available is crucial for ensuring compatibility and proper function.
Where the PCM Is Located and What Replacement Involves
The factory component-location index specifies that the powertrain control module for your 2004 Ford Explorer is situated on the engine bulkhead, specifically on the right side. Replacement involves disconnecting electrical connectors and removing mounting hardware to access and detach the existing module. Installation of a replacement module follows the reverse procedure. Labor time for the complete removal and installation of the powertrain control module is approximately 0.6 hours. Additional time, around 0.5 hours, is allocated for a relearn procedure following the replacement.

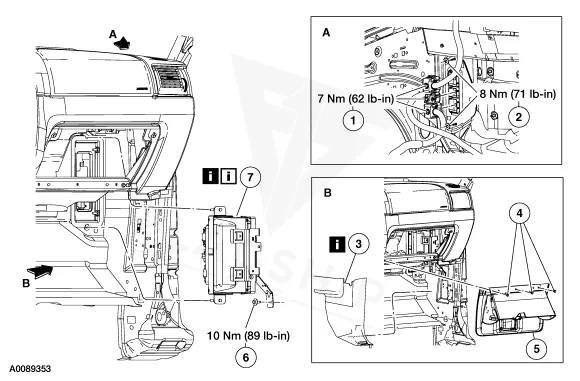

How to Reach the PCM on the 2004 Ford Explorer
- Disconnect the battery ground cable.
- Disconnect the powertrain control module (PCM) electrical connector (3).
- Remove the PCM bracket nut (2).
- Remove the A-pillar lower trim panel.
- Remove the glove box screws (3).
- Remove the glove box.
- Remove the PCM bracket bolt.
- Remove the PCM and mounting bracket.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 0.6 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 0.6 hr |
| Engine Control Module Reset | All configurations | 0.3 hr |
Programming Requirements After Replacement
Following a powertrain control module replacement, the factory procedure mandates a relearn process to ensure proper vehicle operation. This process allows the module to adapt to your vehicle’s specific characteristics. Fortunately, Flagship One units arrive with a VIN-programmed replacement powertrain control module , which typically eliminates the need for this additional step. This pre-programming simplifies the replacement process and reduces the overall labor time.
Symptoms of a Failing PCM
A malfunctioning powertrain control module can manifest in several ways within your 2004 Ford Explorer. Common symptoms include difficulty starting the engine, intermittent stalling, noticeable misfires, and a lack of communication with a scan tool. Shifting problems can also arise as the module’s ability to manage transmission functions is impaired. It’s important to note that these symptoms can also be caused by other issues, so a thorough diagnostic evaluation is recommended. A common diagnostic trouble code associated with this type of failure is Internal ECM/PCM Communication which indicates a problem with internal communication within the module itself.
Protecting the PCM in Your 2004 Ford Explorer
- Maintain a healthy charging system to prevent voltage fluctuations that can damage the module.
- Regularly inspect and clean electrical grounds and connectors to ensure reliable signal transmission.
- Avoid abrupt voltage spikes during jump-starting procedures.
- Address any diagnostic trouble codes promptly to prevent further damage.
- Periodically inspect connector seals for integrity to protect against moisture and contamination.
Frequently Asked Questions
What is the difference between a powertrain control module and an engine control module in my 2004 Ford Explorer?
In this vehicle, the terms are used interchangeably to describe the same module that manages both engine and transmission functions. It’s the central computer for these systems.
How long will it take to replace the powertrain control module in my 2004 Ford Explorer?
The removal and installation of the module itself typically takes around 0.6 hours. A relearn procedure, if required, adds an additional 0.5 hours to the total time.
Will I need to reprogram the new powertrain control module after installation?
Flagship One modules are shipped pre-programmed with your vehicle’s VIN, which usually eliminates the need for additional reprogramming steps. This simplifies the replacement process.
When faced with a failing powertrain control module in your 2004 Ford Explorer, you have several options. Repairing the existing module is possible, but often less cost-effective than replacing it. A refurbished replacement offers a budget-friendly alternative, while a new module from Flagship One provides peace of mind with guaranteed functionality and pre-programmed compatibility.

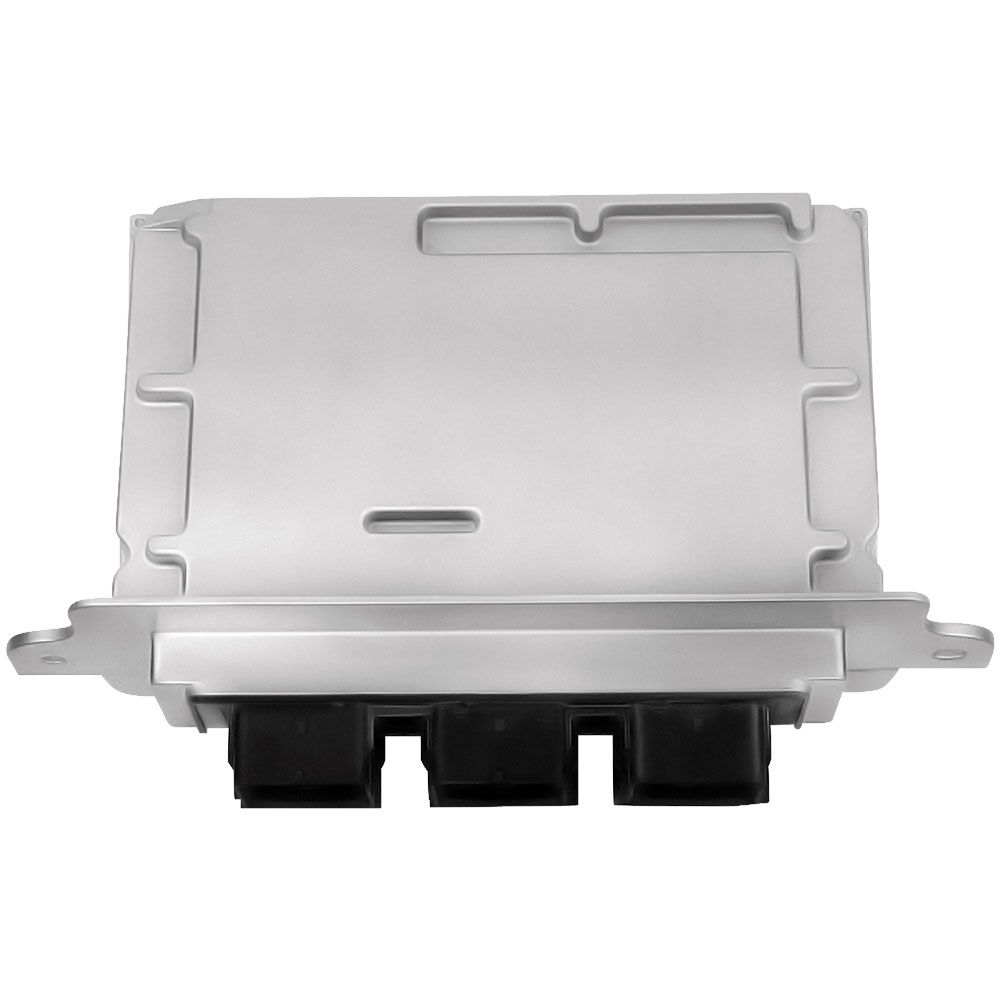

Flagship One stocks a refurbished, VIN-programmed PCM for the 2004 Ford Explorer with a lifetime warranty, free shipping and no core charge. The full Ford Explorer module lineup covers other engine configurations as well.
Final Thoughts
Addressing powertrain control module issues in your 2004 Ford Explorer is essential for maintaining reliable vehicle operation. Understanding the module’s function and the replacement process can help you make informed decisions. Consider the benefits of a Flagship One replacement module for a seamless and efficient repair.
