2004 Ford Explorer 4.0L PCM: Symptoms, Location, and Replacement

When a 2004 Ford Explorer 4.0L begins to exhibit hard starting, intermittent stalling, or unexplained transmission behavior, the powertrain control module (PCM) is often a prime suspect. This computer is the brain behind the engine and transmission, and even subtle internal faults can cascade into driveability problems that are difficult to diagnose. Understanding what the PCM does, where it is located, and what a proper replacement involves can save you time and help you make an informed repair decision. This article explains the role of the PCM in your Explorer, the symptoms that point to a failing unit, and the steps required to restore your vehicle to reliable operation. You will also learn about the factory programming requirements and how a pre-programmed replacement can simplify the process, getting you back on the road with confidence.

What the PCM Does in a 2004 Ford Explorer

The powertrain control module in the 2004 Ford Explorer 4.0L is a sealed electronic unit that continuously monitors and adjusts engine and transmission functions. It receives data from sensors measuring crankshaft position, throttle angle, coolant temperature, oxygen content in the exhaust, and many other parameters. Using this information, the PCM calculates the ideal air-fuel mixture, ignition timing, and shift points for the automatic transmission. It also controls the idle air control valve, evaporative emissions purge, and cooling fan operation. When the module degrades, these precise calculations become unreliable, leading to performance issues that can mimic mechanical failures. A faulty PCM may send incorrect signals to the fuel injectors, causing a rich or lean condition, or it may fail to command the transmission solenoids properly, resulting in harsh or delayed shifts. Because the PCM is integral to so many systems, a malfunction can produce a wide range of symptoms that are often misdiagnosed as sensor or wiring problems. Replacing the module with a quality replacement engine computer for the Explorer restores the original calibration and communication protocols, allowing the vehicle to operate as designed.

Where the PCM Is Located and What Replacement Involves

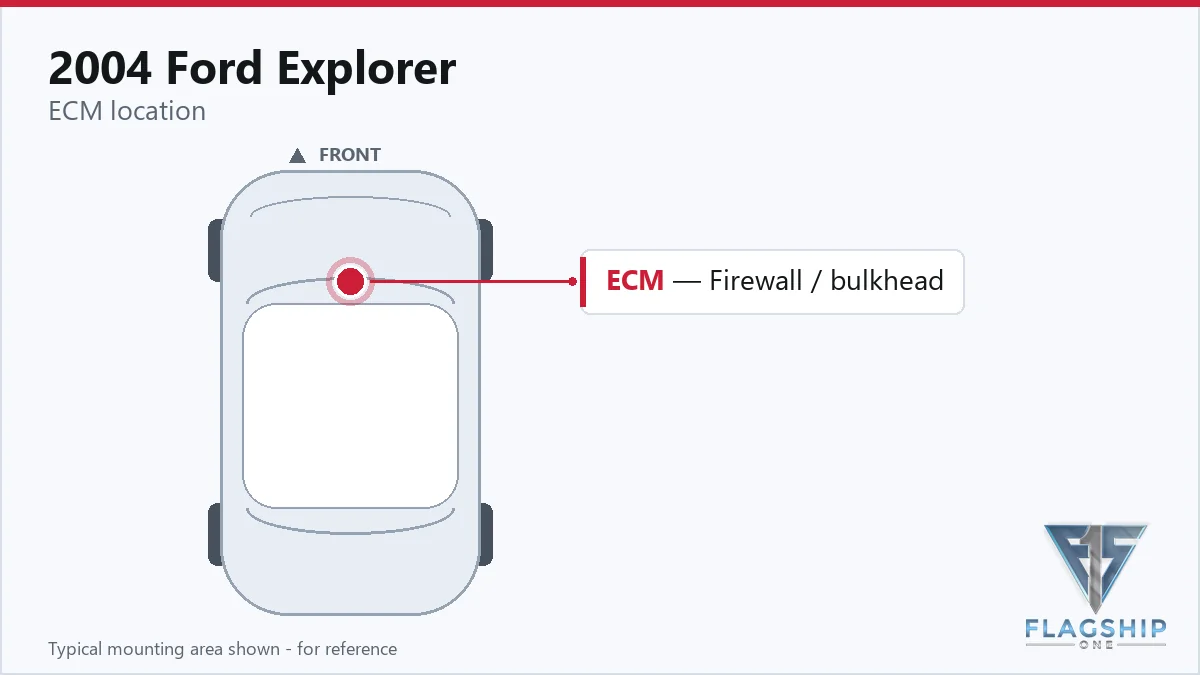

The powertrain control module on the 2004 Ford Explorer 4.0L is located on the engine bulkhead, right-hand side. Accessing the unit requires working in the engine compartment near the firewall. The factory labor guide allows 0.6 hours for removal and replacement of the module. Once the new PCM is installed, a relearn procedure of 0.5 hours is necessary to synchronize the module with the vehicle’s security system and adaptive memory. Additionally, an engine control module reset procedure is listed at 0.3 hours. The replacement process involves disconnecting the battery, unplugging the electrical connectors from the PCM, removing the mounting hardware, and then reversing the steps for the new unit. Care should be taken to ensure the connectors are fully seated and the module is securely fastened to prevent vibration damage. After installation, the relearn procedure typically requires a scan tool to initiate the security handshake and clear any stored codes.

Programming Requirements After Replacement

After a new powertrain control module is physically installed in the 2004 Ford Explorer 4.0L, the factory service procedure requires a series of electronic setup steps. These include a security system relearn to match the module with the vehicle’s passive anti-theft system, a crank position sensor relearn, and an idle air volume relearn. The book time for the PCM relearn is 0.5 hours, and an additional 0.3 hours is listed for an engine control module reset. These procedures typically demand a professional-grade scan tool and access to the manufacturer’s software. However, when you order a VIN-programmed replacement unit from Flagship One, all of these programming steps are completed before the module is shipped. The unit arrives pre-configured with your vehicle’s VIN, immobilizer data, and factory calibration files, so the post-installation relearn is not required. You simply install the module and start the engine.

Symptoms of a Failing PCM

A failing PCM in the 2004 Ford Explorer 4.0L can produce a range of symptoms that are often intermittent at first. The engine may crank but refuse to start, or it may start and then stall shortly after. Rough idling, hesitation on acceleration, and a noticeable loss of power are common complaints. Because the PCM controls transmission shift timing and pressure, you might experience harsh or delayed gear changes, the transmission may stay in limp mode, or the overdrive light may flash. Fuel economy often drops as the module struggles to maintain the correct air-fuel ratio. In some cases, the vehicle’s diagnostic port will not communicate with a scan tool, making it impossible to read trouble codes. Other times, the check engine light will illuminate with codes that do not respond to the usual repairs, such as replacing sensors that test good. These symptoms can appear and disappear with temperature changes, as internal solder joints expand and contract. When multiple, seemingly unrelated problems arise simultaneously, the PCM is a likely root cause.

Protecting the PCM in Your 2004 Ford Explorer

• Keep the battery and charging system in good condition; a weak alternator or corroded terminals can cause voltage spikes that damage the PCM.
• Inspect and clean the PCM connector and ground points periodically to prevent corrosion and intermittent connections.
• Avoid jump-starting the vehicle with a high-voltage booster or running the engine with the battery disconnected, as this can send damaging voltage surges through the module.
• Address check engine light codes promptly; a faulty sensor that shorts to power or ground can overload the PCM driver circuits.
• Ensure the PCM mounting area is free of moisture and debris, and that the connector seals are intact to prevent water intrusion.
• When replacing the battery or alternator, use components that meet the original equipment specifications to maintain stable voltage regulation.

Frequently Asked Questions

How can I tell if my 2004 Ford Explorer 4.0L needs a PCM replacement?

Common signs include a no-start condition, stalling after starting, erratic shifting, and a lack of communication with a scan tool. If you have ruled out other causes like a dead battery, failed sensors, or wiring issues, the PCM may be the culprit. A professional diagnosis that points to internal module failure is the most reliable indicator.

Where is the PCM located on a 2004 Ford Explorer 4.0L?

The PCM is mounted on the engine bulkhead, on the right-hand side of the engine compartment. It is accessible from under the hood, near the firewall. The factory service manual lists 0.6 hours for removal and replacement.

Does a replacement PCM for the 2004 Explorer 4.0L require programming?

Yes, the factory procedure requires a security relearn and other adaptive resets after installation, totaling 0.5 hours for the relearn and 0.3 hours for a reset. However, a pre-programmed unit from Flagship One arrives with your VIN and calibration data already loaded, so no additional programming is needed.

When the PCM in your 2004 Ford Explorer 4.0L fails, you have two main paths: repair the existing module or install a replacement. Repair services can address common internal faults, but they may not resolve all issues and often come with a shorter warranty. A refurbished, pre-programmed replacement offers a plug-and-play solution that restores factory performance without a trip to the dealer for programming. For a vehicle of this age, a quality replacement module can extend the Explorer’s service life significantly.

Flagship One stocks a refurbished, VIN-programmed PCM for the 2004 Ford Explorer with a lifetime warranty, free shipping and no core charge. The full Ford Explorer module lineup covers other engine configurations as well.

Final Thoughts

The powertrain control module is a critical component in the 2004 Ford Explorer 4.0L, and recognizing the signs of failure early can prevent being stranded. With the module located on the right-hand engine bulkhead and a straightforward replacement procedure, getting your Explorer back to reliable operation is a manageable task. A pre-programmed unit eliminates the programming hurdle, making the repair accessible to any skilled DIYer or independent shop.
