2004 Ford Expedition PCM ECM Replacement Guide
The powertrain control module in the 2004 Ford Expedition manages fuel delivery, ignition timing, and transmission shifts for the 4.6L V8. When it fails, the engine may not start, run roughly, or lose communication with scan tools.
Quick Summary
- Module sits in the engine compartment on the right rear side per factory index
- Book time shows 0.3 hours for removal and installation of the PCM
- Factory relearn procedure requires 0.5 hours after installation
- TSB 06-08-03 addresses speed control diagnostics related to the PCM
- Flagship One units arrive VIN-programmed to skip dealer programming steps
Owners of the 2004 Ford Expedition with the 4.6L V8 sometimes face sudden drivability problems that trace back to the powertrain control module. This computer governs critical engine and transmission functions, so a fault can leave you stranded or cause erratic behavior. Understanding where the module lives, what the factory book time requires, and how programming works helps you plan a repair with confidence. The following breakdown covers location, labor estimates, a relevant service bulletin, and what to expect when swapping the unit.
What the PCM Does in a 2004 Ford Expedition
In the 2004 Ford Expedition, the powertrain control module acts as the central brain for the 4.6L V8 powertrain, coordinating fuel injection, spark advance, idle speed, and automatic transmission shifts based on sensor inputs. A failing unit can trigger a no-start condition, random stalling, harsh shifting, or a complete loss of communication with diagnostic equipment. Because the module stores adaptive strategies for your specific engine wear and driving patterns, replacing it with a blank unit normally requires a dealer-grade scan tool to perform the factory relearn. Choosing replacement engine computers for the Expedition that arrive pre-configured to your VIN eliminates that extra step and restores factory calibrations immediately.
Where the PCM Is Located and What Replacement Involves

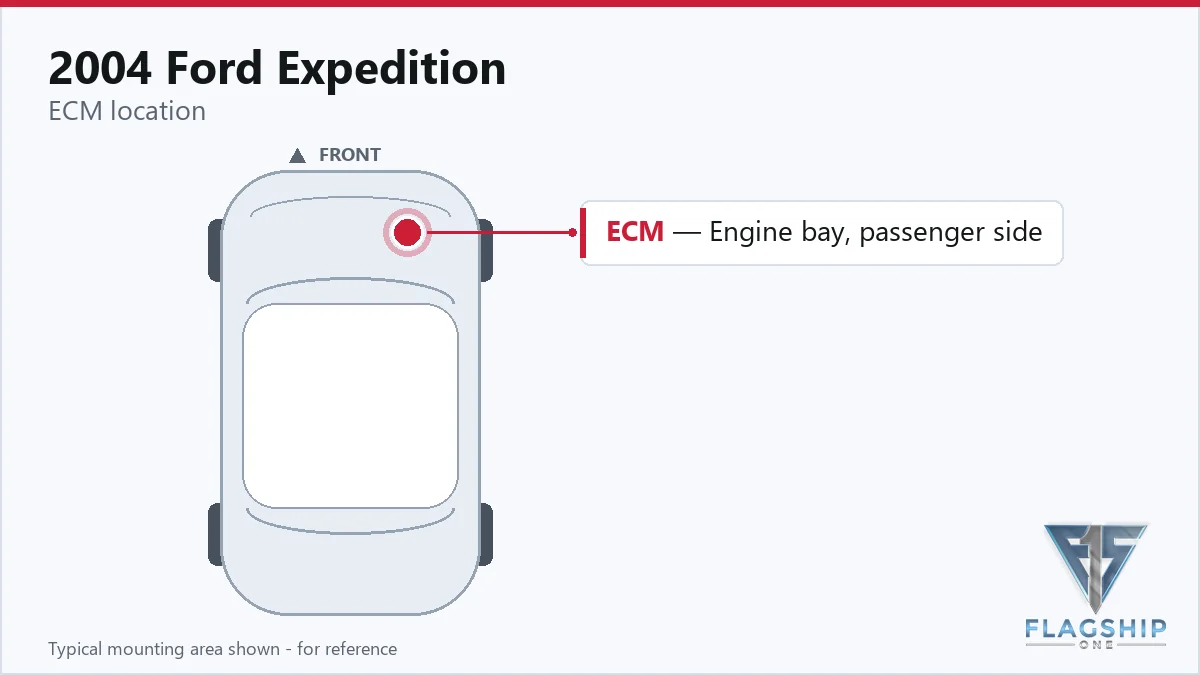

The factory component-location index places the powertrain control module in the engine compartment on the right-hand side toward the rear. Access typically involves removing any protective covers or ductwork that block the connector and mounting hardware. According to published labor guides, the removal and installation operation carries a book time of 0.3 hours. After the new module is secured and the connector seated, the factory procedure calls for a relearn process that adds 0.5 hours of scan-tool time. No torque specifications are provided in the supplied data, so follow standard fastener practices for the mounting bolts.
How to Reach the PCM on the 2004 Ford Expedition
- Disconnect the battery ground cable.
- Disconnect the powertrain control module (PCM) electrical connectors.
- Remove the bolts and the PCM.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 0.3 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 0.3 hr |
Programming Requirements After Replacement
After a module swap, the factory service routine requires a PCM relearn procedure that takes approximately 0.5 hours using a compatible scan tool. This step allows the new computer to learn idle characteristics, fuel trims, and transmission adaptives for your specific 4.6L V8. Flagship One units ship with a VIN-programmed replacement unit so that the relearn is already completed before the part reaches you, letting you install and drive without a dealer visit for programming.
Symptoms of a Failing PCM
Common signs of a failing powertrain control module in this Expedition include an engine that cranks but will not start, intermittent stalling at idle or low speed, erratic or harsh transmission shifts, and a scan tool that cannot establish communication with the PCM. You may also notice the check engine light illuminated with codes related to internal processor faults or memory errors. Because the module controls both engine and transmission functions, symptoms can mimic sensor failures or wiring issues, making accurate diagnosis important before condemning the computer.
Factory Service Bulletins Worth Knowing
Ford issued Technical Service Bulletin 06-08-03 covering PCM speed control diagnostic tips for the 2004 Expedition. The bulletin provides guidance for diagnosing cruise control malfunctions that may originate from the powertrain control module or its related circuits. Technicians should reference this document when troubleshooting speed control complaints before replacing the module.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 06-08-03 | PCM – SPEED CONTROL DIAGNOSTIC TIPS | — |
Protecting the PCM in Your 2004 Ford Expedition
- Maintain a healthy charging system to prevent voltage spikes that stress the PCM
- Keep battery terminals and ground connections clean and tight
- Avoid jump-starting with reversed polarity or excessive voltage
- Address check-engine codes promptly to prevent cascading failures
- Inspect the PCM connector seals for moisture intrusion during routine service
- Use a surge-protected memory saver when disconnecting the battery
Frequently Asked Questions
How long does it take to replace the PCM on a 2004 Ford Expedition?
The factory book time for removal and installation is 0.3 hours, with an additional 0.5 hours for the required relearn procedure if using a blank module.
Where is the PCM located on the 2004 Expedition 4.6L?
The module mounts in the engine compartment on the right side toward the rear, per the factory component-location index.
Does a used PCM need programming before installation?
Yes, a used or blank PCM requires the factory relearn procedure with a scan tool; VIN-programmed replacements arrive ready to install.
When the PCM in your 2004 Ford Expedition fails, you can either source a used unit and pay for dealer programming or install a refurbished module that arrives calibrated to your VIN. The latter avoids the 0.5-hour relearn appointment and gets you back on the road faster with factory-matched calibrations.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2004 Ford Expedition with a lifetime warranty, free shipping and no core charge. The full Ford Expedition module lineup covers other engine configurations as well.
Final Thoughts
The 2004 Ford Expedition relies on a properly functioning powertrain control module to keep the 4.6L V8 running smoothly and shifting correctly. Knowing the module location, book times, and programming requirements lets you make an informed repair decision. A VIN-programmed replacement eliminates the factory relearn step and restores your Expedition’s performance with minimal downtime.
