2003 Chevrolet Venture PCM/ECM Replacement and Programming Guide
The powertrain control module (PCM) in your 2003 Chevrolet Venture is the engine and transmission computer. It manages fuel, ignition, and shift points. Failure can cause no-start, stalling, incorrect gear indication, and diagnostic trouble codes like P0601 or P0706.
Quick Summary
- The PCM is located next to the air cleaner assembly; replacement book time is 1.1 hours.
- Factory cautions warn against programming the PCM unless directed by a service procedure or GM bulletin.
- A TSB (#04-07-30-029) addresses SES light, DTC P0706, and no-start conditions by reprogramming the PCM.
- Module-internal trouble codes (e.g., P0601, P0602) indicate PCM hardware or software faults.
- Flagship One provides VIN-programmed units that eliminate the need for post-install programming.
If your 2003 Chevrolet Venture is showing a Service Engine Soon light, refusing to start, or displaying an incorrect gear range indicator, the powertrain control module (PCM) may be at fault. The PCM is the central computer that controls engine and transmission operation. This guide explains what the PCM does, where it is located, how replacement is performed, and what factory cautions apply. You will also learn about a relevant service bulletin and the module-internal trouble codes that can appear. Understanding these details helps you make an informed decision about repairing or replacing the PCM in your Venture.
What the PCM Does in a 2003 Chevrolet Venture
The powertrain control module (PCM) in your 2003 Chevrolet Venture acts as the brain for both the engine and the transmission. It receives sensor inputs and adjusts fuel delivery, ignition timing, and shift patterns to keep the vehicle running efficiently. When the PCM fails, it can cause a range of drivability issues, from a no-start condition to erratic shifting or a persistent SES light. The module is designed to be replaced rather than repaired, and replacement PCMs for the Venture are available from suppliers like Flagship One. Because the PCM is integral to vehicle operation, any failure should be addressed promptly to avoid further complications.

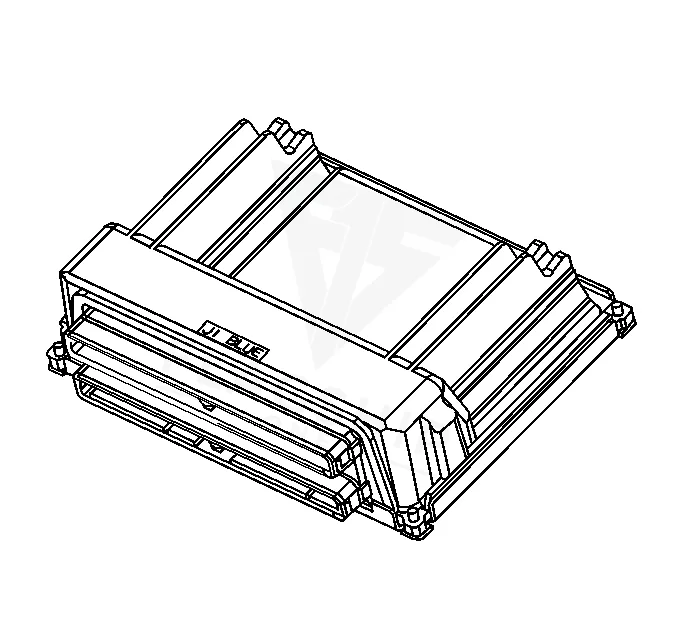

Where the PCM Is Located and What Replacement Involves
The factory removal procedure for the 2003 Chevrolet Venture PCM places the control module next to the air cleaner assembly. Accessing it typically involves removing the air cleaner housing and disconnecting the electrical connectors. The book time for removing and replacing the PCM is 1.1 hours. A separate relearn procedure, which takes 0.5 hours, may be required after installation to synchronize the module with the vehicle. No special torque values are specified for the mounting hardware. Ensure the battery is disconnected before beginning work to avoid electrical shorts or damage to the new module.
How to Reach the PCM on the 2003 Chevrolet Venture
- Remove the coolant reservoir retaining fastener.
- Remove the coolant reservoir and set aside.
- Remove the 3 bolts from the strut brace.
- Remove the left front strut brace.
- Loosen the two bolts the PCM cover and remove the PCM cover.
- Remove the PCM from the air cleaner housing.
- Disconnect the PCM electrical connectors.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module R&R | All configurations | 1.1 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Powertrain Control Module R&R | All configurations | 1.1 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After installing a new PCM in your 2003 Chevrolet Venture, the factory procedure requires reprogramming the module using a Tech 2 scan tool. The steps include selecting Tech 2, Reprogram ECU, and Off-Board Programming Adapter as the ECU location. Off-Board Programming is used when the vehicle is not present. Factory cautions stress that programming should only be performed when directed by a service procedure or GM bulletin, and the ignition must not be turned off if the process is interrupted. a VIN-programmed replacement PCM from Flagship One arrives with the correct software already loaded, so these programming steps are already completed and you can install the unit and drive.
Symptoms of a Failing PCM
Common failure symptoms of the PCM in a 2003 Chevrolet Venture include a no-start condition, stalling, and the SES light illuminating. The transmission may shift erratically or the gear range indicator may show an incorrect reading, such as always displaying ‘2’ or ‘D2’. Diagnostic trouble codes like P0601 internal memory fault can appear, indicating a problem within the module itself. Other symptoms may include poor fuel economy, misfire codes, or a complete loss of communication with a scan tool. If you experience any of these issues, the PCM should be inspected and tested.
Module Trouble Codes on the 2003 Chevrolet Venture
The following list contains module-internal trouble codes documented for the 2003 Chevrolet Venture. These codes indicate faults within the PCM itself, such as memory errors, processor failures, or communication problems. They are distinct from generic powertrain codes and often require module replacement.
Factory Service Bulletins Worth Knowing
General Motors service bulletin #04-07-30-029, dated June 30, 2004, addresses a condition where the SES light is on, DTC P0706 is stored, and the gear range indicator is incorrect or inaccurate. Some customers may also report a no-start condition. The bulletin instructs technicians to reprogram the powertrain control module (PCM) to correct the issue. This TSB applies to the 2003 Chevrolet Venture and similar GM vehicles. If your Venture exhibits these symptoms, reprogramming the PCM may resolve the problem without replacing the module.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 04-07-30-029 | Service Engine Soon (SES) Light On, Diagnostic Trouble Code (DTC) P0706, Gear Range Indicator I | Some customers may comment that the SES light is on. Some may comment that the vehicle will not start. Others may comment that the gear range indicator always… |
Protecting the PCM in Your 2003 Chevrolet Venture
- Keep the charging system in good condition; voltage spikes from a failing alternator can damage the PCM.
- Clean and tighten all ground connections and PCM connector pins to ensure reliable electrical contact.
- Avoid jump-starting the vehicle with a running donor car; use a battery charger instead to prevent voltage surges.
- Address any diagnostic trouble codes promptly, especially module-internal codes like P0601, to prevent further damage.
- Inspect the PCM connector seals for cracks or moisture intrusion, which can cause corrosion and short circuits.
Frequently Asked Questions
What are the symptoms of a bad PCM in a 2003 Chevrolet Venture?
Common symptoms include a no-start condition, stalling, the SES light on, and incorrect gear range indication. You may also see diagnostic trouble codes like P0601 or P0706. If the PCM fails completely, the engine may not run at all.
How long does it take to replace the PCM on a 2003 Chevrolet Venture?
The book time for removing and replacing the PCM is 1.1 hours. An additional 0.5 hours is allowed for the relearn procedure. Actual time may vary depending on your skill level and access to tools.
Do I need to program a new PCM for my 2003 Chevrolet Venture?
Yes, the factory procedure requires reprogramming the PCM using a Tech 2 scan tool. However, Flagship One sells VIN-programmed units that come with the correct software already installed, so no programming is needed after installation.
When your 2003 Chevrolet Venture needs a PCM replacement, you have two main options: repair the existing module or install a refurbished unit. Repair is rarely cost-effective for modern PCMs, and used modules may have unknown issues. A refurbished PCM from a trusted supplier like Flagship One is a reliable choice, as it is tested and programmed to your vehicle’s VIN. This ensures plug-and-play installation without the need for dealer programming.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2003 Chevrolet Venture with a lifetime warranty, free shipping and no core charge. The full Chevrolet Venture module lineup covers other engine configurations as well.
Final Thoughts
The PCM in your 2003 Chevrolet Venture is a critical component that controls engine and transmission functions. Recognizing symptoms like no-start, SES light, or gear indicator errors can help you address problems early. Whether you choose to reprogram the existing module or install a VIN-programmed replacement, understanding the factory procedures and cautions ensures a successful repair for your Venture.
