2003 Audi S6 Engine Control Module Reset and Replacement Guide
The Engine Control Module in a 2003 Audi S6 manages fuel delivery, ignition timing, and emission controls. Failure can result in loss of power, stalling, or complete no‑start conditions, often accompanied by diagnostic trouble codes.
Quick Summary
- ECM reset typically requires about 0.3 hours of labor.
- Full removal and reinstall of the ECM averages around 1.2 hours.
- If no fault is found, the Motronic power supply relay J271 may need replacement.
- Flagship One units arrive VIN‑programmed, eliminating post‑install coding.
When a 2003 Audi S6 begins to exhibit intermittent power loss, stalling, or a complete failure to start, the Engine Control Module (ECM) is often a suspect. Understanding how the ECM functions, where it resides, and what the repair process entails can help you decide whether a reset, repair, or replacement is appropriate. This guide walks you through the typical labor times, the location of the module, the steps required after a swap, and practical tips to keep the system healthy. By the end, you should feel confident evaluating the condition of your vehicle’s ECM and knowing what to expect from a professional service.
What the PCM Does in a 2003 Audi S6
The Engine Control Module in the 2003 Audi S6 serves as the central computer that monitors sensor data, controls fuel injection, and adjusts ignition timing to meet performance and emissions standards. It continuously processes inputs from the throttle position sensor, crankshaft sensor, and oxygen sensors, then commands the injectors and ignition coils accordingly. Because it also interfaces with the transmission control unit, a malfunction can affect shift quality as well as engine operation. Maintaining a functional ECM is essential for reliable power delivery and compliance with emission regulations. The module’s reliability directly influences drivability and fuel efficiency. For owners seeking a replacement, replacement engine computers for the 2003 Audi S6 are available that match the original specifications.
Where the PCM Is Located and What Replacement Involves

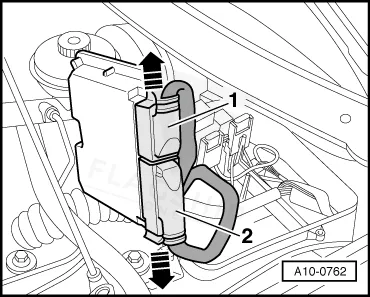

In the 2003 Audi S6, the ECM is mounted within the engine compartment, typically attached to the firewall near the intake manifold. Access involves removing the engine cover, disconnecting the primary power connector, and unbolting the module using the specified torque values. Labor for a complete removal and reinstall is listed at 1.2 hours for the S6 variant. Once the unit is out, the wiring harness is inspected, and the mounting hardware is reused unless corrosion is evident. Reinstallation follows the reverse order, ensuring all connectors seat fully and the module is secured to the firewall.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module Reset | A6 | 0.3 hr |
| Engine Control Module Reset | A6 Quattro | 0.3 hr |
| Engine Control Module Reset | RS6 | 0.3 hr |
| Engine Control Module Reset | S6 | 0.3 hr |
| Engine Control Module R&R | A6 | 1.2 hr |
| Engine Control Module R&R | A6 Quattro | 1.2 hr |
| Engine Control Module R&R | Allroad Quattro | 1.1 hr |
| Engine Control Module R&R | RS6 | 1.2 hr |
Programming Requirements After Replacement
After installing a new ECM in a 2003 Audi S6, the factory procedure normally requires a VIN‑specific programming step to align the unit with the vehicle’s immobilizer and emission settings. Flagship One provides a a VIN-programmed replacement unit that arrives pre‑configured, so those programming actions are already completed, simplifying the installation and reducing the risk of post‑install errors.
Symptoms of a Failing PCM
Typical signs of a failing ECM in a 2003 Audi S6 include a sudden loss of engine power, frequent stalling at idle, misfire codes appearing during a scan, or a complete inability to start the vehicle. Drivers may also notice erratic transmission shifts or a lack of communication when connecting a diagnostic tool. In many cases, the diagnostic trouble code P0601 appears, indicating a internal ECM malfunction, which can be confirmed during a scan. These symptoms often worsen under load or after the vehicle has warmed up, reflecting the module’s role in real‑time engine management.
Protecting the PCM in Your 2003 Audi S6
- Maintain a healthy charging system to avoid voltage spikes that can damage the ECM.
- Ensure all ground connections are clean and secure.
- Avoid using high‑current jump starters that may introduce voltage transients.
- Address any diagnostic codes promptly to prevent further stress on the module.
- Inspect and keep connector seals intact to protect against moisture intrusion.
- Periodically check the Motronic power supply relay J271 for proper operation.
Frequently Asked Questions
What are the typical labor times for resetting the ECM on a 2003 Audi S6?
A reset of the Engine Control Module on a 2003 Audi S6 generally takes about 0.3 hours of labor, according to standard book times.
How long does it take to remove and reinstall the ECM in a 2003 Audi S6?
The removal and reinstall procedure for the ECM in a 2003 Audi S6 is listed at approximately 1.2 hours of labor.
What should I check if the ECM reset does not resolve the issue?
If a reset does not fix the problem, you may need to inspect the Motronic ECM power supply relay J271 and consider its replacement.
Do I need to program the new ECM after installation?
Factory guidelines call for VIN‑specific programming after a new ECM is installed, but a Flagship One VIN‑programmed unit eliminates that step.
Can a faulty ECM cause transmission shifting problems in my 2003 Audi S6?
Yes, because the ECM communicates with the transmission control unit, a malfunction can lead to irregular or harsh shifting.
When the ECM in your 2003 Audi S6 shows signs of failure, you have the option of a professional repair or a refurbished replacement. Both approaches aim to restore proper engine management, but a refurbished unit from Flagship One arrives pre‑programmed and tested for fit and function, often reducing shop time. Weigh the cost, warranty, and expected downtime to choose the solution that best fits your driving needs.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2003 Audi S6 with a lifetime warranty, free shipping and no core charge. The full Audi S6 module lineup covers other engine configurations as well.
Final Thoughts
The Engine Control Module is vital to the performance of your 2003 Audi S6. Whether you reset, repair, or replace it, understanding the process helps ensure a reliable repair. Consider professional service or a Flagship One refurbished unit to get your vehicle back on the road quickly.
