2002 Toyota Camry PCM and ECM Service Overview
In the 2002 Toyota Camry the Powertrain Control Module and Engine Control Module manage engine timing, fuel delivery, and transmission shift logic. Failure of either unit can cause loss of power, stalling, or loss of diagnostic communication, often triggering related fault codes.
Quick Summary
- PCM replacement typically requires about six tenths of an hour of labor.
- ECM removal and install for the 2.4 L engine is quoted at four tenths of an hour.
- Both modules are accessed from the instrument panel according to the factory wiring guide.
- Flagship One units arrive pre‑programmed, eliminating post‑install relearn steps.
When a 2002 Toyota Camry begins to exhibit intermittent power loss, rough idle, or transmission shift irregularities, the electronic control modules often become the focus of diagnosis. Understanding how the Powertrain Control Module and Engine Control Module function, where they sit, and what work is involved in their replacement can help you assess repair options. This guide walks you through the basics of each module, typical labor requirements, and the programming steps that follow a swap, so you can make an informed decision about keeping your Camry on the road.
What the PCM Does in a 2002 Toyota Camry
The Powertrain Control Module in a 2002 Toyota Camry acts as the central processor for engine and transmission commands, interpreting sensor data to adjust fuel injection, ignition timing, and shift timing. It also stores diagnostic trouble codes that help pinpoint issues. The Engine Control Module performs similar duties but focuses specifically on engine parameters, ensuring smooth operation and emissions compliance. Because both modules share data pathways, a fault in one can affect overall drivability. Proper function is essential for fuel efficiency and smooth shifting, which is why replacement engine computers for the Camry are often inspected together during major service.

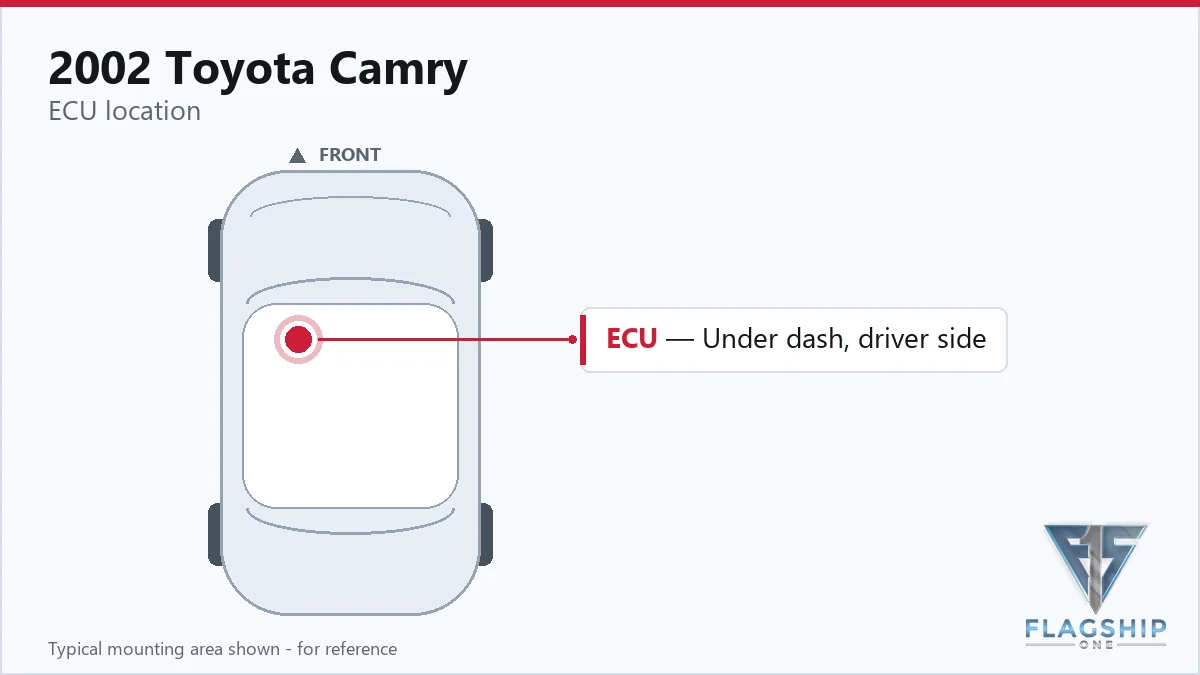

Where the PCM Is Located and What Replacement Involves
The factory wiring guide indicates the engine control unit resides within the instrument panel, making it accessible without removing the dashboard. Replacing the Powertrain Control Module generally takes about six tenths of an hour, while swapping the Engine Control Module for the 2.4 L engine is listed at four tenths of an hour. The procedure involves disconnecting the battery, removing the module connector, and securing the new unit in the same mounting location. No additional hardware specifications are provided, so the focus remains on the documented labor times and access route.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 0.6 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | 2.4L | 0.4 hr |
| Engine Control Module R&R | 3.0L | 0.4 hr |
Programming Requirements After Replacement
After a module swap, the factory service routine calls for a Powertrain Control Module relearn lasting five tenths of an hour and an Engine Control Module relearn of five tenths of an hour. Those steps ensure the new unit learns the vehicle’s idle, throttle, and transmission parameters. Flagship One supplies a a VIN-programmed replacement unit that arrives already calibrated for your Camry, so the relearn procedures are completed at the factory and do not need to be performed on the shop floor.
Symptoms of a Failing PCM
Typical signs of a failing PCM or ECM in a 2002 Toyota Camry include a complete no‑start condition, rough idle, unexpected stalling, and erratic transmission shifts. Diagnostic scans may reveal loss of communication with the control unit or specific fault codes such as communication fault that point to internal processor errors. You might also notice reduced fuel efficiency or the check engine light flashing intermittently, all of which suggest the electronic brain needs attention.
Protecting the PCM in Your 2002 Toyota Camry
- Maintain a healthy charging system to avoid voltage drops that can corrupt module memory.
- Inspect and clean all ground connections to ensure reliable electrical pathways.
- Use surge protectors or avoid aggressive jump‑starts that may introduce voltage spikes.
- Address any diagnostic trouble codes promptly before they cascade into larger issues.
- Keep connector seals intact to prevent moisture ingress.
- Periodically verify battery voltage stays within manufacturer specifications.
Frequently Asked Questions
What are the typical labor times for replacing the PCM in a 2002 Toyota Camry?
The factory book lists the Powertrain Control Module removal and replacement at roughly six tenths of an hour.
Is the Engine Control Module located in the engine bay on a 2002 Toyota Camry?
No, the wiring guide places the engine control unit inside the instrument panel rather than the engine compartment.
Do I need to perform a relearn after installing a new ECM on a 2002 Camry?
Factory procedures call for an Engine Control Module relearn of five tenths of an hour, but a VIN‑programmed replacement from Flagship One eliminates that step.
Can a bad PCM cause transmission shift problems in my Camry?
Yes, because the PCM also controls shift timing, a malfunction can lead to harsh or delayed shifts.
What code might appear if the PCM loses internal communication?
A common indication is code P0601, which signals an internal processor communication fault.
When a PCM or ECM fails in a 2002 Toyota Camry, you can either have the original unit repaired or install a refurbished replacement. Both approaches restore functionality, but a pre‑programmed unit from Flagship One simplifies the post‑install steps, letting you get back on the road faster.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2002 Toyota Camry with a lifetime warranty, free shipping and no core charge. The full Toyota Camry module lineup covers other engine configurations as well.
Final Thoughts
Understanding the role and service requirements of the PCM and ECM helps you keep your 2002 Toyota Camry running smoothly. Whether you choose repair or a Flagship One replacement, the goal remains a reliable, well‑controlled engine and transmission.
