2002 Pontiac Aztek PCM Replacement and ECM Programming Guide

If your 2002 Pontiac Aztek has set internal control module codes or is otherwise unresponsive to standard diagnostics, the Powertrain Control Module may be the root cause. The PCM on this vehicle coordinates engine timing, fuel delivery, transmission shifting, and emissions controls through a single housing. When internal electronics within the module degrade, you may see a range of unrelated-sounding trouble codes, intermittent no-start conditions, or a complete loss of scan-tool communication. This guide walks you through what the module does, where it is located, what replacement involves, and what programming steps the factory requires. You will also learn why a pre-programmed replacement unit can spare you a trip to a dealership or tuning shop.

What the PCM Does in a 2002 Pontiac Aztek

The Powertrain Control Module serves as the central computer for the 3.4L V6 engine in your 2002 Pontiac Aztek. It receives input from dozens of sensors and uses that data to command fuel injectors, ignition timing, the automatic transmission, the cooling fan, and emissions components. Because the PCM manages both engine and transmission functions in a single unit, any internal fault within its processor or memory circuitry can produce a wide variety of symptoms that seem unrelated to each other. The module also stores calibration data specific to your vehicle identification number, which is why a replacement unit must be matched to this particular Aztek. When internal diagnostics detect a fault in the module’s own circuitry, it sets codes like P0601, P0620, or P1635, which point to internal memory, processor, or communication failures rather than a failed sensor or wiring problem. Sourcing replacement engine computers for the Pontiac Aztek from a reputable supplier ensures the replacement arrives with the correct calibration already installed, minimizing downstream programming complications.

Flagship One keeps Pontiac Aztek replacement engine computers in stock for exactly this failure pattern.

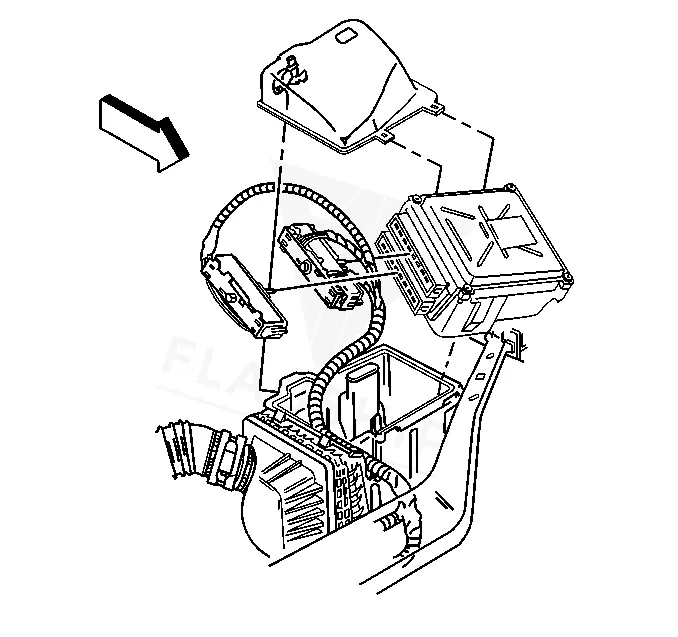

What Replacing the PCM Involves

Programming Requirements After Replacement

After installing a replacement control module on the 2002 Pontiac Aztek, the factory service procedure directs technicians to attempt reprogramming the module using GM-approved equipment. The recommended tool path involves selecting Tech 2, then Reprogram ECU, and finally Off-Board Programming Adapter as the ECU location. General Motors explicitly cautions against programming a control module unless directed by a service procedure or a published service bulletin, because programming outside of these conditions will not permanently resolve a customer concern. The factory also warns against interrupting the ignition or losing power during programming. Flagship One units ship with the vehicle identification number already programmed, so the reprogramming steps that would normally require a dealer visit or independent tuning facility are already complete at the time your replacement unit arrives.

Every VIN-programmed replacement unit from Flagship One arrives with these steps already completed.

Symptoms of a Failing PCM

When the PCM on a 2002 Pontiac Aztek begins to fail internally, the vehicle often exhibits hard starting or intermittent no-start conditions despite otherwise healthy fuel delivery and spark. The engine may stall unexpectedly or run roughly, setting random misfire codes. Transmission shifting may become harsh, late, or unpredictable because the PCM controls line pressure and shift scheduling. Dashboard warning lights may illuminate without corresponding sensor faults, and a scan tool may fail to communicate with the module entirely. The engine may also fail to enter closed-loop operation, leading to elevated emissions and poor fuel economy. Multiple trouble codes spanning several categories, including P0601 Internal Memory Check Sum Error, frequently appear simultaneously, which is a hallmark pattern of internal module degradation rather than individual component failure.

Module Trouble Codes on the 2002 Pontiac Aztek

The 2002 Pontiac Aztek may store a broad range of module-internal trouble codes including P0601 through P1683. These codes differ from typical sensor or actuator faults because they originate within the controller’s own electronics. When you see these codes appear together without corresponding wiring or mechanical issues, the Powertrain Control Module itself is typically the failed component.

Factory Service Bulletins Worth Knowing

Protecting the PCM in Your 2002 Pontiac Aztek

• Maintain a healthy charging system with clean battery terminals and secure grounds; voltage irregularities can stress the module’s internal circuitry over time.
• Avoid jump-starting the vehicle whenever possible, as voltage spikes during jump starts can damage sensitive control module electronics.
• Do not casually disconnect the battery or clear codes without understanding the underlying cause, as interrupting power during certain operations can corrupt module data.
• Address any stored diagnostic trouble codes promptly rather than ignoring them; early intervention prevents cascading damage from secondary causes.
• Keep the module’s electrical connectors clean and dry, and inspect wiring harnesses periodically for chafing or heat damage near the engine.

Frequently Asked Questions

Can I just reprogram the PCM on my 2002 Pontiac Aztek to clear the P0601 or P0603 codes?

Module-internal codes like P0601, P0602, and P0603 indicate hardware failures within the controller’s own memory or processor. Software reprogramming will not correct these faults. If the module has failed internally, replacement with a properly programmed unit is necessary.

Why should I avoid buying a used PCM from a junkyard for my Aztek?

Used control modules typically arrive blank and require dealer-level programming equipment to encode the vehicle identification number and calibration data. Without access to GM’s software tools, a salvage yard unit will not function in your specific vehicle.

What should I check if the engine does not start after installing the replacement PCM?

Verify that the battery is fully charged, all PCM electrical connectors are fully seated, and the ground straps between the engine and chassis are clean and tight. Check for power at the key-on power circuits at the module connector using a multimeter before assuming the new module is defective.

Deciding between repairing your existing module and installing a replacement often comes down to the specific fault type. If your 2002 Pontiac Aztek has triggered module-internal codes, the electronics inside the controller have failed, and no software update will resolve the issue. A pre-programmed replacement unit matched to your vehicle identification number offers the most direct path back to a functioning drivetrain without the need to schedule dealer programming or source external tuning equipment. Review the applicable service bulletins and diagnostic results to confirm the Powertrain Control Module as the root cause before proceeding.

Flagship One stocks a refurbished, VIN-programmed PCM for the 2002 Pontiac Aztek with a lifetime warranty, free shipping and no core charge. The full Pontiac Aztek module lineup covers other engine configurations as well.

Final Thoughts

The 2002 Pontiac Aztek with the 3.4L V6 relies on its Powertrain Control Module for virtually every drivetrain function, and internal module codes point to hardware-level failure that no reprogramming can repair. If diagnostics confirm the PCM as the source, a replacement unit programmed to your specific vehicle identification number restores proper operation. Flagship One supplies modules matched to your Aztek so you can install and drive with confidence.
