2002 GMC Safari PCM Replacement & Programming Guide
The Powertrain Control Module (PCM) in your 2002 GMC Safari manages engine and transmission functions. Failures may cause erratic performance, no-start conditions, or stored trouble codes related to internal memory or communication errors.
Quick Summary
- The PCM controls critical engine and transmission operations in the 2002 GMC Safari.
- Replacement typically requires 1.0 hours of labor, plus programming time.
- Factory procedures mandate ignition-off power disconnection to prevent PCM damage.
- A new or replacement PCM must be programmed to match your vehicle’s VIN.
- Common symptoms include stalling, misfires, and module-specific trouble codes.
If your 2002 GMC Safari is experiencing unexplained stalling, rough idling, or a no-start condition, the Powertrain Control Module (PCM) may be at fault. This small but critical computer manages fuel delivery, ignition timing, and transmission behavior. Replacing or servicing it requires careful handling to avoid damage and ensure proper function. Understanding the steps involved—from safe removal to programming—helps you make informed decisions about repairs. Whether you’re diagnosing symptoms or preparing for a replacement, knowing what to expect can save time and prevent complications.
What the PCM Does in a 2002 GMC Safari
The PCM in your 2002 GMC Safari acts as the brain of the engine and transmission systems. It processes data from sensors to optimize fuel mixture, ignition timing, and shift points, ensuring smooth operation. A malfunctioning PCM may disrupt these functions, leading to poor performance or even a vehicle that won’t start. When replacement becomes necessary, selecting replacement engine computers for the Safari ensures compatibility with your vehicle’s specific requirements. Without proper calibration, the new module won’t communicate effectively with other systems, so programming is essential after installation.

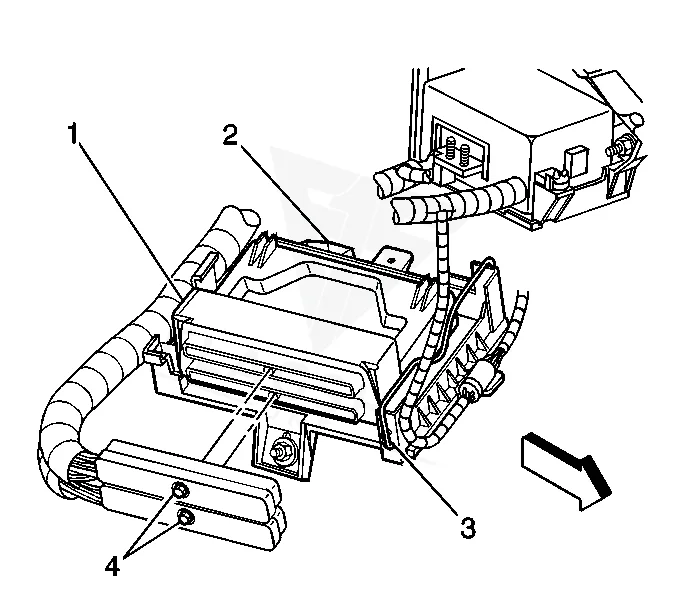

Where the PCM Is Located and What Replacement Involves
The PCM in the 2002 GMC Safari is typically located near the engine bay, though access may vary. Replacing it involves disconnecting the battery and carefully removing electrical connectors to avoid damage. The labor guide estimates 1.0 hours for PCM removal and reinstallation (R&R). Before disconnecting power, always turn the ignition off to prevent internal damage. Once removed, the replacement unit must be installed with the same care, ensuring all connectors are secure and properly seated. No additional torque specifications are provided for this procedure.
How to Reach the PCM on the 2002 GMC Safari
- Remove any debris from the PCM connector surfaces before.
- Disconnect the PCM harness connectors.
- Release the spring latch from the.
- Lift the PCM from the PCM mounting.
- Remove the PCM from the engine.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 1.0 hr |
| Engine Control Module Reset | All configurations | 0.3 hr |
| Engine Control Module R&R | All configurations | 1.0 hr |
Programming Requirements After Replacement
After installing a new PCM in your 2002 GMC Safari, factory procedures require programming to match the vehicle’s VIN. This process often involves using a Tech 2® scan tool and an Off-Board Programming Adapter, even if the vehicle isn’t present. However, opting for a VIN-programmed replacement unit eliminates the need for this step, as the module arrives ready to install. Without programming, the PCM won’t function correctly, leading to potential drivability issues or stored trouble codes. Always follow manufacturer guidelines to ensure a successful repair.
Symptoms of a Failing PCM
A failing PCM in your 2002 GMC Safari may cause a range of symptoms, from intermittent stalling to a complete no-start condition. You might notice rough idling, poor acceleration, or transmission shifting problems. On a scan tool, you could see module-internal codes like internal control module memory checksum error, indicating a fault within the PCM itself. Other signs include erratic sensor readings or a lack of communication with diagnostic tools. If these issues arise, prompt attention can prevent further complications, such as additional component failures or unsafe driving conditions.
Module Trouble Codes on the 2002 GMC Safari
The 2002 GMC Safari’s PCM may store specific trouble codes when internal faults occur. These codes help diagnose issues related to memory, communication, or power supply within the module. Below are the documented codes for this vehicle.
Factory Service Bulletins Worth Knowing
General Motors has issued several service bulletins relevant to PCM replacement and reprogramming in the 2002 GMC Safari. Bulletin #02-06-04-057 (updated as #02-06-04-057E) outlines labor operation assignments for control module reprogramming. Another bulletin, #07-00-89-043, emphasizes the use of GM-issued parts and calibrations to avoid warranty complications. Additionally, #02-09-41-001 addresses diagnostic trouble codes B1001, B1271, or B1780 that may appear when replacing or reprogramming other modules in the vehicle.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 02-06-04-057 | Warranty Admin. – Labor Operation Assignments for All Control Module Reprogramming – (Mar 2, 20 | — |
| 07-00-89-043 | Warranty Admin. – Use of Parts and Components (Including Control Module Calibrations) Not Issue | — |
| 02-09-41-001 | Info – DTCs B1001, B1271 or B1780 Set When Replacing/Reprogramming Other Modules – (May 24, 200 | — |
Protecting the PCM in Your 2002 GMC Safari
- Keep your vehicle’s battery and charging system in good condition to avoid voltage spikes.
- Ensure all electrical connectors are clean, dry, and securely fastened to prevent corrosion or poor contact.
- Avoid jump-starting the vehicle with improper voltage, as this may damage sensitive electronics like the PCM.
- Address any stored trouble codes promptly to prevent cascading failures in related systems.
- Inspect the PCM connector seals regularly to keep moisture and debris out of the connection.
- Use only manufacturer-approved add-on electrical equipment to minimize the risk of system malfunctions.
Frequently Asked Questions
Can I replace the PCM in my 2002 GMC Safari myself?
While the physical replacement is straightforward, programming the new PCM requires specialized tools and software. If you’re not equipped for this step, a professional technician can complete the process. A pre-programmed unit simplifies installation.
Why does my 2002 GMC Safari stall after a battery disconnect?
Disconnecting the battery can reset the PCM, causing temporary driveability issues as it relearns fuel and ignition parameters. This is normal and typically resolves after a short drive cycle. Persistent stalling may indicate a deeper problem.
What happens if I install an unprogrammed PCM in my 2002 GMC Safari?
An unprogrammed PCM won’t communicate with the vehicle’s sensors or systems, leading to a no-start condition or erratic performance. Programming is required to match the module to your vehicle’s VIN and ensure proper operation.
If your 2002 GMC Safari’s PCM has failed, you have options for repair or replacement. A refurbished unit can restore function at a lower cost, while a new module ensures long-term reliability. Given the programming requirements, choosing a pre-configured replacement saves time and avoids potential complications. Consider your vehicle’s needs and your comfort level with the process when deciding the best path forward.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2002 GMC Safari with a lifetime warranty, free shipping and no core charge. The full GMC Safari module lineup covers other engine configurations as well.
Final Thoughts
The 2002 GMC Safari relies on its PCM for smooth engine and transmission operation. If you’re facing symptoms like stalling, no-start conditions, or module-specific trouble codes, addressing the issue promptly can prevent further damage. Whether you opt for a repair or replacement, understanding the steps involved ensures a successful outcome for your vehicle.
