2002 Cadillac DeVille PCM Replacement: What Owners Need to Know

If your 2002 Cadillac DeVille is experiencing unexplained stalling, rough idling, or a refusal to start, the Powertrain Control Module (PCM) may be at fault. This critical component acts as the brain of your vehicle’s engine and transmission, coordinating fuel delivery, ignition timing, and shift points based on real-time sensor inputs. When the PCM fails, symptoms can range from subtle performance issues to complete drivability loss. Replacing the module involves more than just swapping hardware—it requires careful handling to avoid damage and precise programming to ensure the vehicle operates correctly afterward. Understanding the process helps you make informed decisions, whether you’re tackling the job yourself or working with a shop. This guide covers what the PCM does, where it’s located, the steps involved in replacement, and how to recognize failure before it leaves you stranded.

What the PCM Does in a 2002 Cadillac DeVille

In the 2002 Cadillac DeVille, the Powertrain Control Module (PCM) integrates engine and transmission control into a single unit, a design that streamlines communication between systems. The PCM continuously monitors inputs from sensors like the oxygen sensor, throttle position sensor, and crankshaft position sensor to adjust fuel injection, ignition timing, and shift scheduling. This ensures optimal performance, fuel efficiency, and emissions compliance. When the PCM malfunctions, the vehicle may exhibit symptoms such as hesitation under acceleration, erratic shifting, or even a failure to start. Because the PCM also interfaces with the On-Board Diagnostic (OBD) system, a faulty module can prevent proper communication with scan tools, complicating diagnostics. For owners considering a replacement, replacement engine computers for the DeVille are available pre-programmed to match the vehicle’s specific calibration, reducing the risk of post-installation issues. Without a functioning PCM, the DeVille’s engine and transmission cannot operate in sync, leading to drivability problems that worsen over time.

Where the PCM Is Located and What Replacement Involves

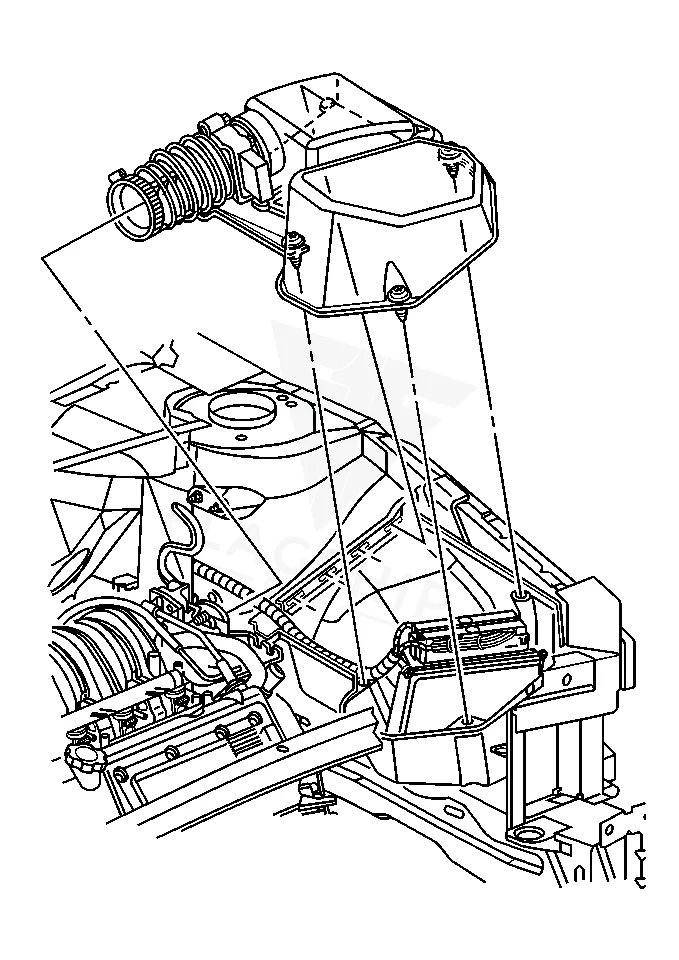

The Powertrain Control Module in the 2002 Cadillac DeVille is located in the engine compartment, typically mounted near the firewall or on the driver’s side fender well. Accessing the module involves removing the necessary covers and disconnecting the wiring harness. According to factory labor estimates, replacing the PCM takes approximately 2.1 hours, which includes removing the old unit, installing the new one, and ensuring all connectors are secure. After installation, a 0.5-hour relearn procedure is required to synchronize the module with the vehicle’s systems. The factory cautions that the ignition must be turned off before disconnecting or reconnecting the PCM connectors or power sources, such as the battery or fuse, to prevent internal damage. Proper torque on mounting bolts is essential to avoid vibration-related issues, though specific torque values are not provided in the labor guidelines.

Programming Requirements After Replacement

After replacing the Powertrain Control Module in a 2002 Cadillac DeVille, the new unit must undergo a programming procedure to ensure it communicates correctly with the vehicle’s systems. This involves using a Tech 2 scan tool and selecting the Off-Board Programming Adapter as the ECU location. The module must be programmed with the vehicle’s remaining engine oil life and automatic transmission fluid life; if these values are not transferred, the system defaults to 100%, which may lead to premature service reminders. In some cases, reprogramming may be necessary to address communication issues with non-Tech 2 diagnostic equipment, as outlined in factory service bulletins. However, a VIN-programmed replacement unit arrives ready to install, eliminating the need for these additional steps and reducing the risk of programming errors. This ensures the vehicle operates as intended without further calibration delays.

Symptoms of a Failing PCM

A failing Powertrain Control Module in the 2002 Cadillac DeVille can manifest in several ways, often mimicking other mechanical or electrical issues. Common symptoms include intermittent stalling, especially at idle or during deceleration, and rough running or misfires that don’t correlate with spark plug or fuel system problems. The vehicle may also experience erratic shifting, such as delayed or harsh gear changes, due to the PCM’s role in transmission control. Another telltale sign is a no-start condition where the engine cranks but fails to fire, often accompanied by a lack of fuel pump activation or spark. Diagnostic trouble codes related to the PCM itself, such as internal control module memory checksum error, may appear, indicating corruption in the module’s memory. Additionally, the vehicle may fail to communicate with generic OBD-II scan tools, preventing access to oxygen sensor test data or other critical diagnostics. These symptoms can worsen over time, leading to increased drivability issues or even a complete loss of engine control if left unaddressed.

Module Trouble Codes on the 2002 Cadillac DeVille

The 2002 Cadillac DeVille’s Powertrain Control Module may set specific trouble codes when internal faults occur. These codes typically indicate issues with the module’s memory, processing, or communication functions, rather than sensor or actuator failures. Addressing them often requires module replacement or reprogramming.

Factory Service Bulletins Worth Knowing

Factory service bulletin #04-06-04-022 addresses an issue where some 2002 Cadillac DeVille models fail to communicate oxygen sensor test results when using non-Tech 2 diagnostic equipment. Customers may notice that generic scan tools cannot retrieve OBD-II test data, complicating emissions-related repairs. The bulletin recommends reprogramming the PCM to resolve the communication problem. This highlights the importance of using the correct diagnostic tools and ensuring the module is properly calibrated to avoid unnecessary service delays.

Protecting the PCM in Your 2002 Cadillac DeVille

• Keep your vehicle’s charging system in good condition to prevent voltage spikes that may damage the PCM.
• Ensure all electrical connections, including grounds and PCM connectors, are clean and secure to avoid intermittent faults.
• Avoid jump-starting the vehicle with improper voltage or polarity, as this can cause irreversible module damage.
• Address diagnostic trouble codes promptly, especially those related to the PCM, to prevent cascading failures.
• Inspect the PCM connector seals regularly to prevent moisture intrusion, which can lead to corrosion.
• Use a battery maintainer during long periods of inactivity to prevent low-voltage conditions that may affect module performance.

Frequently Asked Questions

Why does my 2002 Cadillac DeVille stall intermittently, and could the PCM be the cause?

Intermittent stalling in the 2002 Cadillac DeVille may stem from a failing PCM, particularly if the issue occurs without a clear pattern. The PCM controls fuel injection and ignition timing, so corruption in its memory or processing can lead to erratic engine behavior. If other potential causes, such as fuel pump or sensor failures, have been ruled out, the PCM should be inspected for internal faults or trouble codes.

How do I know if my DeVille’s PCM needs to be reprogrammed rather than replaced?

Reprogramming the PCM may resolve issues like communication errors with diagnostic tools or incorrect sensor data processing. If the vehicle exhibits symptoms such as failed emissions tests due to missing oxygen sensor data or erratic shifting, reprogramming should be attempted before replacement. However, if the PCM sets internal fault codes like P0601 or P0603, replacement is often the more reliable solution.

What happens if I don’t record the engine oil life before replacing the PCM in my DeVille?

If the remaining engine oil life is not programmed into the new PCM, the system will default to 100%, which may cause premature or delayed service reminders. While this won’t affect drivability, it can lead to unnecessary oil changes or, conversely, extended intervals that may harm the engine. Always record the oil life percentage before replacing the module.

Can I replace the PCM in my 2002 Cadillac DeVille myself, or should I take it to a shop?

Replacing the PCM is technically feasible for a skilled DIYer, but it requires careful handling to avoid damaging the module or connectors. The ignition must be off during disconnection, and the new module must be programmed with the vehicle’s existing data. If you’re unfamiliar with automotive electronics, a professional shop can ensure the job is done correctly, including the required relearn procedure.

Why does my DeVille’s transmission shift erratically after a jump-start, and is the PCM involved?

Erratic shifting after a jump-start may indicate voltage spikes that corrupted the PCM’s memory or calibration. The PCM controls transmission shift points, so any disruption to its programming can lead to harsh or delayed gear changes. If the issue persists after resetting the system, the PCM may need to be inspected for damage or reprogrammed to restore proper function.

If your 2002 Cadillac DeVille is experiencing symptoms of PCM failure, you have options for addressing the issue. A repair shop can diagnose the problem and perform the replacement, including the necessary programming and relearn steps. Alternatively, a pre-programmed replacement module eliminates the need for additional calibration, ensuring a smoother installation process. Given the labor time involved, choosing a unit that arrives ready to install can save time and reduce the risk of post-replacement complications.

Flagship One stocks a refurbished, VIN-programmed PCM for the 2002 Cadillac DeVille with a lifetime warranty, free shipping and no core charge. The full Cadillac DeVille module lineup covers other engine configurations as well.

Final Thoughts

The Powertrain Control Module plays a critical role in the operation of your 2002 Cadillac DeVille, managing everything from fuel delivery to transmission shifts. Recognizing the signs of failure early can help you avoid unexpected breakdowns and costly repairs. Whether you opt for a shop installation or a DIY approach, understanding the process and requirements ensures a successful outcome. With proper care and timely intervention, your DeVille can continue to deliver reliable performance for years to come.
