2002 Buick Century 3.1L PCM ECM Replacement and Programming Guide

If your 2002 Buick Century 3.1L is experiencing drivability issues, no-start conditions, or communication failures with scan tools, the Powertrain Control Module (PCM) may be at fault. The PCM is the central computer that controls engine and transmission operation. This guide explains what the PCM does in your Century, where it is located, how replacement is performed, and what programming steps are required. You will also learn about common symptoms, factory service bulletins, and how a pre-programmed replacement unit from Flagship One can simplify the repair.

What the PCM Does in a 2002 Buick Century

The Powertrain Control Module (PCM) in the 2002 Buick Century 3.1L is the primary electronic controller that manages engine fuel injection, ignition timing, idle speed, and transmission shift patterns. It receives input from sensors such as the crankshaft position sensor, throttle position sensor, and oxygen sensors, then adjusts outputs to maintain performance and emissions compliance. When the PCM fails, the vehicle may not start, may stall unpredictably, or may set internal diagnostic trouble codes. For a reliable repair, you can choose from replacement PCMs for the Buick Century that are pre-programmed to your vehicle’s VIN, avoiding the complex factory programming procedure.

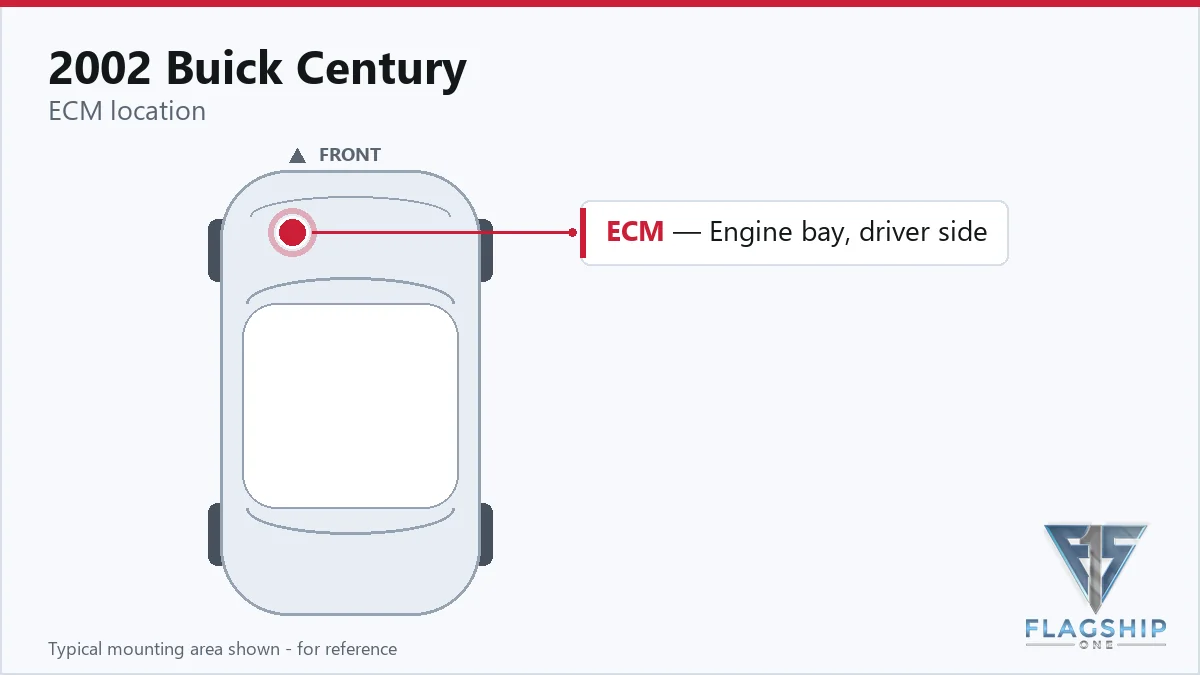

Where the PCM Is Located and What Replacement Involves

The PCM on the 2002 Buick Century 3.1L is located next to the air cleaner assembly, accessible from the engine bay. Replacement involves disconnecting the battery, removing the air cleaner duct for access, unbolting the module, and disconnecting the two large wiring harness connectors. The factory book time for PCM removal and replacement (R&R) is 0.9 hours. After installation, a PCM relearn procedure is required, which adds 0.5 hours of book time. Ensure all connections are clean and secure before reconnecting the battery.

Programming Requirements After Replacement

Factory programming for the 2002 Buick Century 3.1L PCM requires using a Tech 2 scan tool with the Off-Board Programming Adapter. The procedure involves selecting ‘Reprogram ECU’ and choosing the Off-Board Programming Adapter as the ECU location. The ignition must remain on during the entire process; turning it off if programming is interrupted can damage the module. GM cautions against programming unless directed by a service procedure or bulletin. Flagship One eliminates this step by delivering a VIN-programmed replacement unit that is ready to install and drive, with no post-install programming needed.

Symptoms of a Failing PCM

A failing PCM in the 2002 Buick Century 3.1L often causes a no-start condition where the engine cranks but does not fire. The vehicle may stall while driving, experience erratic shifting, or fail to communicate with diagnostic scan tools. Misfire codes and fuel system faults may appear without a clear sensor cause. One common internal fault is internal control module fault P0601, which indicates a memory check failure. Other symptoms include intermittent electrical issues, the check engine light illuminating with module-related codes, and the transmission not shifting properly.

Module Trouble Codes on the 2002 Buick Century

The following diagnostic trouble codes are internal to the PCM and indicate module-level faults rather than sensor or circuit problems. These codes are listed in the factory documentation for the 2002 Buick Century 3.1L:

Factory Service Bulletins Worth Knowing

General Motors issued service bulletin #04-06-04-024 (April 2004) for the 2002 Buick Century 3.1L. The bulletin addresses a condition where the PCM will not properly communicate on-board diagnostic freeze frame information to non-Tech 2 service or test equipment. Customers may comment that their vehicle’s engine cannot be properly serviced or tested using generic equipment. The correction involves reprogramming the PCM using a Tech 2 scan tool. This bulletin underscores the importance of using the correct programming equipment and following factory procedures.

Protecting the PCM in Your 2002 Buick Century

• Maintain the charging system; a failing alternator can send voltage spikes that damage the PCM.
• Keep battery and engine ground connections clean and tight to ensure stable voltage.
• Avoid jump-starting the vehicle with a running donor vehicle; use a battery pack or follow proper jump-start procedures.
• Address any diagnostic trouble codes promptly, especially module-related codes like P0601-P1683.
• Inspect the PCM connector seals and harness for corrosion or damage; replace if compromised.
• When replacing the battery, disconnect the negative cable first and wait a few minutes before disconnecting the positive cable.

Frequently Asked Questions

Can I replace the PCM in my 2002 Buick Century 3.1L myself?

Yes, the PCM is accessible next to the air cleaner assembly and can be replaced with basic hand tools. The book labor time is 0.9 hours. However, you must ensure the replacement module is programmed for your vehicle. A pre-programmed unit from Flagship One avoids the need for a scan tool and factory programming.

What does the PCM relearn procedure involve for a 2002 Buick Century?

After installing a new PCM, the vehicle may need a relearn procedure to synchronize the module with the engine and transmission. The factory book time for this is 0.5 hours. It typically involves starting the engine and letting it idle until the idle stabilizes, then driving under specific conditions. A pre-programmed unit from Flagship One may reduce or eliminate this step.

Why does my 2002 Buick Century have code P0601 after a PCM replacement?

Code P0601 indicates an internal control module memory failure. If it appears after replacement, the module may not have been programmed correctly or the programming was interrupted. Using a VIN-programmed unit from Flagship One ensures the module is correctly configured before installation, preventing this code.

When your 2002 Buick Century 3.1L needs a PCM, you have two main options: repair the existing module or replace it with a refurbished unit. Repair is often not cost-effective for internal failures. A refurbished replacement from Flagship One is pre-programmed to your VIN, saving the 0.5-hour relearn and avoiding complex programming steps. This model-specific solution gets your Century back on the road reliably.

Flagship One stocks a refurbished, VIN-programmed PCM for the 2002 Buick Century with a lifetime warranty, free shipping and no core charge. The full Buick Century module lineup covers other engine configurations as well.

Final Thoughts

The 2002 Buick Century 3.1L PCM is a critical component that controls engine and transmission operation. When it fails, symptoms like no-start, stalling, and internal trouble codes appear. Replacement is straightforward with the module located next to the air cleaner, but programming is essential. Flagship One offers VIN-programmed units that eliminate post-install programming, making the repair simpler and more reliable for your Century.
