2001 Oldsmobile Silhouette PCM Replacement & Programming Guide
The Powertrain Control Module on your 2001 Silhouette is the central computer managing engine timing, fuel delivery, and transmission shifting. Internal electrical failures from voltage spikes or heat cycling can corrupt memory, causing drivability issues.
Quick Summary
- PCM failure triggers check engine lights and no-start conditions on the 3.4L Silhouette
- Factory replacement requires 1.1 hours R&R labor plus 0.5 hours relearn procedure
- The module sits next to the air cleaner, requiring careful connector handling
- Flagship One sells VIN-programmed units so dealer programming steps are unnecessary
- Module-internal codes like P0601 indicate internal memory problems requiring replacement
If your 2001 Oldsmobile Silhouette won’t start, stalls unexpectedly, or shows a dead dashboard when scanning, the Powertrain Control Module may be the culprit. This guide explains what the PCM does, where it lives, how replacement works, and why factory programming matters. You’ll learn the symptoms that point to module failure, the labor involved, and what Flagship One does differently to save you a dealer visit.
What the PCM Does in a 2001 Oldsmobile Silhouette
The Powertrain Control Module serves as the brain of your 3.4L Silhouette’s engine management system. It processes inputs from dozens of sensors—including coolant temperature, throttle position, and oxygen sensors—to calculate fuel delivery and ignition timing in real time. This unit also controls the automatic transmission shifting points and communicates with the anti-lock brake system. When internal circuitry degrades from heat cycling or voltage stress, the module loses the ability to process sensor data correctly, resulting in drivability complaints that pure diagnostics cannot resolve. Replacement requires replacement engine computers for the Silhouette that match the original calibration, and the replacement must be programmed to your specific vehicle identification number to function properly.

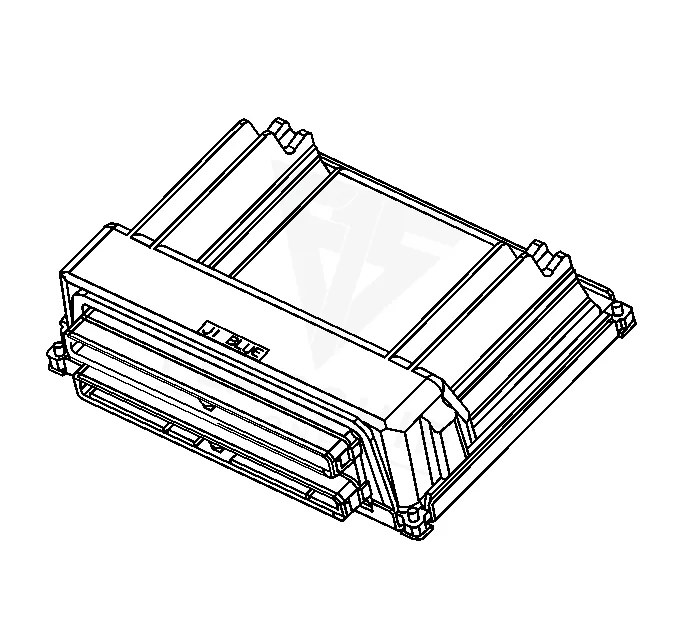

Where the PCM Is Located and What Replacement Involves
The factory service manual specifies removing the control module from next to the air cleaner assembly on the 2001 Silhouette. Access requires disconnecting the battery, removing the air intake ductwork, and unplugging the module electrical connectors before extraction. Book time for the removal and reinstall procedure is 1.1 hours. After installation, the relearn procedure adds 0.5 hours to align the new module with your vehicle’s unique calibration. Ensure all connections are fully seated and the mounting hardware is secure before reassembly—the factory cautions against disturbing the DLC or PCM connections during any programming attempt.
How to Reach the PCM on the 2001 Oldsmobile Silhouette
- Remove the coolant reservoir retaining fastener.
- Remove the coolant reservoir and set aside.
- Remove the 3 bolts from the strut brace.
- Remove the left front strut brace.
- Loosen the two bolts the PCM cover and remove the PCM cover.
- Remove the PCM from the air cleaner housing.
- Disconnect the PCM electrical connectors.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 1.1 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Powertrain Control Module R&R | All configurations | 1.1 hr |
Programming Requirements After Replacement
The factory requires a specific programming sequence after any PCM replacement. Technicians must select Tech 2, choose Reprogram ECU, and use the Off-Board Programming Adapter as the ECU location. The vehicle must remain on with the ignition on throughout the entire process—the factory explicitly warns never to turn off the ignition if programming is interrupted. Critically, programming should only be attempted when directed by a service procedure or GM service bulletin; programming at other times will not permanently address customer concerns. Flagship One units ship as a VIN-programmed replacement unit, meaning the programming steps are completed before the module arrives, eliminating this dealer-only procedure for your Silhouette.
Symptoms of a Failing PCM
When the PCM fails on this generation of minivan, the most common complaints include hard starting or no-start conditions where the engine cranks but won’t fire. Stalling after startup, especially under load, frequently occurs alongside illuminated check engine lights. Misfire codes such as P0300 and P0301 appear because the module miscalculates fuel delivery. Scan tool communication often fails entirely—the tool cannot establish a link with the ECM. In some cases, the transmission refuses to shift out of gear or shifts harshly, as the module loses control of the shift solenoids. internal memory check sum error is one of several module-internal codes that indicate permanent internal damage requiring replacement rather than repair.
Module Trouble Codes on the 2001 Oldsmobile Silhouette
The 2001 Silhouette’s PCM may store module-internal trouble codes when internal circuitry fails. These codes include P0601, P0602, P0620, P0650, P1626, P1630, P1631, P1635, P1639, P1640, P1644, P1650, P1660, P1670, and P1689. Unlike conventional sensor codes, these indicate corruption within the control module itself and point directly toward replacement.
| Code | Meaning | Full Guide |
|---|---|---|
| P0601 | Internal memory checksum error | Full P0601 guide → |
| P0602 | Control module programming error | Full P0602 guide → |
| P0620 | Module-internal fault | Full P0620 guide → |
| P0650 | Module-internal fault | Full P0650 guide → |
| P1626 | Module-internal fault | — |
| P1630 | Module-internal fault | — |
| P1631 | Module-internal fault | — |
| P1635 | Module-internal fault | — |
| P1639 | Module-internal fault | — |
| P1640 | Module-internal fault | — |
| P1644 | Module-internal fault | — |
| P1650 | Module-internal fault | — |
Factory Service Bulletins Worth Knowing
Two factory bulletins directly address PCM concerns for this vehicle. Bulletin #04-06-04-024 addresses freeze frame communication failures when using non-TECH2 equipment, recommending PCM reprogramming. Bulletin #02-06-04-057E provides warranty labor operation assignments for control module reprogramming procedures, standardizing repair times across dealers. A third bulletin, #07-00-89-043, restricts the use of non-GM control modules and calibrations, emphasizing that only factory-issued components should be installed.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 04-06-04-024 | Powertrain Control Module (PCM) Will Not Properly Communicate On-Board Diagnostic Freeze Frame | Some customers may comment that their vehicle’s engine is unable to be properly serviced or tested using non-TECH2® (Generic) service or test equipment. When… |
| 02-06-04-057 | Warranty Admin. – Labor Operation Assignments for All Control Module Reprogramming – (Mar 2, 20 | — |
| 07-00-89-043 | Warranty Admin. – Use of Parts and Components (Including Control Module Calibrations) Not Issue | — |
Protecting the PCM in Your 2001 Oldsmobile Silhouette
- Maintain steady charging system voltage—alternator overcharging or undercharging stresses the PCM circuitry
- Keep all ground connections clean and tight at the engine and firewall points
- Avoid jump-starting from a running donor vehicle; use proper boost procedures to prevent voltage spikes
- Address any stored trouble codes promptly before they cascade into module damage
- Inspect and protect connector seals from moisture intrusion, especially near the air cleaner area
- Use only OEM or quality aftermarket modules—mismatched calibrations cause drivability issues
Frequently Asked Questions
Can I swap a used PCM from another 2001 Silhouette into my vehicle?
A used PCM from another vehicle will require GM dealer programming to match your specific VIN and configuration. Without proper programming, the engine may not start or run properly. Flagship One units arrive pre-programmed to your VIN, avoiding this step entirely.
My scan tool won’t communicate with the 2001 Silhouette—is the PCM dead?
Failed communication often indicates PCM power or ground issues, but it can also mean the module itself has failed. Check battery voltage first, then verify all fuses and grounds. If those check good, internal module failure is likely and replacement becomes necessary.
Will a new PCM fix my P0601 code on the 2001 Silhouette?
P0601 indicates an internal memory check sum error within the control module—this is not a sensor or wiring fault. The only permanent fix is replacing the PCM with a properly programmed unit. Clearing the code without replacement will result in its return.
When your 2001 Silhouette requires a new PCM, you face two paths: a dealer-ordered unit with mandatory programming appointments, or a VIN-programmed replacement that arrives ready to install. Flagship One specializes in engine computers for this exact minivan application, shipping units pre-matched to your vehicle identification number. Either route costs similar money, but only one lets you complete the repair at home without a tech line appointment.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2001 Oldsmobile Silhouette with a lifetime warranty, free shipping and no core charge. The full Oldsmobile Silhouette module lineup covers other engine configurations as well.
Final Thoughts
The 2001 Oldsmobile Silhouette depends on a functioning Powertrain Control Module for reliable operation. Whether it leaves you stranded or triggers warning lights, module failure demands a correct replacement and proper programming. Flagship One stocks VIN-programmed units for this specific application, letting you complete the repair with confidence and get back on the road without dealer scheduling delays.
