2001 GMC Yukon XL PCM Replacement Overview
The Powertrain Control Module in a 2001 GMC Yukon XL manages engine timing, fuel delivery, and transmission shifts. Failure can result in loss of power, misfires, or engine shutdowns.
Quick Summary
- PCM replacement requires 0.5 hours of relearn time.
- Engine Control Module reset takes 0.3 hours.
- Engine Control Module R&R needs 1.4 hours.
- All modules must be powered off during disconnect.
- Replacement units arrive VIN‑programmed.
If your 2001 GMC Yukon XL has been showing odd performance or warning lights, the Powertrain Control Module (PCM) or Engine Control Module (ECM) could be at fault. This guide explains what these modules do, why a replacement might be needed, and what steps you can expect during the swap. By the end, you’ll understand the key labor times, factory cautions, and how a pre‑programmed unit can simplify the process.
What the PCM Does in a 2001 GMC Yukon XL
The PCM on a 2001 GMC Yukon XL coordinates engine and transmission functions, ensuring smooth acceleration and efficient fuel use. It processes inputs from sensors and sends commands to actuators. replacement engine computers for the Yukon XL If the PCM fails, the vehicle may lose power or display diagnostic trouble codes. Proper function is critical for drivability and fuel economy.
Where the PCM Is Located and What Replacement Involves
The PCM is located in the engine bay behind the instrument panel. Replacing it involves disconnecting the battery, removing the PCM cover, and unplugging the module connector. After removal, the new unit is installed in the same location, reconnected, and secured. The relearn procedure for a Yukon XL takes 0.5 hours. The Engine Control Module reset is 0.3 hours, while a full R&R takes 1.4 hours.

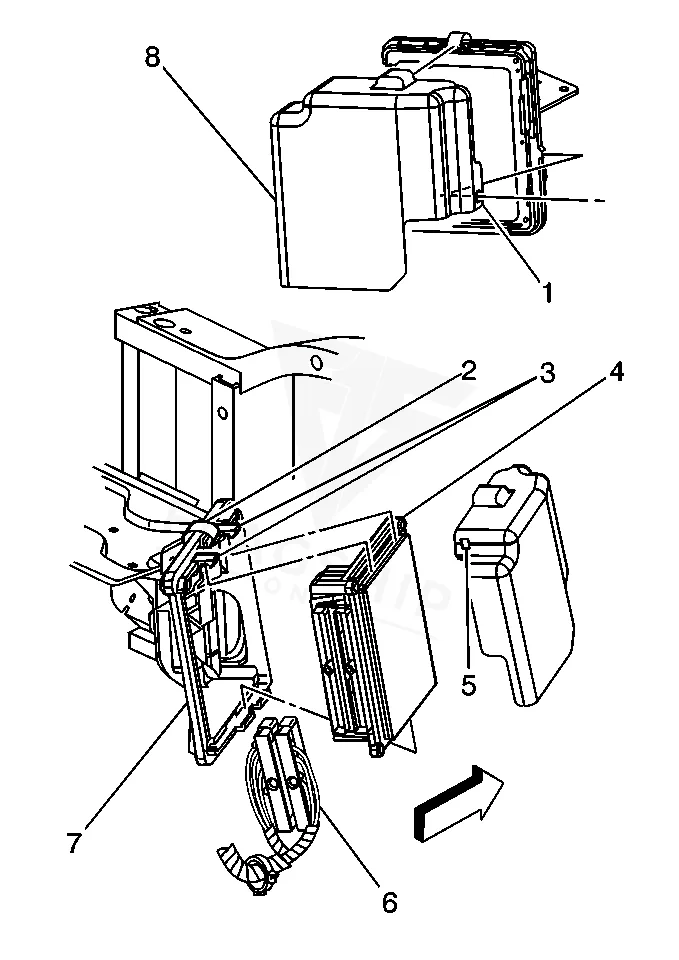

How to Reach the PCM on the 2001 GMC Yukon XL
- Remove any debris from the PCM connector surfaces before.
- Release the PCM cover mounting holes (1,5) away.
- Release the PCM cover from the mounting.
- Remove the PCM cover.
- Disconnect the PCM harness connectors.
- Release the spring latch from the PCM.
- Release the PCM mounting tabs from the.
- Remove the PCM from the engine.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module Relearn | Yukon XL 1500 | 0.5 hr |
| Powertrain Control Module Relearn | Yukon XL 2500 | 0.5 hr |
| Engine Control Module Relearn | Yukon XL 1500 | 0.5 hr |
| Engine Control Module Relearn | Yukon XL 2500 | 0.5 hr |
| Engine Control Module Reset | Yukon XL 1500 | 0.3 hr |
| Engine Control Module Reset | Yukon XL 2500 | 0.3 hr |
| Engine Control Module R&R | Yukon XL 1500 | 1.4 hr |
| Engine Control Module R&R | Yukon XL 2500 | 1.4 hr |
Programming Requirements After Replacement
After the module swap, the factory requires a relearn of the PCM and reset of the ECM. Flagship One units arrive VIN‑programmed, so the relearn step is already completed. a VIN‑programmed replacement unit This eliminates the need for additional programming tools or time.
Symptoms of a Failing PCM
Common symptoms of a failing PCM or ECM in a 2001 GMC Yukon XL include a sudden loss of power, engine stalling, misfire codes, or a dead scan‑tool connection. The presence of trouble code Powertrain Control Module EEPROM Failure often points to an unprogrammed or malfunctioning module.
Module Trouble Codes on the 2001 GMC Yukon XL
The following internal trouble codes are associated with the PCM and ECM in the 2001 GMC Yukon XL:
Factory Service Bulletins Worth Knowing
Warranty Admin. – Labor Operation Assignments for All Control Module Reprogramming (#02-06-04-057, #02-06-04-057E) and Warranty Admin. – Use of Parts and Components (Including Control Module Calibrations) Not Issued Through General Motors (#07-00-89-043, #07-00-89-043).
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 02-06-04-057 | Warranty Admin. – Labor Operation Assignments for All Control Module Reprogramming – (Mar 2, 20 | — |
| 07-00-89-043 | Warranty Admin. – Use of Parts and Components (Including Control Module Calibrations) Not Issue | — |
Protecting the PCM in Your 2001 GMC Yukon XL
- Maintain a healthy charging system to protect module electronics.
- Keep all connector grounds clean and free of corrosion.
- Avoid jump‑starting with excessive voltage spikes.
- Address diagnostic codes promptly to prevent further damage.
- Inspect and replace damaged connector seals regularly.
Frequently Asked Questions
What should I do if my 2001 GMC Yukon XL shows a P0601 code after a PCM replacement?
A P0601 code indicates the PCM EEPROM is not programmed. With a VIN‑programmed unit from Flagship One, this should not occur. If it does, verify the module is correctly seated and that the vehicle’s battery is fully charged before testing.
Can I drive my 2001 GMC Yukon XL immediately after a PCM swap?
Yes, after the relearn procedure (0.5 hours) the vehicle should function normally. However, monitor for any warning lights or performance changes and address them promptly.
Is the Engine Control Module reset required for every PCM replacement?
The reset (0.3 hours) is recommended to clear any residual data. Flagship One units are pre‑programmed, but performing the reset ensures the module operates with the correct settings.
Whether you choose a professional repair or a refurbished replacement, understanding the PCM and ECM in your 2001 GMC Yukon XL helps you make an informed decision. With the right knowledge and a pre‑programmed unit, you can minimize downtime and keep your vehicle running smoothly.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2001 GMC Yukon XL with a lifetime warranty, free shipping and no core charge. The full GMC Yukon XL module lineup covers other engine configurations as well.
Final Thoughts
A 2001 GMC Yukon XL’s PCM and ECM play a vital role in engine performance. If issues arise, consider a pre‑programmed replacement to streamline the repair. Take the next step toward reliable operation today.
