2001 Chrysler Concorde PCM/ECM – Replacement & Programming Guide
The Powertrain Control Module (PCM) in your 2001 Chrysler Concorde 2.7L manages engine and transmission functions. Failure can cause drivability issues, no-start conditions, and trouble codes P0600 or P0601. The module must be programmed with the vehicle’s original VIN and mileage after replacement.
Quick Summary
- The PCM R&R labor time is 0.4 hours, and a relearn procedure adds 0.5 hours.
- Factory programming requires a DRB scan tool to enter the original VIN and mileage.
- Trouble codes P0600 and P0601 indicate internal PCM faults, not external sensor issues.
- Chrysler TSB #08-030-06 Rev. A covers PCM initialization after replacement.
- Flagship One units arrive pre-programmed, eliminating the need for dealer-level programming.
If your 2001 Chrysler Concorde 2.7L is experiencing drivability problems, no-start conditions, or check-engine lights with codes P0600 or P0601, the Powertrain Control Module (PCM) may be at fault. The PCM is the central computer that controls engine timing, fuel delivery, and transmission shifting. Replacing it is a straightforward repair, but the new module must be programmed with your vehicle’s original VIN and mileage to function correctly. This guide explains what the PCM does, where it is located, the labor times involved, and what to expect during replacement. You will also learn about the factory service bulletin that applies to this model and how to avoid common pitfalls. Whether you plan to repair or replace the module, understanding the process helps you make an informed decision.
What the PCM Does in a 2001 Chrysler Concorde
The Powertrain Control Module (PCM) in your 2001 Chrysler Concorde 2.7L is the main engine and transmission computer. It receives input from sensors such as the crankshaft position sensor, throttle position sensor, and oxygen sensors, then adjusts fuel injection, ignition timing, and shift points accordingly. The PCM also monitors system health and stores diagnostic trouble codes when it detects a fault. Because the Concorde uses a drive-by-wire throttle and a four-speed automatic transmission, the PCM plays a critical role in smooth operation. When the module fails internally, it may lose communication with the scan tool, cause erratic shifting, or prevent the engine from starting. Replacing a faulty PCM restores proper control, but the new unit must be initialized with the vehicle’s identity. That is where replacement PCMs for the Chrysler Concorde come into play, as they must be programmed with the original VIN and mileage to match the vehicle’s security and emissions systems.

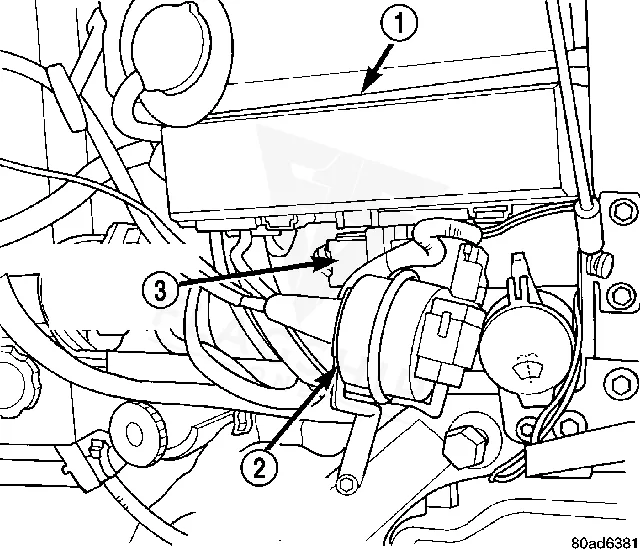

Where the PCM Is Located and What Replacement Involves
The PCM on the 2001 Chrysler Concorde 2.7L is typically mounted in the engine bay, often on the driver side near the strut tower or behind the battery. Access requires removing any covers or air intake ducting that may obstruct the module. According to labor guides, the removal and replacement (R&R) of the PCM is book-timed at 0.4 hours. After installation, a relearn procedure is necessary, which adds 0.5 hours of labor. The relearn process involves using a scan tool to initialize the module and may require a specific drive cycle to adapt the idle and fuel trims. Ensure the battery is fully charged before beginning, as low voltage can interrupt the programming sequence. The connector is keyed and should be inspected for corrosion or bent pins before reconnecting.
How to Reach the PCM on the 2001 Chrysler Concorde
- Remove washer bottle filler neck.
- Remove Transmission Control Module (TCM) reposition out of the way.
- Disconnect PCM 2 40-way connector.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module Relearn | 300M | 0.5 hr |
| Powertrain Control Module Relearn | Concorde | 0.5 hr |
| Powertrain Control Module R&R | 300M | 0.4 hr |
| Powertrain Control Module R&R | Concorde | 0.4 hr |
| Engine Control Module Relearn | 300M | 0.5 hr |
| Engine Control Module Relearn | Concorde | 0.5 hr |
| Engine Control Module R&R | 300M | 0.4 hr |
| Engine Control Module R&R | Concorde | 0.4 hr |
Programming Requirements After Replacement
After installing a new PCM in your 2001 Chrysler Concorde 2.7L, the factory procedure requires using a DRB scan tool to reprogram the module with the vehicle’s original identification number (VIN) and the original mileage. This step is critical for the immobilizer system and emissions compliance. Without this programming, the engine may not start or may run poorly. Flagship One supplies a VIN-programmed replacement PCM that arrives with the correct VIN and mileage already loaded, so the DRB scan tool step is already completed. You still need to perform the relearn procedure (0.5 hours) to allow the module to adapt to your specific engine and transmission, but the initial programming is done before shipping.
Symptoms of a Failing PCM
A failing PCM in the 2001 Chrysler Concorde 2.7L can produce a range of symptoms. The engine may crank but not start, or it may stall unexpectedly while driving. You might notice erratic transmission shifting, such as harsh engagement or failure to shift gears. The check engine light may illuminate with codes that do not clear, or the scan tool may fail to communicate with the module entirely. Misfire codes, fuel trim issues, or a no-spark condition can also point to PCM failure. One specific internal fault is internal memory checksum error P0601, which indicates the module’s internal memory has corrupted data. This code typically requires PCM replacement because the fault is inside the computer itself, not in an external sensor or wiring.
Module Trouble Codes on the 2001 Chrysler Concorde
The following trouble codes are stored internally within the PCM of your 2001 Chrysler Concorde 2.7L. These codes indicate internal module faults rather than external sensor or circuit issues.
| Code | Meaning | Full Guide |
|---|---|---|
| P0600 | Module-internal fault | Full P0600 guide → |
| P0601 | Internal memory checksum error | Full P0601 guide → |
Factory Service Bulletins Worth Knowing
Chrysler issued Technical Service Bulletin #08-030-06 Rev. A regarding Powertrain Control Module Initialization for the 2001 Chrysler Concorde. This bulletin outlines the proper procedure for initializing the PCM after replacement, which includes using the DRB scan tool to program the VIN and mileage. Following this bulletin ensures the module communicates correctly with the vehicle’s systems and that the immobilizer and emissions functions are properly set. The bulletin also emphasizes the importance of a fully charged battery during the initialization process to avoid interruptions.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 08-030-06 Rev. A | 08-030-06 Rev. A Powertrain Control Module Initialization | — |
Protecting the PCM in Your 2001 Chrysler Concorde
- Keep the battery and charging system in good condition; low voltage can damage the PCM’s internal memory.
- Clean and tighten all ground connections and PCM connector pins to ensure stable electrical contact.
- Avoid jump-starting the vehicle with a running donor car; voltage spikes can harm the module.
- Address diagnostic trouble codes promptly, especially P0600 and P0601, before they lead to a no-start condition.
- Inspect the PCM connector seal for cracks or moisture intrusion, as water damage is a common failure cause.
Frequently Asked Questions
Can I replace the PCM in my 2001 Chrysler Concorde 2.7L myself?
Yes, the PCM is accessible in the engine bay and the R&R is book-timed at 0.4 hours. However, you will need a DRB scan tool or equivalent to program the new module with the VIN and mileage unless you purchase a pre-programmed unit. The relearn procedure adds 0.5 hours and may require a specific drive cycle.
What does trouble code P0601 mean on a 2001 Chrysler Concorde?
P0601 is an internal control module memory checksum error. It indicates that the PCM’s internal memory has corrupted data. This is a hardware fault inside the module itself, not a wiring or sensor issue. Replacement of the PCM is typically required to resolve this code.
Is the PCM the same as the ECM on this vehicle?
On the 2001 Chrysler Concorde 2.7L, the Powertrain Control Module (PCM) combines the functions of an engine control module (ECM) and transmission control module (TCM) into one unit. The terms are often used interchangeably in service literature, but the official name is PCM.
When your 2001 Chrysler Concorde 2.7L needs a new PCM, you have two main options: have a dealer or shop install a blank module and program it using the DRB scan tool, or choose a pre-programmed replacement that arrives ready to install. The pre-programmed route saves the programming labor and the need for specialized equipment. For this model, the R&R takes 0.4 hours and the relearn adds 0.5 hours, so a pre-programmed unit can reduce total downtime.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2001 Chrysler Concorde with a lifetime warranty, free shipping and no core charge. The full Chrysler Concorde module lineup covers other engine configurations as well.
Final Thoughts
The 2001 Chrysler Concorde 2.7L relies on its PCM for engine and transmission control. If you encounter no-start, stalling, or codes P0600 or P0601, replacement is often the solution. With a pre-programmed PCM from Flagship One, the factory programming step is already handled, leaving only the 0.5-hour relearn procedure. This approach gets your Concorde back on the road with minimal hassle.
