2001 Chrysler 300M PCM and ECM Relearn Overview
In the 2001 Chrysler 300M, the Powertrain Control Module (PCM) and Engine Control Module (ECM) manage engine timing, fuel delivery, and transmission shifting. A failure in either computer can trigger loss of driveability, cause diagnostic trouble codes, and prevent the vehicle from starting until the module is reprogrammed or replaced.
Quick Summary
- PCM/ECM relearn times are typically 0.4 to 0.5 hours for the 300M.
- Factory service bulletins address PCM initialization procedures.
- Flagship One units arrive VIN‑programmed, eliminating post‑install reprogramming.
- Common codes include P0600 and P0601, indicating communication faults.
When a 2001 Chrysler 300M experiences no‑start conditions, rough idle, or unexpected transmission shifts, the underlying cause often points to the vehicle’s control computers. The Powertrain Control Module and Engine Control Module work together to interpret sensor data and command the engine and transmission. A malfunction may require the modules to be removed, replaced, and then relearned to the vehicle’s parameters. This guide explains what the modules do, how a replacement is performed, the factory‑specified relearn steps, and what symptoms typically appear. By the end, you will understand the procedural requirements and why a VIN‑programmed replacement from Flagship One can simplify the repair.
What the PCM Does in a 2001 Chrysler 300M
The Powertrain Control Module in the 2001 Chrysler 300M acts as the central brain for both engine and transmission, processing inputs from sensors to control fuel injection, ignition timing, and gear shifts. It also stores calibration data that must match the vehicle’s VIN and mileage. When the PCM fails, the engine may stall, shift erratically, or refuse to start, and diagnostic trouble codes appear. The Engine Control Module performs similar functions for the engine alone, handling idle control, emissions, and spark timing. Both modules rely on accurate internal maps; any mismatch after replacement triggers a relearn cycle. Proper operation is essential for emissions compliance and drivability, making the modules critical components in this vehicle. 2001 Chrysler 300M replacement PCM and ECM ensures that the replacement units align with factory specifications.
What Replacing the PCM Involves

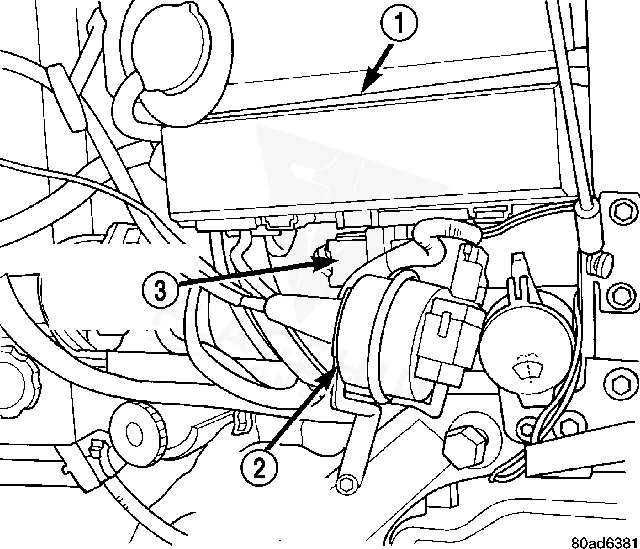

How to Reach the PCM on the 2001 Chrysler 300M
- Remove washer bottle filler neck.
- Remove Transmission Control Module (TCM) reposition out of the way.
- Disconnect PCM 2 40-way connector.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module Relearn | 300M | 0.5 hr |
| Powertrain Control Module Relearn | Concorde | 0.5 hr |
| Powertrain Control Module R&R | 300M | 0.4 hr |
| Powertrain Control Module R&R | Concorde | 0.4 hr |
| Engine Control Module Relearn | 300M | 0.5 hr |
| Engine Control Module Relearn | Concorde | 0.5 hr |
| Engine Control Module R&R | 300M | 0.4 hr |
| Engine Control Module R&R | Concorde | 0.4 hr |
Programming Requirements After Replacement
After installing a new PCM or ECM in the 2001 Chrysler 300M, the factory procedure calls for a relearn using the DRB® scan tool to write the vehicle’s original VIN and mileage into the module. The relearn steps are listed as 0.5 hours for both Powertrain Control Module and Engine Control Module in the service data. Flagship One supplies units that arrive already programmed with the correct VIN and mileage, so the technician can skip the VIN entry step and proceed directly to the relearn cycle. This reduces shop time and the chance of data entry error. a VIN-programmed replacement unit streamlines the post‑install process.
Symptoms of a Failing PCM
A failing PCM or ECM in the 2001 Chrysler 300M often presents as a no‑start condition, rough idle, or unexpected transmission shifting. Drivers may notice stalling at idle, loss of power during acceleration, or the check engine light flashing. Diagnostic scans typically reveal communication failures such as communication failure with PCM or the generic P0600 code, indicating that the scan tool cannot talk to the module. In some cases, the vehicle may limp in reduced power mode, and the transmission may remain locked in a single gear. Prompt attention to these signs can prevent further drivability issues.
Module Trouble Codes on the 2001 Chrysler 300M
The following trouble codes are commonly recorded by the 2001 Chrysler 300M when its PCM or ECM experiences a fault:
| Code | Meaning | Full Guide |
|---|---|---|
| P0600 | Module-internal fault | Full P0600 guide → |
| P0601 | Internal memory checksum error | Full P0601 guide → |
Factory Service Bulletins Worth Knowing
Service Bulletin #08-030-06 Rev. A addresses Powertrain Control Module Initialization for the 300M, providing guidance on the required relearn steps after replacement. This bulletin outlines the use of the DRB® scan tool and the specific data to be entered.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 08-030-06 Rev. A | 08-030-06 Rev. A Powertrain Control Module Initialization | — |
Protecting the PCM in Your 2001 Chrysler 300M
- Maintain a healthy charging system to avoid voltage drops that can corrupt module memory.
- Inspect and clean all ground points and connector pins regularly.
- Avoid jump‑starting the vehicle with high‑voltage sources that may spike the PCM/ECM.
- Address any diagnostic trouble codes promptly before they lead to module failure.
- Keep connector seals intact to prevent moisture intrusion.
- Replace worn battery cables to ensure stable power delivery to the modules.
Frequently Asked Questions
Can a 2001 Chrysler 300M run with a used PCM?
A used PCM may operate if it is correctly programmed to match the vehicle’s VIN and mileage. However, without a VIN‑programmed unit, additional reprogramming steps are required, and there is a risk of mismatched calibration data.
What diagnostic tool is required for the PCM relearn on a 2001 Chrysler 300M?
The factory‑specified tool is the DRB® scan tool, which can write the original VIN and mileage into the new module and initiate the relearn sequence.
How long does a PCM replacement typically take on a 2001 Chrysler 300M?
Labor data list the removal and replacement (R&R) of the Powertrain Control Module at 0.4 hours, with an additional 0.5‑hour relearn step after installation.
Will a failing ECM trigger transmission problems in the 2001 Chrysler 300M?
Yes, because the ECM shares data with the PCM, a malfunction can affect shift timing and cause the transmission to behave erratically.
Is it necessary to replace both PCM and ECM if one fails?
It is not always required; each module can be serviced independently if the other is functioning correctly and no shared fault codes are present.
When the PCM or ECM in your 2001 Chrysler 300M needs service, you can choose a brand‑new factory‑programmed unit or a refurbished replacement that meets the same specifications. Both options require the standard relearn procedure, but a Flagship One VIN‑programmed part eliminates the need for manual VIN entry, saving time in the shop. Evaluate the condition of the existing module and consider the warranty coverage when deciding which path best fits your repair plan.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2001 Chrysler 300M with a lifetime warranty, free shipping and no core charge. The full Chrysler 300M module lineup covers other engine configurations as well.
Final Thoughts
The 2001 Chrysler 300M relies on its PCM and ECM for reliable engine and transmission operation. Understanding the relearn requirements and common symptoms can help you address issues efficiently. Whether you opt for a new or refurbished module, ensure the proper procedure is followed to keep your vehicle running smoothly.
