2000 Chevrolet Express PCM Replacement Guide
The Powertrain Control Module controls fuel delivery, ignition timing, and sensor data in the 2000 Chevrolet Express. A failure often leads to erratic engine behavior or loss of communication with the vehicle’s diagnostics.
Quick Summary
- The PCM is the main engine computer for the 2000 Chevrolet Express.
- Replacement requires 1.1 hours of labor for R&R or 0.5 hours for relearn.
- Battery must be disconnected to avoid electrostatic discharge.
- The module manages all engine sensors and actuators.
- Reprogramming is normally unnecessary with a VIN‑programmed unit.
If your 2000 Chevrolet Express is experiencing engine hesitation, stalling, or unexpected diagnostic codes, the Powertrain Control Module might be the culprit. This guide explains what the PCM does, how to locate and replace it, and what factory steps are normally required. By following these steps you can restore reliable operation and avoid costly mistakes.
What the PCM Does in a 2000 Chevrolet Express
The Powertrain Control Module is the central brain of the 2000 Chevrolet Express, coordinating fuel injection, ignition timing, and sensor inputs to keep the engine running smoothly. It communicates with the vehicle’s dashboard and diagnostic systems. Because it controls critical engine functions, a fault can cause poor performance or even a no‑start condition. replacement powertrain computers for the 2000 Chevrolet Express is often needed when the PCM fails or is damaged.

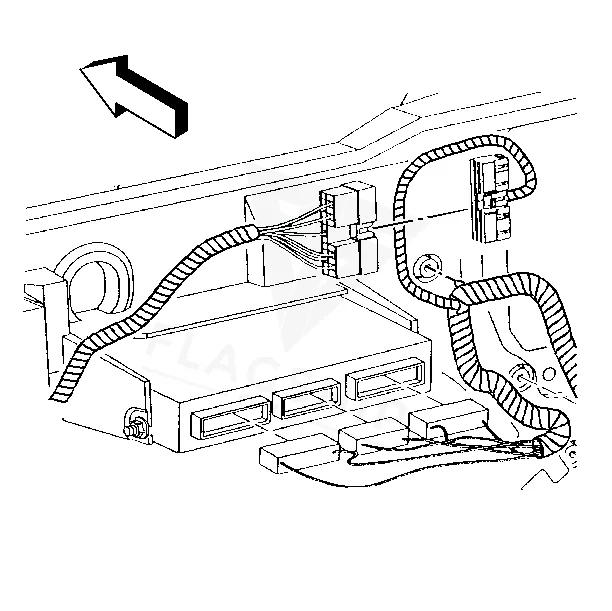

Where the PCM Is Located and What Replacement Involves
The PCM is located beneath the dash on the driver’s side. Removing it requires disconnecting the negative battery cable, then removing the mounting hardware. Reinstallation takes 1.1 hours for a complete R&R or 0.5 hours for a relearn, matching the labor book times listed for the Express 1500, 2500, and 3500 models.
How to Reach the PCM on the 2000 Chevrolet Express
- Disconnect the negative battery cables.
- Remove the engine cover.
- Disconnect the harness connectors from the powertrain control.
- Remove the PCM mounting nuts.
- Remove the PCM from the mounting bracket.
- Remove the PCM mounting hardware.
- Slide the PCM into the mounting bracket.
- Disconnect PCM/Reuse.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | Express 1500 | 1.1 hr |
| Powertrain Control Module R&R | Express 2500 | 1.1 hr |
| Powertrain Control Module R&R | Express 3500 | 1.1 hr |
| Powertrain Control Module Relearn | Express 1500 | 0.5 hr |
| Powertrain Control Module Relearn | Express 2500 | 0.5 hr |
| Powertrain Control Module Relearn | Express 3500 | 0.5 hr |
| Engine Control Module R&R | Express 1500 | 1.1 hr |
| Engine Control Module R&R | Express 2500 | 1.1 hr |
Programming Requirements After Replacement
After the module is installed, the factory procedure demands the engine run until the Engine Coolant Temperature exceeds 77 °C (170 °F) to complete the auto TDC offset. Flagship One units come VIN‑programmed, so these steps are already satisfied. The system automatically calibrates during normal operation. a VIN‑programmed replacement unit eliminates the need for manual reflash.
Symptoms of a Failing PCM
Common signs of a bad PCM on a 2000 Chevrolet Express include misfires, rough idle, stalling, and failure to start. The module may also generate trouble codes such as P0601, which indicates a PCM internal error. When this code appears, the engine may misbehave and diagnostic tools may show communication problems.
Module Trouble Codes on the 2000 Chevrolet Express
The 2000 Chevrolet Express can produce several internal PCM trouble codes that help pinpoint the root cause of engine issues.
Factory Service Bulletins Worth Knowing
Service Bulletin #99-06-04-053, dated Oct 26 1999, addresses PCM reprogramming procedures for the Express series.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 99-06-04-053 | Info – PCM Reprogramming – (Oct 26, 1999) | — |
Protecting the PCM in Your 2000 Chevrolet Express
- Keep the battery’s charging system clean and in good condition.
- Inspect and clean all electrical connections and grounds.
- Avoid sudden voltage spikes from jump‑starting the vehicle.
- Address any diagnostic codes promptly to prevent further damage.
- Maintain protective seals on connector housings.
Frequently Asked Questions
Will a new PCM automatically work with my 2000 Chevrolet Express?
A new PCM that is VIN‑programmed is ready to use after installation. The factory procedure of running the engine to 77 °C is already completed during programming.
What happens if I forget to disconnect the battery before removing the PCM?
Failure to disconnect the battery can cause electrostatic discharge, damaging the new PCM or other electronics. Always disconnect the negative battery cable first.
Do I need a diagnostic scan tool after installing the new PCM?
A scan tool can confirm the module is communicating correctly and clear any residual codes, but the new PCM should operate without additional programming.
When the 2000 Chevrolet Express shows symptoms of a faulty PCM, you can choose a repair or opt for a refurbished replacement that meets the same specifications. Either path will restore reliable engine operation without compromising safety.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2000 Chevrolet Express with a lifetime warranty, free shipping and no core charge. The full Chevrolet Express module lineup covers other engine configurations as well.
Final Thoughts
For the 2000 Chevrolet Express, replacing the Powertrain Control Module is a straightforward solution to many engine issues. A VIN‑programmed unit from Flagship One ensures you skip the manual reprogramming step and get back on the road quickly.
