1999 Oldsmobile Intrigue PCM Reprogramming and Replacement Guide
The PCM in the 1999 Oldsmobile Intrigue controls engine timing, fuel delivery, and powertrain functions. A failure can lead to misfires, stalling, or loss of engine performance. When the module is damaged, it must be replaced and reprogrammed to maintain vehicle operation.
Quick Summary
- PCM replacement takes 0.9 hours for removal and 0.9 hours for reinstallation.
- Relearn procedures for both engine and powertrain modules require 0.5 hours each.
- Keep the freeze‑frame data and engine oil life records before disconnecting the PCM.
- Do not touch connector pins during removal to prevent electrostatic damage.
If you’re experiencing engine or powertrain irregularities in your 1999 Oldsmobile Intrigue, the PCM may be the culprit. This guide walks you through locating the module, removing it safely, and reprogramming it without losing critical data. By following the steps below, you’ll understand what the PCM does, why its replacement matters, and how to keep your vehicle running smoothly after the swap.
What the PCM Does in a 1999 Oldsmobile Intrigue
The PCM in the 1999 Oldsmobile Intrigue manages ignition timing, fuel injection, and powertrain coordination to keep the engine running efficiently. replacement PCM for the 1999 Oldsmobile Intrigue When the PCM malfunctions, it can cause starting problems, misfires, or erratic power delivery. Proper replacement restores the module’s ability to interpret sensor data and send correct commands to the engine and transmission. It is essential to preserve the vehicle’s stored data, such as freeze‑frame records and remaining engine oil life, to avoid resetting the car’s maintenance schedule.

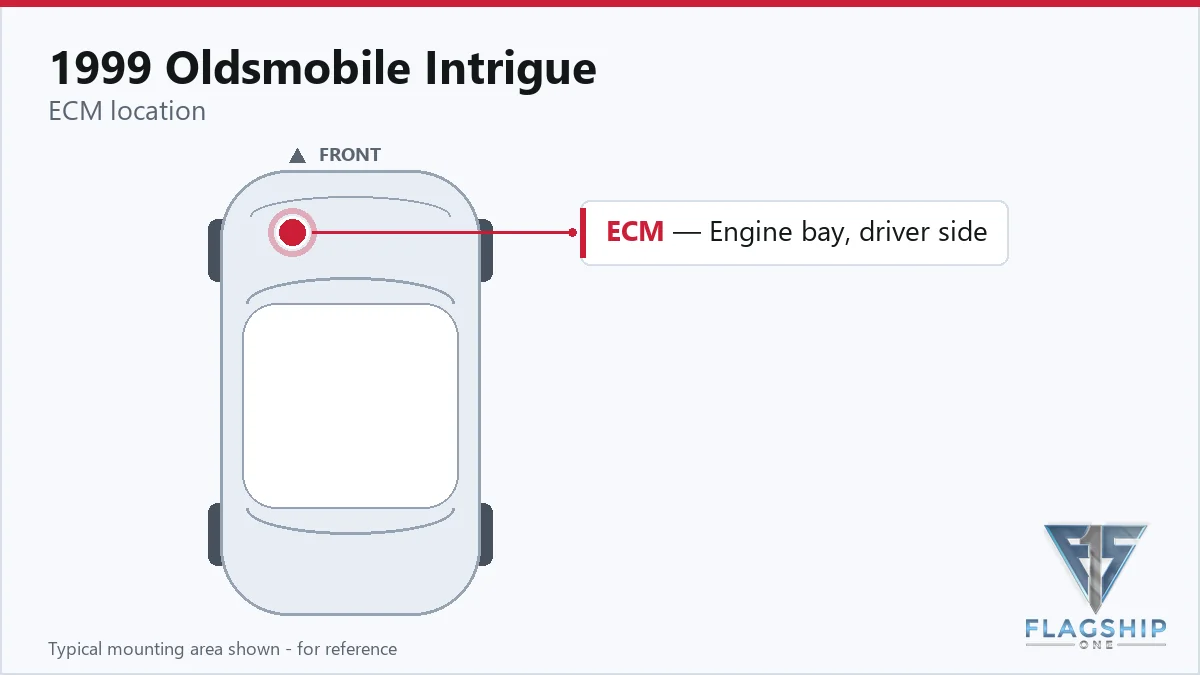

Where the PCM Is Located and What Replacement Involves
The PCM sits adjacent to the air cleaner assembly, accessed by removing the air cleaner cover and disconnecting the connector. The factory removal procedure requires 0.9 hours for removal and the same time for reinstallation. When replacing, follow the book times exactly, ensuring the connector is fully seated before powering the unit back on. The access steps involve only basic removal of the air cleaner housing, no special tools beyond a standard socket set are needed.
How to Reach the PCM on the 1999 Oldsmobile Intrigue
- Disconnect the negative battery cable.
- Disconnect the IAT sensor electrical connector.
- Remove the 3 bolts from the inner fender brace and remove the.
- Loosen the clamp securing the air intake duct to the air.
- Remove the air intake duct from the throttle body.
- Remove the 2 screws from the air cleaner.
- Remove the air cleaner housing cover.
- Disconnect the PCM connectors.
- Position the inner fender brace and reinstall the 3.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 0.9 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Powertrain Control Module R&R | One | 0.9 hr |
Programming Requirements After Replacement
After the new PCM is installed, the factory procedure calls for reprogramming the module to match the vehicle’s VIN and to restore the remaining engine oil life data. Flagship One units arrive already VIN‑programmed, so these steps are already completed. The replacement unit is pre‑configured, eliminating the need for additional programming or data capture during service. This reduces the risk of data loss and streamlines the repair process.
Every VIN-programmed replacement unit from Flagship One arrives with these steps already completed.
Symptoms of a Failing PCM
Common signs that the PCM in a 1999 Oldsmobile Intrigue has failed include engine stalling, sudden loss of power, misfire codes, or a dead scan‑tool connection. The module may also trigger a check‑engine light without obvious sensor faults. If the trouble code P0601 appears, it indicates a PCM communication issue that often requires a replacement. These symptoms can lead to poor fuel economy and unreliable vehicle performance.
Module Trouble Codes on the 1999 Oldsmobile Intrigue
The PCM can generate internal trouble codes that help diagnose its condition. The following list details the codes that may appear during a diagnostic scan of the 1999 Oldsmobile Intrigue’s engine control module.
| Code | Meaning | Full Guide |
|---|---|---|
| P0601 | Internal memory checksum error | Full P0601 guide → |
Factory Service Bulletins Worth Knowing
Service Bulletin #99-06-04-053, dated Oct 26, 1999, addresses PCM reprogramming procedures for the 1999 Oldsmobile Intrigue. The bulletin outlines steps for capturing freeze‑frame data and ensuring the engine oil life is retained during module replacement. Following the bulletin helps maintain compliance with manufacturer guidelines and preserves vehicle maintenance records.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 99-06-04-053 | Info – PCM Reprogramming – (Oct 26, 1999) | — |
Protecting the PCM in Your 1999 Oldsmobile Intrigue
- Keep the charging system within spec to avoid voltage spikes that can damage the PCM.
- Regularly inspect and clean connector grounds to maintain reliable electrical contact.
- Avoid using high‑voltage jump‑start cables directly on the PCM connector pins.
- Address any diagnostic codes promptly to prevent prolonged module stress.
- Seal connector housings properly to protect against moisture and debris.
Whether you choose a repair shop to handle the PCM swap or opt for a refurbished replacement from Flagship One, understanding the process helps you make an informed decision. A correctly installed and programmed module will keep your 1999 Oldsmobile Intrigue running reliably, and a VIN‑programmed unit eliminates the risk of data loss.
Flagship One stocks a refurbished, VIN-programmed PCM for the 1999 Oldsmobile Intrigue with a lifetime warranty, free shipping and no core charge. The full Oldsmobile Intrigue module lineup covers other engine configurations as well.
Final Thoughts
By following the steps outlined for the 1999 Oldsmobile Intrigue, you can replace and reprogram the PCM with confidence. Preserve the vehicle’s data and avoid unnecessary downtime by using a pre‑programmed replacement unit or a skilled technician.
