1999 Jeep Cherokee PCM Replacement Guide
In the 1999 Jeep Cherokee the Powertrain Control Module (PCM) governs fuel delivery, ignition timing and transmission shift commands. When the PCM fails, the engine may not start, stall unexpectedly, or trigger communication error codes, compromising drivability and emissions compliance.
Quick Summary
- PCM resides in the engine compartment and controls engine and transmission functions.
- Typical labor for removal and installation is half an hour per operation.
- Factory re‑learn steps require 0.5 hour for ECM relearn after replacement.
- Flagship One units arrive pre‑programmed with the original VIN and mileage.
When a 1999 Jeep Cherokee exhibits intermittent power loss, rough idle, or scan‑tool communication failures, the Powertrain Control Module often deserves a closer look. This guide explains what the PCM does, where it lives, how a replacement is performed, and what programming is needed afterward. By the end, you’ll understand the steps involved and how a correctly programmed unit can return your Cherokee to reliable operation.
What the PCM Does in a 1999 Jeep Cherokee
The Powertrain Control Module in the 1999 Jeep Cherokee acts as the brain for both engine and transmission, processing sensor data to adjust fuel, spark and shift timing. Its proper function is essential for smooth acceleration, fuel efficiency and emissions compliance. A malfunction can lead to no‑start conditions, erratic shifting, or diagnostic trouble codes. Understanding this role helps you see why a faulty unit may require replacement, especially when replacement engine computers for the 1999 Jeep Cherokee are being considered.
Where the PCM Is Located and What Replacement Involves
The PCM is mounted inside the engine compartment of the 1999 Jeep Cherokee. Removing the unit typically takes about half an hour, as listed in the labor guide for Powertrain Control Module R&R. After disconnecting the electrical connectors and any mounting bolts, the new module can be positioned and secured. Reinstallation follows the same steps, and the labor estimate for the Engine Control Module R&R is also 0.5 hour. No additional torque specifications were provided, so standard fastener tightening practices apply.

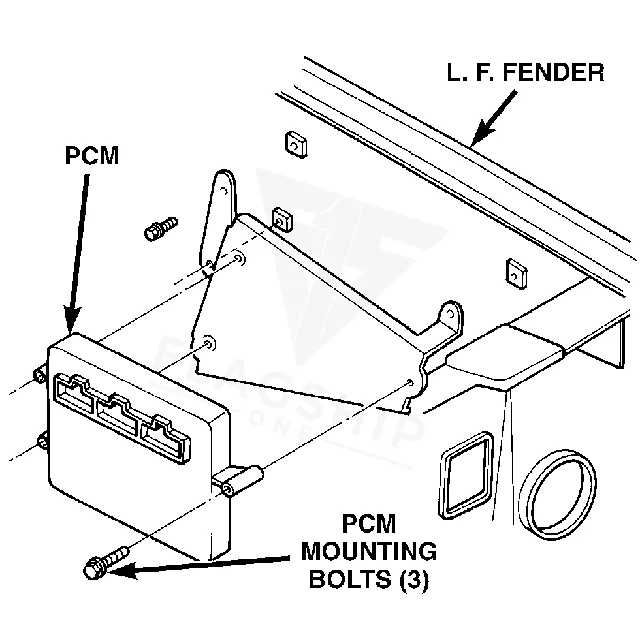

How to Reach the PCM on the 1999 Jeep Cherokee
- Disconnect negative battery cable at battery.
- Remove cover over electrical connectors.
- Unplug the three 32 – way connectors.
- Remove three PCM mounting bolts and remove PCM from vehicle.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 0.5 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 0.5 hr |
Programming Requirements After Replacement
Once the PCM is installed, the factory procedure calls for a reprogramming step using a DRB scan tool to input the vehicle’s original VIN and mileage. Flagship One supplies a a VIN-programmed replacement unit that already contains this data, eliminating the need for on‑site reprogramming and reducing the chance of errors.
Symptoms of a Failing PCM
A failing PCM in the 1999 Jeep Cherokee may cause the engine to refuse to start, stall during acceleration, or produce erratic shift behavior. You might also see a loss of communication with the scan tool, often accompanied by a diagnostic trouble code such as P0601 communication fault that indicates internal processor issues. Addressing these symptoms promptly can prevent further drivetrain complications.
Factory Service Bulletins Worth Knowing
Service Bulletin #08-030-06 Rev. A outlines the Powertrain Control Module Initialization procedure required after a replacement. Following this bulletin ensures the new PCM syncs correctly with the vehicle’s existing systems.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 08-030-06 Rev. A | 08-030-06 Rev. A Powertrain Control Module Initialization | — |
Protecting the PCM in Your 1999 Jeep Cherokee
- Maintain a healthy charging system to avoid voltage drops that can stress the PCM.
- Keep all ground connections clean and securely fastened.
- Protect the electrical system from jump‑start spikes by using appropriate surge protectors.
- Address any diagnostic codes promptly to prevent prolonged exposure to fault conditions.
- Inspect connector seals regularly and replace if cracked or damaged.
Frequently Asked Questions
Can a faulty PCM cause my 1999 Jeep Cherokee to stall while driving?
Yes, because the PCM controls fuel and ignition timing, a malfunction can interrupt power delivery and cause the engine to stall unexpectedly.
Do I need special tools to replace the PCM in a 1999 Jeep Cherokee?
Standard hand tools are sufficient for removal and installation, but a DRB scan tool is required for the factory reprogramming step if the replacement unit is not pre‑programmed.
How long does it typically take to replace the PCM on my 1999 Jeep Cherokee?
The labor guide lists 0.5 hour for removal and another 0.5 hour for installation, so the total effort is usually around one hour, not including any additional diagnostic time.
When the PCM in your 1999 Jeep Cherokee needs attention, you can choose a direct repair with a new factory‑spec unit or consider a refurbished replacement that meets the same specifications. Both options require the same installation steps, but a refurbished module from Flagship One arrives pre‑programmed, streamlining the process and helping you get back on the road faster.
Flagship One stocks a refurbished, VIN-programmed PCM for the 1999 Jeep Cherokee with a lifetime warranty, free shipping and no core charge. The full Jeep Cherokee module lineup covers other engine configurations as well.
Final Thoughts
The Powertrain Control Module is a critical component of the 1999 Jeep Cherokee. Whether you opt for a new or refurbished unit, proper installation and programming are essential to restore reliable performance. Contact a qualified technician to evaluate your options.
