1998 Volkswagen Golf GTI 2.0L ECM Replacement & Programming Guide
Quick Summary
- A faulty engine control module can cause no-start conditions, stalling, or failed communication with a scan tool.
- The factory ECM is located in the plenum chamber on the right side of the vehicle.
- Replacement labor typically requires 0.3 hours for removal and installation, plus additional time for programming.
- Flagship One ships the module already programmed to your VIN, so the 0.5-hour relearn procedure is not needed.
When the engine control module in a 1998 Volkswagen Golf GTI 2.0L begins to fail, it can trigger a range of drivability problems that are often misdiagnosed. The ECM manages fuel delivery, ignition timing, and emissions controls, so even intermittent faults can leave you with a vehicle that cranks but won’t start. Replacing the module yourself is a straightforward job once you know where it lives and what the factory service steps involve. This guide walks you through the location, labor times, and the critical programming requirement that a VIN-matched replacement unit can satisfy before it ever arrives at your door.
What the PCM Does in a 1998 Volkswagen Golf GTI
The engine control module in the 1998 Golf GTI 2.0L is the central computer that governs fuel injection, spark advance, and oxygen sensor feedback. It constantly adjusts air-fuel ratios based on real-time data from the crankshaft, camshaft, and coolant temperature sensors. When the module begins to fail, you may experience hard starts, rough idle, or a complete loss of communication with diagnostic tools. Because the ECM is tied to the vehicle’s immobilizer system, simply swapping in a used unit won’t work without a factory-level adaptation. That’s why many owners turn to replacement engine computers for the Golf that arrive already coded to the car’s VIN and immobilizer data.
Where the PCM Is Located and What Replacement Involves

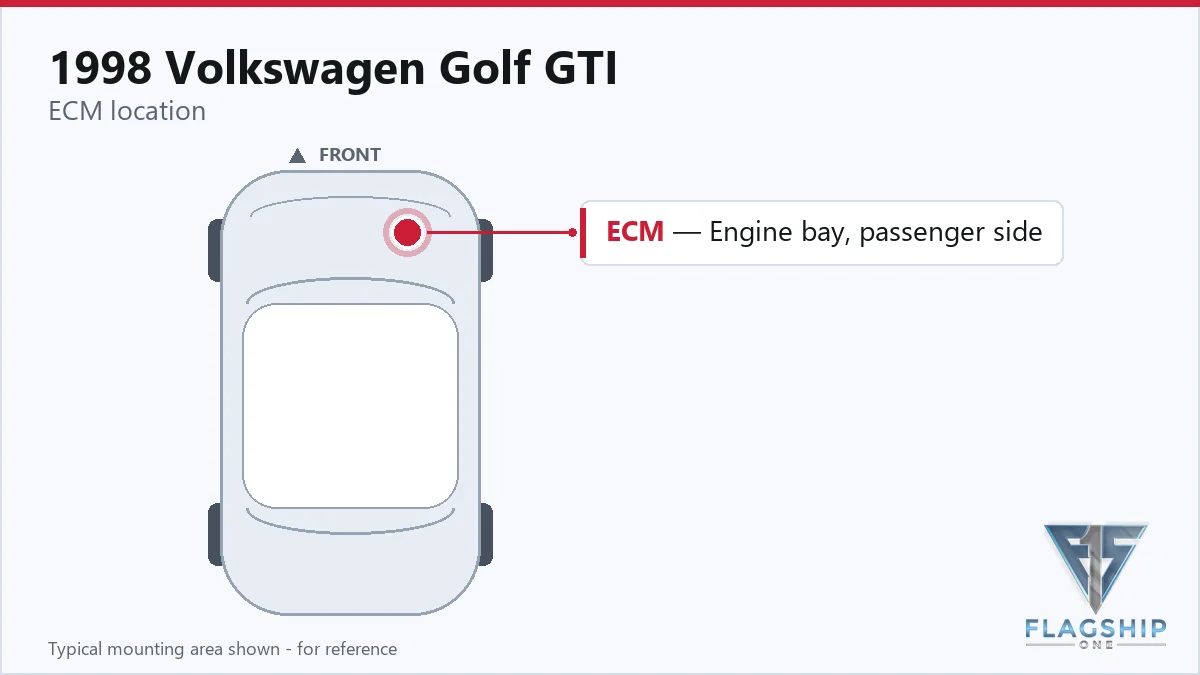

On the 1998 Golf GTI 2.0L, the engine control module sits inside the plenum chamber on the right side of the vehicle. Access requires removing the plastic cowl cover and any surrounding trim to reach the sealed housing. Factory labor guides allow 0.3 hours for removal and replacement of the module itself. If a dealer performs the job, an additional 0.5 hours is typically billed for the ECM relearn procedure, and a separate 0.3 hours for a reset function. The module is secured with simple fasteners, and the electrical connector unclips without special tools, making it a manageable task for a DIY mechanic who takes care to keep the connector pins clean and dry.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Powertrain Control Module R&R | All configurations | 0.3 hr |
| Engine Control Module R&R | All configurations | 0.3 hr |
| Engine Control Module Reset | All configurations | 0.3 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After a new ECM is physically installed, the factory procedure requires an immobilizer adaptation and a module relearn to sync the unit with the vehicle’s security system and sensors. The labor guide lists 0.5 hours for the relearn and 0.3 hours for a reset. However, a pre-programmed plug-and-play unit from Flagship One arrives with your VIN and immobilizer data already loaded. This eliminates the need for a dealership visit or specialized scan tool, so you can simply install the module and start the engine without performing the factory relearn steps.
Symptoms of a Failing PCM
A deteriorating ECM in the 1998 Golf GTI 2.0L often mimics other component failures, which can lead to unnecessary parts swapping. You might notice the engine cranking strongly but refusing to fire, or it may start and then stall without warning. Intermittent loss of communication with an OBD-II scanner is another red flag, as the module fails to respond to diagnostic requests. In some cases, the check engine light stays off even when obvious running problems exist, because the ECM can no longer command the light. If you retrieve a code like internal control module memory check sum error, it points directly to an internal ECM fault rather than an external sensor issue.
Factory Service Bulletins Worth Knowing
Volkswagen issued technical bulletin 96-07-42 to address immobilizer adaptation when replacing the ECM on all models equipped with Immobilizer 3 or 4. The bulletin outlines the necessary steps to match the new module to the vehicle’s security system, a process that typically requires a factory scan tool and access to the immobilizer PIN. Without completing this adaptation, the engine may crank but will not start. A replacement module that arrives pre-programmed to your VIN bypasses this procedure entirely, as the immobilizer data is already loaded.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 96-07-42 | TT 96-07-42 All Models With Immobilizer 3 or 4, Immobilizer Adaptation When Replacing the ECM | — |
Protecting the PCM in Your 1998 Volkswagen Golf GTI
- Keep battery terminals clean and tight to avoid voltage spikes that can damage the ECM’s internal circuitry.
- Inspect the plenum chamber drains regularly to prevent water accumulation that could reach the module housing.
- Address charging system issues promptly — a failing alternator can send excessive voltage to sensitive electronics.
- Ensure all ground connections in the engine bay are clean and secure, as poor grounds force the ECM to work harder.
- Avoid jump-starting with high-amperage boosters that can surge through the module’s power supply.
- If you notice intermittent electrical glitches, scan for codes early to catch ECM-related faults before they worsen.
Frequently Asked Questions
How do I know if the ECM in my 1998 Golf GTI 2.0L has failed?
Common signs include a no-start condition with good battery and starter, no communication with a scan tool, or a P0601 code stored in memory. You may also experience random stalling or the check engine light failing to illuminate when the key is turned on. A professional diagnosis that rules out wiring and sensor issues is recommended before replacing the module.
Can I install a used ECM from another 1998 Golf GTI?
A used ECM will not work without reprogramming the immobilizer data to match your vehicle’s VIN and security system. Even if the part numbers match, the module is locked to the original car. A pre-programmed replacement that arrives with your VIN already loaded avoids this complication.
Does the replacement ECM for my 1998 Golf GTI require dealer programming?
If you purchase a blank or used module, yes — a dealer or specialized shop must perform the immobilizer adaptation and module relearn. However, a unit that is programmed to your VIN before shipping eliminates the need for any post-installation programming, so you can install it and drive immediately.
A failing ECM doesn’t have to mean an expensive dealership visit or a lengthy diagnostic ordeal. With the module location easily accessible in the plenum chamber and a straightforward swap, the real hurdle has always been the immobilizer programming. Choosing a VIN-programmed replacement for your 1998 Golf GTI 2.0L removes that barrier, letting you complete the repair in your own garage and get back on the road the same day.
Flagship One stocks a refurbished, VIN-programmed PCM for the 1998 Volkswagen Golf GTI with a lifetime warranty, free shipping and no core charge. The full Volkswagen Golf GTI module lineup covers other engine configurations as well.
Final Thoughts
The 1998 Volkswagen Golf GTI 2.0L relies on a properly functioning ECM for everything from ignition timing to emissions compliance. When that module fails, a quick replacement in the plenum chamber can restore performance, especially when the unit arrives already coded to your car. With the immobilizer adaptation handled before shipping, you can skip the dealership programming step and finish the job on your own schedule.
