1998 GMC Savana 7.4L: PCM Replacement and Reprogramming Guide
The Powertrain Control Module (PCM) in your 1998 GMC Savana 7.4L manages fuel delivery, ignition timing, and transmission shifts. Failure may cause erratic engine behavior, poor performance, or no-start conditions.
Quick Summary
- PCM controls engine and transmission functions in the 1998 GMC Savana 7.4L.
- Replacement typically requires 1.1 hours of labor plus a 0.5-hour relearn procedure.
- Factory cautions include disconnecting the battery and avoiding electrostatic discharge.
- Internal trouble code P0601 may indicate PCM memory or processor faults.
- Flagship One units arrive pre-programmed to your vehicle’s VIN, eliminating additional setup steps.
If your 1998 GMC Savana 7.4L hesitates, stalls, or refuses to start, the Powertrain Control Module (PCM) could be the cause. This critical component governs engine and transmission operations, and its failure often leads to drivability issues. Replacing it involves careful handling to avoid damage and a required relearn procedure to ensure proper function. Understanding the process helps you make informed decisions about repairs, whether you tackle the job yourself or rely on a professional. This guide covers what the PCM does, where it’s located, and the steps needed to restore your vehicle’s performance.
What the PCM Does in a 1998 GMC Savana
The PCM in your 1998 GMC Savana 7.4L acts as the brain for engine and transmission management. It processes sensor data to control fuel injection, ignition timing, and shift points, ensuring smooth operation. A faulty PCM may disrupt these functions, leading to poor acceleration, rough idling, or transmission shifting problems. Replacement requires a compatible unit, and replacement engine computers for the Savana are designed to match the original specifications. Without a properly functioning PCM, your vehicle may fail to start or run inefficiently, making timely replacement essential.

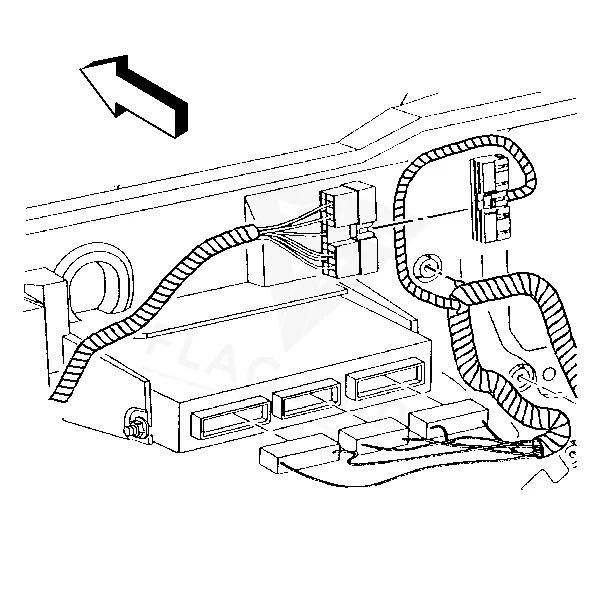

Where the PCM Is Located and What Replacement Involves
The PCM in the 1998 GMC Savana 7.4L is typically mounted in the engine bay, secured with bolts or brackets. To replace it, you’ll need to disconnect the negative battery cables first, following the factory caution to prevent electrical issues. Remove the mounting hardware and carefully disconnect the wiring harness, avoiding contact with the connector pins or circuit board to prevent electrostatic damage. Reinstallation involves reversing these steps. Labor time for PCM removal and replacement is 1.1 hours, regardless of whether your Savana is a 1500, 2500, or 3500 model. After installation, a 0.5-hour relearn procedure is required to synchronize the new module with the vehicle’s systems.
How to Reach the PCM on the 1998 GMC Savana
- Disconnect the negative battery cables.
- Remove the Engine Cover.
- Disconnect the harness connectors from the PCM.
- Remove the PCM mounting nuts.
- Remove the PCM from the mounting bracket.
- Remove the PCM mounting hardware.
- Slide the PCM into the mounting bracket.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | Savana 1500 | 1.1 hr |
| Powertrain Control Module R&R | Savana 2500 | 1.1 hr |
| Powertrain Control Module R&R | Savana 3500 | 1.1 hr |
| Powertrain Control Module Relearn | Savana 1500 | 0.5 hr |
| Powertrain Control Module Relearn | Savana 2500 | 0.5 hr |
| Powertrain Control Module Relearn | Savana 3500 | 0.5 hr |
| Engine Control Module Relearn | Savana 1500 | 0.5 hr |
| Engine Control Module Relearn | Savana 2500 | 0.5 hr |
Programming Requirements After Replacement
After replacing the PCM in your 1998 GMC Savana 7.4L, the factory procedure requires a relearn process to ensure proper communication with the engine and transmission. This typically takes 0.5 hours and may involve using a scan tool to reset adaptive values. However, a VIN-programmed replacement unit from Flagship One arrives pre-configured for your vehicle, eliminating the need for additional programming. If reprogramming fails, the factory advises checking all PCM connections before attempting the process again.
Symptoms of a Failing PCM
A failing PCM in your 1998 GMC Savana 7.4L may cause a range of symptoms, including stalling, rough idling, or a no-start condition. You might also notice poor fuel economy, transmission shifting issues, or the check engine light illuminating. In some cases, the vehicle may enter a reduced-power mode to prevent further damage. Internal faults like PCM internal control module memory errors often indicate a need for replacement. If your scan tool fails to communicate with the PCM, that’s another sign the module may have failed.
Module Trouble Codes on the 1998 GMC Savana
The 1998 GMC Savana 7.4L may log specific trouble codes when the PCM experiences internal faults. These codes help diagnose whether the module needs replacement or if other issues are contributing to the problem.
| Code | Meaning | Full Guide |
|---|---|---|
| P0601 | Internal memory checksum error | Full P0601 guide → |
Factory Service Bulletins Worth Knowing
Factory service bulletin #99-06-04-053 addresses PCM reprogramming procedures for the 1998 GMC Savana. This bulletin provides guidance on updating the module’s software to resolve potential drivability issues. If your vehicle exhibits symptoms like stalling or poor performance, checking for applicable bulletins may help identify known solutions.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 99-06-04-053 | Info – PCM Reprogramming – (Oct 26, 1999) | — |
Protecting the PCM in Your 1998 GMC Savana
- Maintain a healthy charging system to prevent voltage spikes that could damage the PCM.
- Keep battery terminals and PCM connectors clean and securely fastened to avoid electrical issues.
- Avoid jump-starting the vehicle with improper voltage, as this may harm sensitive electronics.
- Address check engine lights or trouble codes promptly to prevent further damage.
- Ensure the PCM connector seals remain intact to protect against moisture and corrosion.
Frequently Asked Questions
How do I know if my 1998 GMC Savana 7.4L PCM is failing?
Common signs include stalling, rough idling, or a no-start condition. You may also see the check engine light or experience transmission shifting issues. A scan tool can help confirm internal PCM faults like P0601.
Can I replace the PCM in my 1998 GMC Savana myself?
Replacement is possible if you’re comfortable with basic mechanical and electrical work. Follow factory cautions, including disconnecting the battery and avoiding electrostatic discharge. A relearn procedure is required afterward.
Why does my 1998 GMC Savana need a PCM relearn after replacement?
The relearn procedure ensures the new PCM synchronizes with the engine and transmission. This step adapts the module to your vehicle’s specific operating conditions, restoring proper performance.
If your 1998 GMC Savana 7.4L is experiencing PCM-related issues, you have options. A repair shop can diagnose and replace the module, including the required relearn procedure. Alternatively, a pre-programmed replacement unit ensures a straightforward installation without additional programming steps, saving time and effort.
Flagship One stocks a refurbished, VIN-programmed PCM for the 1998 GMC Savana with a lifetime warranty, free shipping and no core charge. The full GMC Savana module lineup covers other engine configurations as well.
Final Thoughts
The 1998 GMC Savana 7.4L relies on its PCM for smooth engine and transmission operation. If you’re dealing with stalling, misfires, or a no-start condition, replacing the module may restore reliability. Whether you choose a repair or a pre-programmed unit, addressing the issue promptly helps avoid further complications.
