1997 Acura RL PCM/ECM Replacement Guide
In the 1997 Acura RL the Powertrain Control Module manages fuel delivery, ignition timing and communication with the transmission. A failure can interrupt engine operation, trigger multiple diagnostic codes and cause loss of power‑train functions.
Quick Summary
- Engine Control Module removal typically requires 0.8 hours of labor.
- Powertrain Control Module replacement also takes about 0.8 hours.
- A relearn procedure for the Powertrain Control Module adds roughly 0.5 hours.
- Multiple diagnostic trouble codes may appear when the module degrades.
When a 1997 Acura RL begins to exhibit no‑start conditions, intermittent stalling or a cascade of diagnostic codes, the powertrain control module often warrants attention. This guide explains what the module does, how it is accessed, and what post‑install steps are needed so you can decide between a new OEM unit or a refurbished Flagship One replacement.
What the PCM Does in a 1997 Acura RL
The Powertrain Control Module in a 1997 Acura RL directs fuel injection, spark timing and coordinates with the transmission to keep the engine running smoothly. It also monitors sensor inputs and stores diagnostic information, making it essential for reliable performance. replacement engine control modules for 1997 Acura RL Proper function ensures the vehicle meets emissions standards and drives without unexpected shutdowns.
Where the PCM Is Located and What Replacement Involves
The PCM resides within the engine compartment, connected to the wiring harness and sensor array. Removal involves disconnecting the ECU connector, unbolting the unit and extracting it from its bracket. Installation reverses these steps and typically requires 0.8 hours of labor. After the new module is in place, a Powertrain Control Module relearn process adds another 0.5 hours to verify communication with the vehicle’s systems.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module R&R | All configurations | 0.8 hr |
| Powertrain Control Module R&R | All configurations | 0.8 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
Factory service procedures call for a full PCM reflash and a relearn of sensor calibrations after the unit is swapped. Flagship One supplies a a VIN-programmed replacement unit that arrives already matched to your vehicle, so the extensive programming steps are already completed.
Symptoms of a Failing PCM
Common signs of a failing PCM in a 1997 Acura RL include the engine refusing to start, random stalling, and a series of misfire codes such as P0301 through P0306. Communication loss with the scan tool and erratic shifting may also occur, especially when the PCM internal failure code appears.
Module Trouble Codes on the 1997 Acura RL
The following diagnostic codes are documented for the PCM in the 1997 Acura RL:
| Code | Meaning | Full Guide |
|---|---|---|
| P0603 | Keep-alive memory (KAM) error | Full P0603 guide → |
| P0606 | Module processor failure | Full P0606 guide → |
| P0627 | Module-internal fault | Full P0627 guide → |
| P0641 | Module-internal fault | Full P0641 guide → |
| P0651 | Module-internal fault | Full P0651 guide → |
| P0657 | Module-internal fault | Full P0657 guide → |
| P0661 | Module-internal fault | Full P0661 guide → |
| P0662 | Module-internal fault | Full P0662 guide → |
| P0685 | Module-internal fault | Full P0685 guide → |
| P1607 | Module-internal fault | — |
| P1608 | Module-internal fault | — |
| P1655 | Module-internal fault | — |
Factory Service Bulletins Worth Knowing
Service bulletins advise checking voltage drops on ECU grounds, measuring voltage to pinpoint problems, and using updated software for PGM testers. Additional guidance covers ECU connector terminal removal and troubleshooting multiple indicator codes across ABS, VSA, ECM/PCM and misfire detections.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| — | Use Voltage Drops to Check ECU Grounds | — |
| — | DTC P0171 and DTC P0172 Troubleshooting Tips • Measure Voltage Drops to Pinpoint Problem | — |
| — | ECU Connector Terminals Removal • More No Spark, Use Your Dwell Meter | — |
Protecting the PCM in Your 1997 Acura RL
- Maintain a healthy charging system to avoid voltage stress.
- Inspect and clean all ground straps and connector pins regularly.
- Avoid jump‑starts that can introduce voltage spikes.
- Address any diagnostic codes promptly before they worsen.
- Ensure connector seals remain intact to keep moisture out.
Frequently Asked Questions
What are the typical labor times for replacing the PCM in a 1997 Acura RL?
The book time for removing and installing the Powertrain Control Module is about 0.8 hours, with an additional 0.5 hours for the required relearn procedure.
Can a refurbished Flagship One PCM be used in place of an OEM unit for a 1997 Acura RL?
Yes, Flagship One units arrive VIN‑programmed, eliminating the need for on‑site reprogramming while meeting the vehicle’s specifications.
What diagnostic codes indicate a PCM problem in this model?
Codes such as P0603, P0606 and P0627 often point to internal PCM faults, and misfire codes P0301‑P0306 may appear when the module is compromised.
When the PCM in your 1997 Acura RL fails, you can either have a new OEM part installed or choose a Flagship One refurbished unit that arrives pre‑programmed. Both options restore the vehicle’s engine management, but the Flagship One solution can reduce shop time and simplify the re‑learn process.

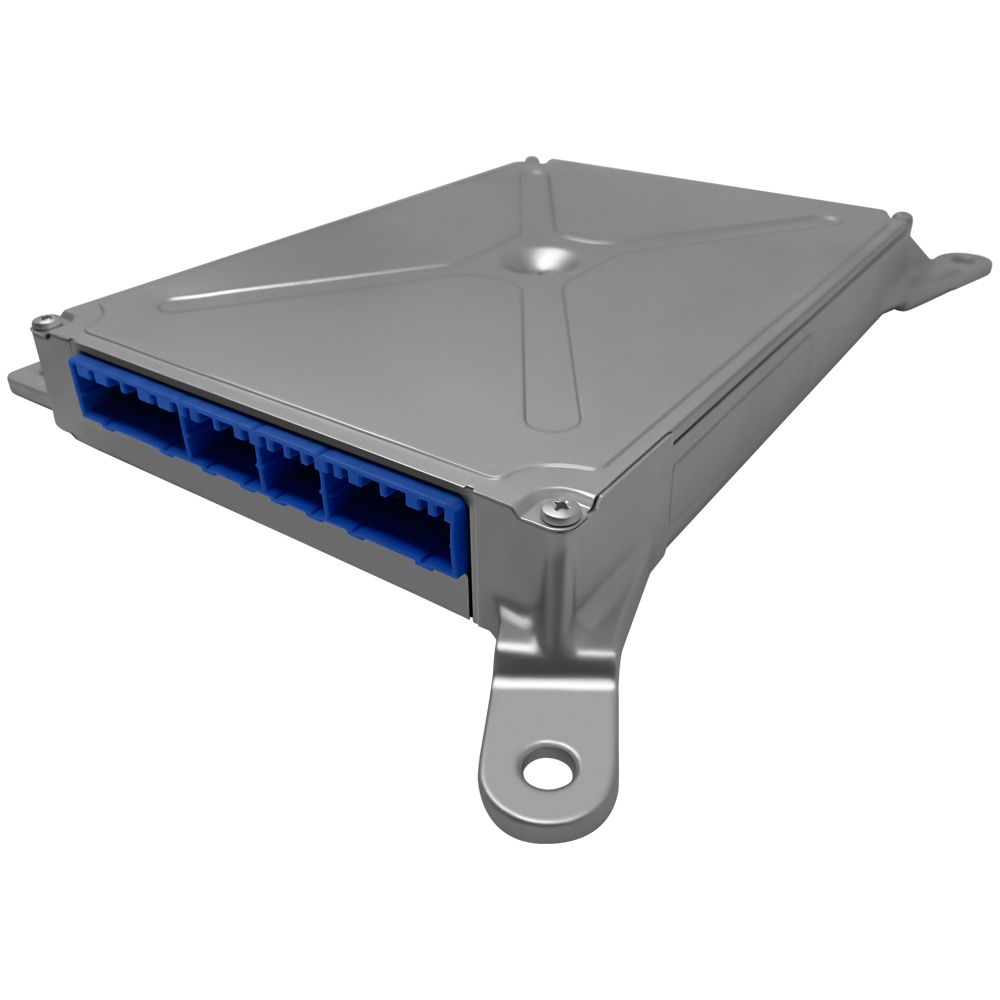

Flagship One stocks a refurbished, VIN-programmed PCM for the 1997 Acura RL with a lifetime warranty, free shipping and no core charge. The full Acura RL module lineup covers other engine configurations as well.
Final Thoughts
A faulty PCM can cripple a 1997 Acura RL, but replacing it with a correctly programmed unit restores normal operation. Consider your repair options and keep the vehicle running smoothly.
