1996 Oldsmobile Silhouette 3.4L PCM Replacement and Programming Guide
The Powertrain Control Module (PCM) in your 1996 Oldsmobile Silhouette 3.4L is the main computer that manages engine and transmission operation. When it fails, you may experience no-start, stalling, or transmission shifting problems. Internal faults like P0601 indicate the module itself needs replacement.
Quick Summary
- The PCM is located behind the right side of the instrument panel, behind the convenience center.
- Factory labor times: PCM R&R is 1.4 hours; PCM relearn is 0.5 hours.
- Do not touch connector pins or circuit board components to prevent electrostatic discharge damage.
- Two service bulletins cover PCM reprogramming (Oct 1999) and new connector service kits (Sep 1998).
- Internal trouble code P0601 points to a PCM internal fault requiring module replacement.
If your 1996 Oldsmobile Silhouette 3.4L is experiencing intermittent stalling, no-start conditions, or transmission shifting issues, the Powertrain Control Module (PCM) may be the culprit. This guide explains what the PCM does in your vehicle, where it is located, and what the replacement process involves. You will learn the factory-recommended labor times, critical installation precautions, and the post-install programming steps that are required. Understanding these details helps you decide whether to repair or replace the module and ensures you get a unit that is ready to install without additional programming.
What the PCM Does in a 1996 Oldsmobile Silhouette
The PCM in your 1996 Oldsmobile Silhouette 3.4L is the central computer that controls fuel injection, ignition timing, transmission shift points, and emissions systems. It receives data from sensors throughout the engine and drivetrain, then adjusts outputs to keep everything running efficiently. When the PCM fails, the vehicle may not start, may stall unpredictably, or may set diagnostic trouble codes such as P0601. Replacing a faulty PCM restores proper engine and transmission control. For a direct fit, consider replacement PCM for the Oldsmobile Silhouette that comes pre-programmed to your vehicle’s VIN, eliminating the need for dealer-level programming.
Where the PCM Is Located and What Replacement Involves

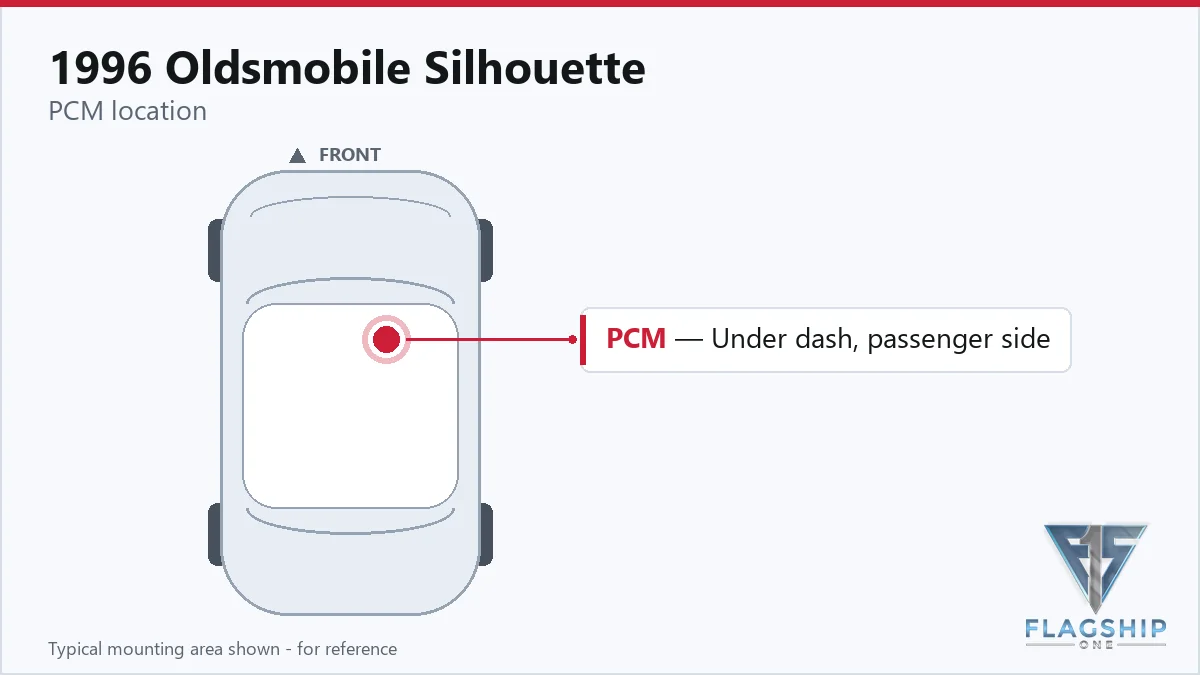

The Powertrain Control Module (PCM) on your 1996 Oldsmobile Silhouette 3.4L is located behind the right side of the instrument panel, behind the convenience center. Access requires removing the convenience center and possibly some trim panels. According to factory labor times, PCM removal and replacement (R&R) is estimated at 1.4 hours, and a PCM relearn procedure takes an additional 0.5 hours. During installation, follow the factory caution: turn the ignition OFF when connecting or disconnecting PCM connectors, battery cables, PCM pigtails, PCM fuses, or jumper cables to prevent internal damage. Also avoid touching connector pins or circuit board components to prevent electrostatic discharge (ESD) damage.
How to Reach the PCM on the 1996 Oldsmobile Silhouette
- Remove the negative battery cable.
- Remove the harness connectors from the PCM.
- Remove the PCM from the mounting hardware.
- Remove the PCM.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 1.4 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Powertrain Control Module R&R | All configurations | 1.3 hr |
Programming Requirements After Replacement
After installing a new or replacement PCM in your 1996 Oldsmobile Silhouette 3.4L, the factory procedure requires a PCM relearn, which takes 0.5 hours of labor. This relearn allows the module to adapt to your vehicle’s specific engine and transmission characteristics. Additionally, the PCM may need reprogramming with the latest calibration, as noted in service bulletin #99-06-04-053. To bypass these steps, choose a VIN-programmed replacement PCM from Flagship One. Your unit arrives with the correct software already loaded, so you can install it and drive without visiting a dealership for programming.
Symptoms of a Failing PCM
Common failure symptoms of the PCM in your 1996 Oldsmobile Silhouette 3.4L include a no-start condition where the engine cranks but does not fire, intermittent stalling while driving, and erratic transmission shifting. You may also notice the check engine light illuminated with codes such as anchor text which indicates an internal PCM fault. Other signs include poor fuel economy, misfire codes, or a complete loss of communication with a scan tool. If you experience any of these issues, diagnosing the PCM early can prevent being stranded.
Module Trouble Codes on the 1996 Oldsmobile Silhouette
The following diagnostic trouble code is documented as a module-internal fault for your 1996 Oldsmobile Silhouette 3.4L. This code indicates a problem within the PCM itself rather than a sensor or wiring issue.
| Code | Meaning | Full Guide |
|---|---|---|
| P0601 | Internal memory checksum error | Full P0601 guide → |
Factory Service Bulletins Worth Knowing
Two factory service bulletins apply to the PCM in your 1996 Oldsmobile Silhouette 3.4L. Bulletin #99-06-04-053, dated October 26, 1999, provides information on PCM reprogramming. Bulletin #83-81-32, dated September 16, 1998, introduces new PCM connector service kits. These bulletins indicate that GM recognized the need for updated programming and improved connector reliability for this vehicle.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 99-06-04-053 | Info – PCM Reprogramming – (Oct 26, 1999) | — |
| 83-81-32 | INFO – NEW PCM CONNECTOR SERVICE KITS – (Sep 16, 1998) | — |
Protecting the PCM in Your 1996 Oldsmobile Silhouette
- Keep your battery and charging system in good condition; voltage spikes can damage the PCM.
- Inspect and clean all PCM ground connections and connector terminals periodically.
- Avoid jump-starting your vehicle with a running donor car; use a battery charger instead.
- Address any diagnostic trouble codes promptly to prevent secondary damage to the PCM.
- Ensure the PCM connector seals are intact and free of moisture or corrosion.
Frequently Asked Questions
How do I know if the PCM in my 1996 Oldsmobile Silhouette 3.4L is bad?
Common signs include a no-start condition, stalling, erratic transmission shifting, and the check engine light on with code P0601. A scan tool that cannot communicate with the PCM also indicates a failure.
Can I replace the PCM in my 1996 Oldsmobile Silhouette 3.4L myself?
Yes, if you have basic mechanical skills. The PCM is located behind the right side of the instrument panel behind the convenience center. The factory labor time for R&R is 1.4 hours. Be sure to turn the ignition off and avoid touching connector pins to prevent ESD damage.
Does a replacement PCM for my 1996 Oldsmobile Silhouette 3.4L need programming?
Factory procedure requires a PCM relearn (0.5 hours) and possibly reprogramming per bulletin #99-06-04-053. However, a VIN-programmed replacement unit from Flagship One arrives ready to install, so no additional programming is needed.
When your 1996 Oldsmobile Silhouette 3.4L needs a new PCM, you have two options: have a shop repair the original module or replace it with a refurbished unit. Repair may be possible for some internal faults, but replacement is often more reliable. A pre-programmed PCM from Flagship One eliminates the need for dealer visits and gets your Silhouette back on the road quickly.
Flagship One stocks a refurbished, VIN-programmed PCM for the 1996 Oldsmobile Silhouette with a lifetime warranty, free shipping and no core charge. The full Oldsmobile Silhouette module lineup covers other engine configurations as well.
Final Thoughts
The PCM in your 1996 Oldsmobile Silhouette 3.4L is a critical component that controls engine and transmission performance. Recognizing symptoms like no-start or code P0601 early can save you time. Whether you choose repair or replacement, a VIN-programmed unit simplifies the process and restores your vehicle’s reliability.
