1996 GMC Jimmy PCM Replacement Guide
The Powertrain Control Module (PCM) in the 1996 GMC Jimmy integrates engine and transmission functions, monitoring sensors and controlling actuators. Failure often leads to starting problems, stalling, or erratic shifting.
Quick Summary
- PCM governs engine and transmission operation.
- It is mounted on the right fender well.
- Replacement takes 1.0 to 1.8 hours depending on access.
- Programming is pre‑done on Flagship One units.
- Code P0601 indicates internal PCM communication failure.
If your 1996 GMC Jimmy is experiencing sudden stalling, misfires, or fails to start, a malfunctioning Powertrain Control Module could be the culprit. The PCM sits in the right fender well, orchestrating the engine and transmission to keep the vehicle running smoothly. Understanding what the PCM does, how to locate it, and what steps are required to replace it will help you make an informed decision about whether to repair or replace the unit. This guide explains the module’s role, the practical steps to replace it, and the precautions you should observe during the process.
What the PCM Does in a 1996 GMC Jimmy
The Powertrain Control Module in the 1996 GMC Jimmy controls the engine’s fuel injection, ignition timing, and the transmission’s shift logic. It gathers data from sensors such as crankshaft position, throttle position, and coolant temperature, and uses that data to calculate the optimal fuel‑air mixture and ignition spark. The module also manages transmission shift points and torque converter lockup. A failure in this system can cause the engine to misfire, stall, or run poorly, and can prevent the transmission from shifting correctly. replacement engine computers for the 1996 GMC Jimmy for the correct application.
Where the PCM Is Located and What Replacement Involves

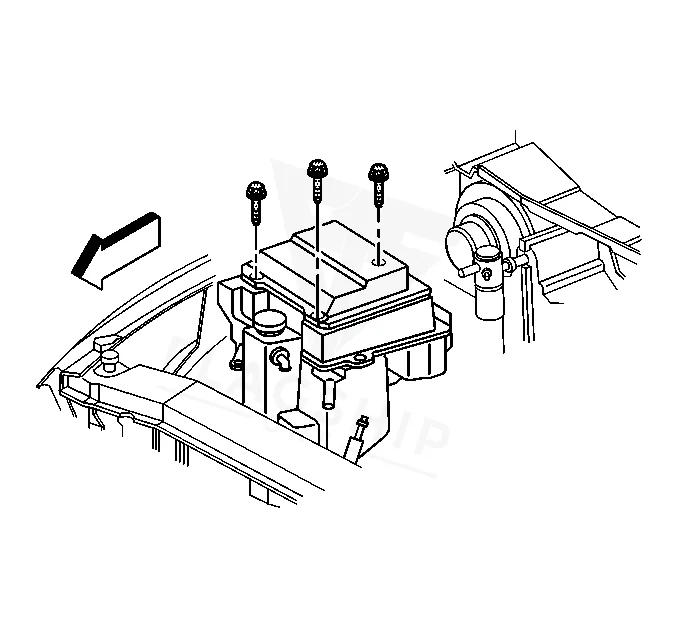

The PCM is located on the right side fender well of the 1996 GMC Jimmy. Removing it requires access from under the vehicle. The standard labor time for removal and reinstallation is 1.0 hours when working from under the hood, or 1.8 hours when accessing through the instrument panel. Carefully disconnect the battery before beginning work to avoid electrical hazards. The module is secured with fasteners that must be removed before the unit can be lifted out of the fender well.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | Under Hood | 1.0 hr |
| Powertrain Control Module R&R | Under Inst. Panel | 1.8 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | Under Hood | 0.9 hr |
| Engine Control Module R&R | Under Inst. Panel | 1.8 hr |
Programming Requirements After Replacement
After a new PCM is installed, the factory requires a reprogramming step to align the module with the vehicle’s VIN and calibration data. Flagship One units arrive pre‑programmed with the correct VIN, so the technician can skip the reprogramming procedure and simply install the unit. a VIN-programmed replacement unit for the correct application.
Symptoms of a Failing PCM
A faulty PCM in the 1996 GMC Jimmy often shows as a no‑start condition, engine stalling under load, or irregular shifting behavior. The vehicle may also flash diagnostic trouble codes, most commonly P0601, which indicates a communication error inside the PCM. In addition, drivers may notice a loss of power, misfires, or a rough idle. These symptoms arise because the PCM cannot properly coordinate engine and transmission functions.
Module Trouble Codes on the 1996 GMC Jimmy
The 1996 GMC Jimmy’s PCM can generate internal codes that signal specific failures. The most frequent code is P0601, pointing to an internal communication issue within the module.
| Code | Meaning | Full Guide |
|---|---|---|
| P0601 | Internal memory checksum error | Full P0601 guide → |
Factory Service Bulletins Worth Knowing
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 99-06-04-053 | Info – PCM Reprogramming – (Oct 26, 1999) | — |
Protecting the PCM in Your 1996 GMC Jimmy
- Keep the battery’s charging system in good condition.
- Inspect and clean all ground connections and connectors.
- Avoid voltage spikes by using a surge protector when jump‑starting.
- Respond promptly to any diagnostic trouble codes.
- Seal connector housings to prevent moisture ingress.
- Regularly check the battery terminal for corrosion.
Frequently Asked Questions
Can I replace the PCM on my 1996 GMC Jimmy without a technician?
Replacing the PCM requires removing it from the fender well and reconnecting electrical harnesses. While it is a mechanical task, the module must be programmed to the vehicle’s VIN. Without proper programming, the unit will not function correctly.
Will a new PCM fix my 1996 GMC Jimmy’s stalling issue?
If the stalling is caused by a faulty PCM, a new module should restore proper engine and transmission coordination. However, other components such as sensors or wiring may also contribute to stalling symptoms.
Is there a factory service bulletin for PCM replacement on the 1996 GMC Jimmy?
The only bulletin documented is #99-06-04-053, which covers PCM reprogramming procedures.
What safety steps should I follow when working on the PCM?
Always disconnect the battery and turn off the ignition before disconnecting or reconnecting harnesses. Avoid touching connector pins or soldered components to prevent electrostatic discharge damage.
How long does it take to install a new PCM?
Labor times range from 1.0 to 1.8 hours depending on whether access is from under the hood or through the instrument panel.
When the 1996 GMC Jimmy’s PCM is compromised, you can choose between a repair that restores the original unit or a refurbished replacement that offers the same performance with a new module. Either option requires proper installation and, for refurbished units, may include a pre‑programmed VIN to simplify the process. Consider your vehicle’s condition and your maintenance goals before deciding.
Flagship One stocks a refurbished, VIN-programmed PCM for the 1996 GMC Jimmy with a lifetime warranty, free shipping and no core charge. The full GMC Jimmy module lineup covers other engine configurations as well.
Final Thoughts
For the 1996 GMC Jimmy, a reliable PCM is essential for smooth engine and transmission operation. By following the proper installation steps and safety precautions, you can restore your vehicle’s performance and avoid future powertrain issues.
