1996 Dodge Ram Truck PCM Relearn and Replacement Guide
The Powertrain Control Module in a 1996 Dodge Ram Truck manages engine and transmission commands. Failure can cause loss of driveability, erratic shifting, or no‑start conditions as the computer cannot regulate fuel, timing, or gear engagement.
Quick Summary
- PCM relearn typically requires about half an hour of labor.
- Factory service bulletins warn of wiring harness issues that may trigger PCM faults.
- Flagship One units arrive VIN‑programmed, eliminating post‑install coding steps.
When a 1996 Dodge Ram Truck exhibits powertrain warning lights or erratic performance, the PCM often becomes the focus of diagnosis. Understanding what the module does, how to access it, and what steps follow replacement can save you time and prevent unnecessary parts swaps. This guide walks you through the relearn process, highlights relevant factory bulletins, and explains why a VIN‑programmed replacement from Flagship One may simplify the job. By the end, you will know the typical labor effort, the importance of proper wiring, and how to keep your truck running smoothly after the PCM work is done.
What the PCM Does in a 1996 Dodge Ram Truck (Cummins)
The Powertrain Control Module in the 1996 Dodge Ram Truck serves as the central computer that monitors sensor inputs and directs fuel injection, ignition timing, and transmission shifting. It translates data from the engine, transmission, and emissions systems into actionable commands, ensuring optimal performance and emissions compliance. Because the PCM coordinates both diesel and gasoline powertrains, any loss of communication can halt engine operation or cause harsh shifting. Proper operation is essential for fuel economy and drivability. For owners seeking replacements, 1996 Dodge Ram Truck replacement PCM provides a direct fit and maintains the vehicle’s calibration integrity.
Where the PCM Is Located and What Replacement Involves
The PCM resides beneath the dash, attached to the steering column on the 1996 Dodge Ram Truck. Access typically involves removing the lower steering column cover, disconnecting the electrical connector, and unbolting the module. Replacement labor is listed as 0.4 hours for a diesel PCM removal and reinstall. After the unit is secured, the connector is reattached and the cover reinstalled. No specific torque values are provided in the labor data, so follow standard connector seating procedures.

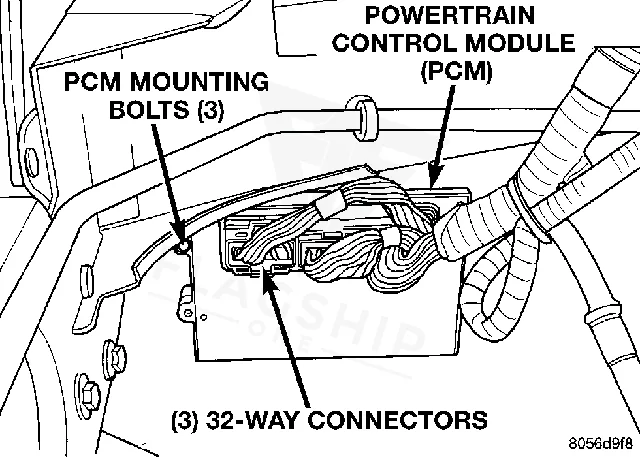

How to Reach the PCM on the 1996 Dodge Ram Truck (Cummins)
- Disconnect the negative battery cable at battery.
- Unplug the three 32 – way connectors from PCM.
- Remove three PCM mounting bolts and remove PCM from vehicle.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Powertrain Control Module R&R | Ram 1500 | 0.4 hr |
| Powertrain Control Module R&R | GAS | 0.4 hr |
| Powertrain Control Module R&R | DIESEL | 0.4 hr |
| Powertrain Control Module R&R | DIESEL | 0.7 hr |
| Engine Control Module Relearn | Ram 1500 | 0.5 hr |
| Engine Control Module Relearn | Ram 2500 | 0.5 hr |
| Engine Control Module Relearn | Ram 3500 | 0.5 hr |
Programming Requirements After Replacement
After installing a new PCM, the factory procedure calls for a Powertrain Control Module relearn, which is documented as a 0.5‑hour task for the 1996 Dodge Ram Truck. Flagship One units arrive pre‑loaded with the correct VIN data, so the required relearn step is the only programming action needed on the shop floor. This eliminates the need for additional coding sessions. By using a VIN‑programmed replacement unit, you can complete the install and relearn without external programming tools.
Symptoms of a Failing PCM
Common signs of a failing PCM in a 1996 Dodge Ram Truck include a no‑start condition, intermittent stalling, rough idle, and unexpected transmission shifts. Diagnostic trouble codes may appear as communication errors or sensor mismatches, and the check engine light often illuminates. Drivers may also notice reduced power or poor fuel efficiency as the module struggles to manage engine parameters correctly.
Factory Service Bulletins Worth Knowing
Factory Service Bulletin #18-21-98 warns technicians to exercise caution when servicing the PCM due to potential damage from improper handling. Bulletin #08-01-97 addresses known issues with the JTEC PCM wiring harness connector, recommending repair packages to prevent intermittent faults. Both bulletins emphasize the importance of correct connector seating and wiring integrity during PCM work.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 18-21-98 | 18-21-98 Powertrain Control Module (PCM) Service Caution | — |
| 08-01-97 | 08-01-97 JTEC PCM Wiring Harness Connector Repair Packages | — |
Protecting the PCM in Your 1996 Dodge Ram Truck (Cummins)
- Maintain a healthy charging system to avoid voltage spikes that can stress the PCM.
- Inspect and clean all PCM ground connections regularly.
- Use proper jump‑start techniques to protect the module from surge damage.
- Promptly address any diagnostic codes that appear.
- Ensure connector seals remain intact to keep moisture out.
- Avoid exposing the PCM to extreme temperatures during service.
Frequently Asked Questions
What causes a PCM failure in a 1996 Dodge Ram Truck?
Typical causes include wiring harness corrosion, voltage spikes from the charging system, and internal component wear that can disrupt sensor communication.
Do I need special tools to relearn the PCM on my 1996 Dodge Ram Truck?
The relearn procedure is a timed labor task documented at 0.5 hours and can be performed with standard scan tools that support PCM initialization.
Can I replace the PCM with an aftermarket unit?
Aftermarket units may require additional coding and calibration, whereas a VIN‑programmed OEM replacement ensures proper integration without extra steps.
How often should the PCM wiring harness be inspected?
Regular inspections during scheduled service, especially if you notice intermittent codes or communication errors, can help catch harness issues early.
Will a faulty PCM affect transmission performance?
Yes, because the PCM also controls shift timing, a malfunction can lead to harsh or delayed shifts and may trigger transmission-related codes.
When the PCM in your 1996 Dodge Ram Truck needs attention, you can either have a certified shop perform the relearn and install a refurbished unit, or choose a new VIN‑programmed replacement from Flagship One. Both paths aim to restore reliable powertrain control while respecting the vehicle’s original specifications.
Flagship One stocks a refurbished, VIN-programmed PCM for the 1996 Dodge Ram Truck (Cummins) with a lifetime warranty, free shipping and no core charge. The full Dodge Ram Truck (Cummins) module lineup covers other engine configurations as well.
Final Thoughts
Addressing PCM issues in your 1996 Dodge Ram Truck promptly helps maintain performance and fuel efficiency. Consider a VIN‑programmed replacement to simplify the post‑install steps and get back on the road with confidence.
