1996 Chrysler Town & Country 3.3L PCM Replacement Guide
The powertrain control module (PCM) in your 1996 Chrysler Town & Country 3.3L is the main computer that manages engine and transmission operation. When it fails, the vehicle may not start, run poorly, or set internal fault codes like P0601.
Quick Summary
- The PCM controls fuel injection, ignition timing, and transmission shift points in your 1996 Town & Country.
- Failure often results in no-start, stalling, or a check-engine light with codes P0600, P0601, or P1698.
- Replacement requires 0.6 hours labor for removal and installation, plus a 0.5-hour relearn procedure.
- Factory service bulletin 18-037-05 covers flash programming recovery using a DRBIII scan tool.
- A VIN-programmed replacement PCM from Flagship One arrives ready to install, eliminating the factory relearn step.
If your 1996 Chrysler Town & Country 3.3L is experiencing intermittent stalling, a no-start condition, or a check-engine light that won’t go away, the powertrain control module (PCM) may be the culprit. The PCM is the main computer that coordinates engine and transmission functions. This article explains what the PCM does in your minivan, where it is located, how replacement is performed, and what symptoms to watch for. You will also learn about the factory relearn procedure and how a pre-programmed replacement unit can simplify the repair.
What the PCM Does in a 1996 Chrysler Town & Country
The powertrain control module (PCM) in your 1996 Chrysler Town & Country 3.3L is a single computer that integrates engine control and transmission control functions. It receives input from sensors such as the crankshaft position sensor, throttle position sensor, and oxygen sensors, then adjusts fuel delivery, spark timing, and shift patterns accordingly. When the PCM fails, it can cause a range of drivability issues because the engine and transmission no longer receive correct commands. For this vehicle, replacement PCMs for the Town & Country are available that match the original specifications. The module is critical for meeting emissions standards and ensuring smooth operation, so a faulty unit should be addressed promptly.
Where the PCM Is Located and What Replacement Involves
The PCM in a 1996 Chrysler Town & Country 3.3L is typically mounted in the engine compartment, often on the driver-side inner fender or near the battery. Replacement involves disconnecting the battery, removing the electrical connectors, unbolting the module, and installing the new unit. According to factory labor times, the removal and replacement (R&R) of the PCM is allotted 0.6 hours. After installation, a relearn procedure is required, which is listed at 0.5 hours. Access may require removing an air intake duct or other components, but the job is straightforward for a competent DIYer or professional mechanic.

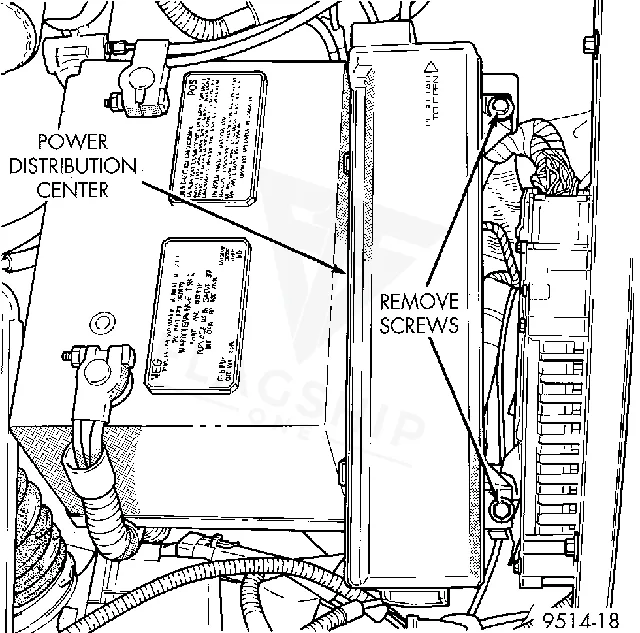

How to Reach the PCM on the 1996 Chrysler Town & Country
- Disconnect both cables from battery, negative cable first.
- Remove 2 screws holding Power Distribution Center (PDC) to bracket distributioncenter.
- Remove heat shield from battery heatshieldbattery.
- Remove nut and clamp holding battery to battery tray clampnut.
- Remove battery from vehicle.
- Rotate PDC toward center of vehicle to remove from rear bracket.
- Pull PDC rearward to remove from front bracket.
- Remove 3 screws holding PCM to fender.
- Remove PCM from vehicle.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Powertrain Control Module R&R | All configurations | 0.6 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 0.6 hr |
Programming Requirements After Replacement
After installing a new PCM in your 1996 Chrysler Town & Country 3.3L, the factory procedure requires a relearn process using a DRBIII scan tool, as outlined in service bulletin 18-037-05. This step ensures the module syncs with the vehicle’s security system and learns idle parameters. The relearn is allotted 0.5 hours of labor. However, when you purchase a VIN-programmed replacement PCM from Flagship One, the module arrives with your vehicle’s VIN and calibration already loaded. This means the factory relearn step is already completed, so you can install the unit and drive without needing a dealer visit.
Symptoms of a Failing PCM
A failing PCM in your 1996 Chrysler Town & Country 3.3L may cause the engine to crank but not start, or it may start and stall shortly after. You might notice erratic shifting, hesitation during acceleration, or a check-engine light that stays on. The scan tool may fail to communicate with the module. Internal trouble codes such as internal controller failure P0601 indicate a problem within the PCM itself. Other symptoms include misfire codes that do not correspond to a specific cylinder, or the transmission refusing to shift out of a single gear. If you experience these issues, the PCM should be tested before replacing other components.
Module Trouble Codes on the 1996 Chrysler Town & Country
The following trouble codes are documented for the 1996 Chrysler Town & Country 3.3L and indicate internal PCM faults. These codes require diagnosis of the module itself rather than external sensors or wiring.
| Code | Meaning | Full Guide |
|---|---|---|
| P0600 | Module-internal fault | Full P0600 guide → |
| P0601 | Internal memory checksum error | Full P0601 guide → |
| P1698 | Module-internal fault | — |
Factory Service Bulletins Worth Knowing
Factory service bulletin 18-037-05, titled ‘Flash Programming Failure Recovery Using DRBIII®’, applies to your 1996 Chrysler Town & Country 3.3L. This bulletin describes a procedure to recover a PCM that has failed during a flash programming update. It instructs technicians to use a DRBIII scan tool to re-establish communication and reload the calibration. If your PCM has been partially programmed and is now unresponsive, this bulletin provides the steps to restore it without replacing the module.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 18-037-05 | 18-037-05 Flash Programming Failure Recovery Using DRBIII® | — |
Protecting the PCM in Your 1996 Chrysler Town & Country
- Keep the battery and charging system in good condition; voltage spikes can damage the PCM.
- Inspect and clean all ground connections and PCM connector pins for corrosion or looseness.
- Avoid jump-starting the vehicle with a running donor car; connect cables only when the donor is off.
- Address any check-engine light or drivability codes promptly to prevent further module stress.
- Ensure the PCM connector seal is intact and the module is protected from moisture and engine heat.
Frequently Asked Questions
How do I know if the PCM in my 1996 Chrysler Town & Country 3.3L is bad?
Common signs include a no-start condition, stalling, or a check-engine light with codes P0600, P0601, or P1698. You may also notice erratic transmission shifting or a scan tool that cannot communicate with the module. Testing the PCM with a known-good unit can confirm the fault.
Can I replace the PCM in my 1996 Town & Country myself?
Yes, the PCM is accessible in the engine compartment and replacement is straightforward. The factory labor time for removal and installation is 0.6 hours. However, you will need a DRBIII scan tool to perform the relearn procedure unless you purchase a pre-programmed unit.
What does service bulletin 18-037-05 cover for my 1996 Chrysler Town & Country?
This bulletin provides a recovery procedure for a PCM that has failed during a flash programming update. It instructs using a DRBIII scan tool to re-establish communication and reload the calibration, which can save the module from being replaced.
When your 1996 Chrysler Town & Country 3.3L needs a new PCM, you have two main options: have a dealer install a factory module and perform the relearn, or choose a refurbished replacement that arrives pre-programmed. The latter saves you the 0.5-hour relearn labor and gets you back on the road faster. Flagship One offers VIN-programmed units that match your vehicle’s original specifications.
Flagship One stocks a refurbished, VIN-programmed PCM for the 1996 Chrysler Town & Country with a lifetime warranty, free shipping and no core charge. The full Chrysler Town & Country module lineup covers other engine configurations as well.
Final Thoughts
A failing PCM in your 1996 Chrysler Town & Country 3.3L can cause frustrating drivability issues, but replacement is a manageable repair. With a pre-programmed unit from Flagship One, you skip the factory relearn procedure and install a module ready to run. Check your symptoms and codes, then choose the solution that fits your needs.
