1996 Buick Riviera PCM Replacement & Programming Guide
The Powertrain Control Module on your 1996 Buick Riviera serves as the central computer managing the 3.8L engine and transmission operation. When this unit fails internally, it may set a P0601 code and cause drivability problems that prevent normal operation.
Quick Summary
- The PCM on this vehicle controls both engine and transmission functions through integrated software
- Internal failures often trigger code P0601, indicating memory checksum problems within the module
- Factory labor to replace the PCM is 1.2 hours, with an additional 0.5-hour relearn procedure required
- Electrostatic discharge can damage the PCM during handling, so avoid touching connector pins
- Flagship One replacement units arrive VIN-programmed, eliminating the need for dealer programming
If your 1996 Buick Riviera runs poorly, stalls, or won’t start, the Powertrain Control Module may be the culprit. This guide explains what the PCM does in your specific vehicle, the symptoms of failure, and what replacement involves. You’ll learn the factory-recommended service procedure, why proper handling matters, and how modern replacement units simplify the process. Whether you’re diagnosing a no-start condition or planning a repair, this information helps you understand what to expect and make informed decisions about your Riviera’s electronic control system.
What the PCM Does in a 1996 Buick Riviera
The Powertrain Control Module in your 1996 Buick Riviera is the central computer that manages the 3.8L V6 engine and automatic transmission as a single integrated system. Unlike older vehicles that used separate computers for engine and transmission, this design allows the PCM to optimize shift points, fuel delivery, and idle speed based on real-time sensor data. When the internal memory or processing circuitry fails, the module can no longer control these functions properly, resulting in drivability complaints that range from intermittent stalling to complete no-start conditions. The module communicates with the scan tool through the ALDL connector, and when internal diagnostics detect a fault in the processor memory, code P0601 is stored. Replacement engine computers for the Riviera must be programmed with the correct vehicle identification number and calibration software to restore proper operation.
Flagship One keeps Buick Riviera replacement engine computers in stock for exactly this failure pattern.
Where the PCM Is Located and What Replacement Involves

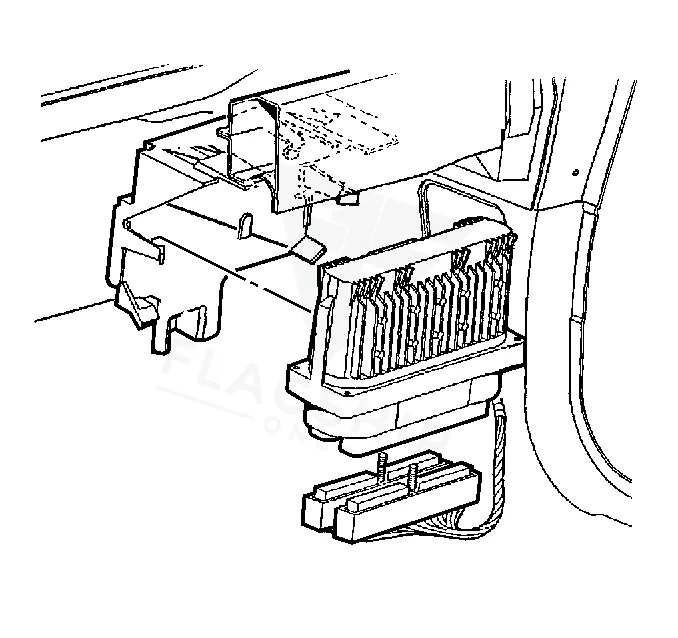

The Powertrain Control Module on the 1996 Buick Riviera is located inside the passenger compartment, typically mounted behind the left side of the instrument panel or beneath the driver’s side dashboard. Access requires removing interior trim panels to reach the unit. The factory book time for PCM replacement is 1.2 hours, which includes the physical R&R procedure. After installing the new module, a relearn procedure requiring 0.5 additional hours must be performed to allow the PCM to adapt to your vehicle’s specific sensors and actuators. The replacement process involves disconnecting the battery, removing the old module, installing the new unit, reconnecting the wiring harness, and performing the relearn procedure using a proper scan tool.
How to Reach the PCM on the 1996 Buick Riviera
- Disconnect the negative battery cable.
- Remove the PCM from mounting hardware.
- Remove the harness connectors from PCM.
- Remove the PCM from instrument panel.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module R&R | All configurations | 1.2 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Powertrain Control Module R&R | All configurations | 1.2 hr |
Programming Requirements After Replacement
After replacing the PCM on your 1996 Buick Riviera, the factory procedure requires performing a relearn procedure to allow the new module to adapt to your vehicle’s specific engine and transmission characteristics. This relearn process calibrates the idle air control, fuel trims, and transmission shift points based on actual sensor readings from your 3.8L engine. Flagship One units arrive VIN-programmed so those steps are already done, meaning the replacement module contains your vehicle’s specific calibration and is ready for installation without dealer programming delays. The new module will still need to complete its relearn cycle during normal driving, but the initial adaptation is handled by the pre-programmed unit.
Every VIN-programmed replacement unit from Flagship One arrives with these steps already completed.
Symptoms of a Failing PCM
When the Powertrain Control Module fails on a 1996 Buick Riviera, several distinct symptoms commonly appear. The vehicle may refuse to start entirely, or it could start and then stall unexpectedly as the PCM loses control of fuel delivery or idle air regulation. Misfire codes may populate across multiple cylinders because the module can no longer properly schedule ignition timing. In some cases, the scan tool fails to communicate with the vehicle at all, leaving technicians without diagnostic access. Transmission shifting may become erratic or harsh as the module loses the ability to control shift solenoids. Code P0601:internal memory failure often indicates the PCM processor has detected a checksum error in its internal memory, suggesting the module has experienced an internal electrical failure that cannot be repaired through adjustment or cleaning.
Module Trouble Codes on the 1996 Buick Riviera
The 1996 Buick Riviera can store a module-internal trouble code that specifically indicates an internal PCM fault. This code differs from regular diagnostic trouble codes because it points to a failure within the control module itself rather than a problem with external sensors or wiring. Code P0601 represents a checksum error in the PCM’s internal memory, which means the processor has detected corrupted data in its programming. This type of code typically requires module replacement rather than component repair, since the internal circuitry has failed.
| Code | Meaning | Full Guide |
|---|---|---|
| P0601 | Internal memory checksum error | Full P0601 guide → |
Factory Service Bulletins Worth Knowing
Factory Service Bulletin #99-06-04-053, issued October 26, 1999, covers PCM reprogramming for this vehicle. The bulletin addresses situations where the PCM calibration may need updating due to drivability concerns or as part of a technical update. Reprogramming the PCM involves connecting specialized equipment to update the internal software with the latest factory calibration. This bulletin applies to the 1996 model year and provides guidance for technicians performing the update procedure.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 99-06-04-053 | Info – PCM Reprogramming – (Oct 26, 1999) | — |
Protecting the PCM in Your 1996 Buick Riviera
- Maintain healthy charging system voltage to prevent low-power conditions that stress the PCM
- Ensure all ground connections to the engine and body remain clean and tight
- Avoid jump-starting other vehicles from your Riviera’s battery to prevent voltage spikes
- Address any diagnostic trouble codes promptly before they cascade into module stress
- Keep electrical connectors sealed and protected from moisture intrusion
- Install any aftermarket accessories at the battery posts rather than inline on existing wiring
Frequently Asked Questions
Will any 1996 Buick Riviera PCM work as a replacement?
No. The replacement PCM must be programmed with your specific vehicle identification number and the correct calibration for the 3.8L engine. An unprogrammed unit will not allow the vehicle to run and may trigger security codes.
Can the P0601 code be cleared and the PCM reused?
The P0601 code indicates an internal memory failure within the PCM itself. While clearing the code may temporarily extinguish the light, the internal hardware fault will typically cause the code to return. Replacement is usually required.
Do I need to visit a dealer for programming after installing a replacement PCM?
If you purchase a VIN-programmed replacement unit from Flagship One, the module arrives pre-programmed with your specific calibration. The dealer programming step is eliminated, though the vehicle will still need to complete its relearn procedure during normal driving.
When your 1996 Buick Riviera’s PCM fails, you have two primary repair paths. You may choose to replace the unit yourself using a VIN-programmed replacement, or you may opt for a refurbished unit and handle the programming separately. The key difference lies in whether you want the unit ready to install out of the box or prefer to handle the calibration work independently. Flagship One provides model-specific replacements that arrive ready for installation, saving you the trip to the dealer for initial programming. Consider your comfort level with electronic diagnostics and your timeline when deciding which approach fits your situation.
Flagship One stocks a refurbished, VIN-programmed PCM for the 1996 Buick Riviera with a lifetime warranty, free shipping and no core charge. The full Buick Riviera module lineup covers other engine configurations as well.
