1994 Mercury Grand Marquis PCM Replacement: Symptoms, Codes, TSBs
The Powertrain Control Module (PCM) in your 1994 Mercury Grand Marquis with the 4.6L engine manages fuel injection, ignition timing, and transmission control. Failure can cause drivability problems, no-start conditions, and illuminated check engine lights.
Quick Summary
- The PCM is located on the driver-side firewall near the master cylinder.
- Book time for PCM removal and replacement is 1.0 hour; diagnosis adds 0.5 hour.
- Factory TSB 97-09-08 covers PCM reprogramming procedures for this model.
- TSB 95-08-03 addresses delayed 1-2 and 3-4 upshifts requiring PCM replacement.
- Internal PCM trouble codes such as P0601 indicate module-level faults.
If you own a 1994 Mercury Grand Marquis with the 4.6L engine, you may eventually face issues traced to the Powertrain Control Module (PCM). This computer governs engine and transmission operation, and when it begins to fail, symptoms can range from a hard no-start to erratic shifting or a glowing check engine light. Understanding what the PCM does, where it lives, and what the factory service bulletins say about it can save you diagnostic time and money. This article covers the common failure symptoms, the specific trouble codes that point to internal module faults, and the replacement process including the critical programming step. You will also learn about two relevant TSBs that address reprogramming and transmission shift complaints. Whether you plan to repair or replace the PCM, knowing the facts helps you make an informed decision for your Grand Marquis.
What the PCM Does in a 1994 Mercury Grand Marquis
The Powertrain Control Module (PCM) in your 1994 Mercury Grand Marquis is the central computer that controls the 4.6L engine and the 4R70W transmission. It receives signals from sensors such as the crankshaft position sensor, throttle position sensor, and oxygen sensors, then adjusts fuel delivery, ignition timing, and shift points in real time. Because the PCM also manages the distributorless ignition system (DIS), a failing module can cause misfire codes and a no-start condition. Factory service bulletin 97-09-08 outlines a reprogramming procedure for the PCM, indicating that software updates were issued to address drivability concerns. Another bulletin, 95-08-03, specifically ties delayed or soft 1-2 and 3-4 upshifts to a need for PCM replacement. When the internal circuitry degrades, the module may lose communication with the scan tool or set codes like P0601. For a reliable fix, you will need replacement PCMs for the Grand Marquis that are pre-programmed to match your vehicle’s VIN and options.
Where the PCM Is Located and What Replacement Involves

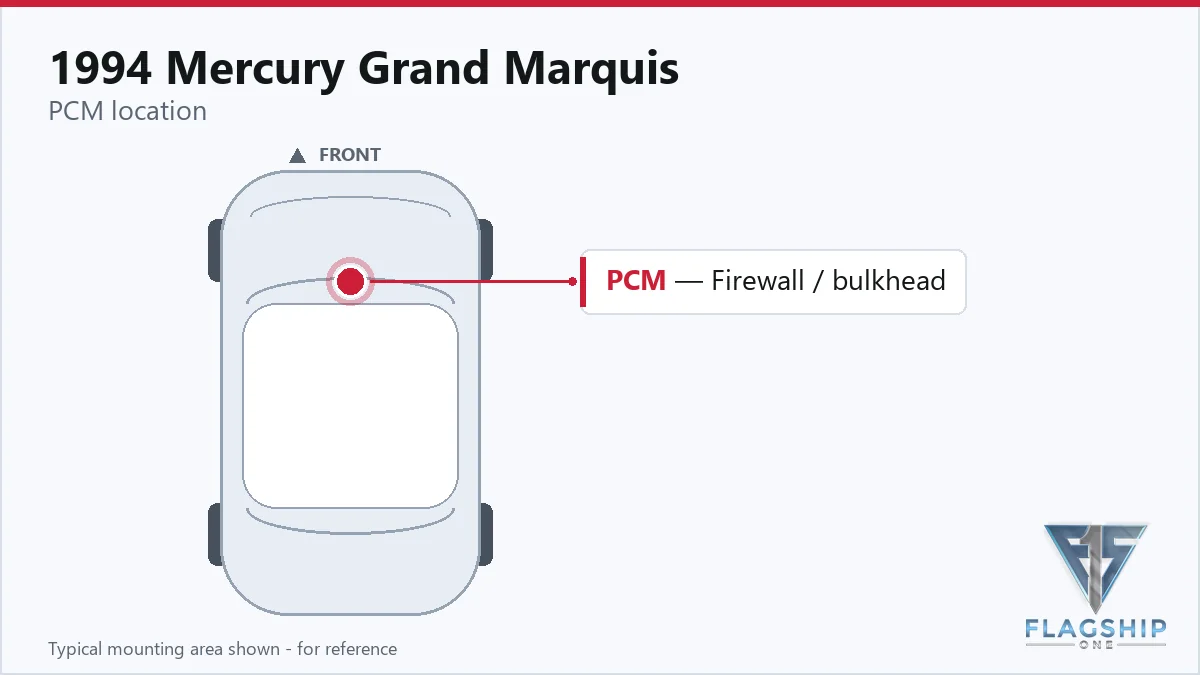

The PCM in your 1994 Mercury Grand Marquis is located in the engine compartment, attached to the firewall on the driver’s side, near the master cylinder. Access is straightforward: you will need to disconnect the negative battery cable, then unbolt the module from its bracket. The electrical connectors are held by retaining clips that must be released carefully to avoid breaking the plastic. According to published labor times, the removal and replacement of the PCM is a 1.0-hour job, and an additional 0.5 hour is allowed for powertrain control system diagnosis and testing. After installing the new module, you must reconnect the battery and verify that all connectors are fully seated. The location is well-protected from road splash, but over time corrosion can develop on the connector pins, so inspect them before installation.
How to Reach the PCM on the 1994 Mercury Grand Marquis
- Remove the powertrain Control Module Seal.
- Remove the powertrain Control Module Bracket.
- Remove the powertrain Control Module.
- Remove the powertrain Control Module Bracket Clip.
- Remove the dash Panel.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module R&R | All configurations | 1.0 hr |
| Powertrain Control System Diagnosis & Testing | All configurations | 0.5 hr |
Programming Requirements After Replacement
After replacing the PCM in your 1994 Mercury Grand Marquis, the factory procedure requires that the module be programmed with the correct calibration for your vehicle’s engine, transmission, and emissions equipment. Service bulletin 97-09-08 specifically describes a reprogramming step that must be performed using factory-level scan tools. This process typically involves downloading the latest software and entering the vehicle’s VIN and options. Without proper programming, the PCM may not communicate with the anti-theft system or may cause drivability issues. Flagship One eliminates this step by delivering a VIN-programmed replacement unit that arrives ready to install. The module is pre-loaded with the correct calibration, so you can simply bolt it in, connect the harness, and start the engine without needing a dealer visit or specialized equipment.
Symptoms of a Failing PCM
When the PCM begins to fail in your 1994 Mercury Grand Marquis, you may notice a variety of symptoms. The engine might crank but not start, or it may stall unexpectedly while driving. Misfire codes can appear even after replacing spark plugs and coils, because the PCM controls the distributorless ignition system. A common complaint is delayed or soft upshifts, especially the 1-2 and 3-4 shifts, which TSB 95-08-03 attributes to a failing PCM. The check engine light may illuminate with codes that point to internal module faults, such as internal control module fault. Other signs include a scan tool that cannot establish communication with the PCM, erratic fuel gauge readings, or the transmission going into a default limp-home mode. If you experience any of these issues, diagnosing the PCM early can prevent being stranded.
Module Trouble Codes on the 1994 Mercury Grand Marquis
The following diagnostic trouble codes are specific to the PCM internal circuitry in your 1994 Mercury Grand Marquis. These codes indicate faults within the module itself rather than external sensors or actuators.
Factory Service Bulletins Worth Knowing
Two factory service bulletins apply to the PCM in your 1994 Mercury Grand Marquis. TSB 97-09-08 provides service procedures for reprogramming the Powertrain Control Module, indicating that software updates were released to address drivability concerns. TSB 95-08-03 covers delayed, slow, or soft upshifts on the 1-2 and 3-4 shifts in vehicles with the 4.6L engine and 4R70W transmission; it states that PCM replacement is required and includes a service tip for installing a Ford authorized remanufactured transmission. A third bulletin, 95-10-02, addresses a malfunction indicator lamp (MIL) illumination related to the distributorless ignition system and a revised ignition control module connector retention clip and seal, which may be relevant if your PCM shares wiring with the ICM.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 97-09-08 | POWERTRAIN CONTROL MODULE – REPROGRAM POWERTRAIN CONTROL MODULE (PCM) – SERVICE PROCEDURES – SE | — |
| 95-08-03 | 3.8L AND 4.6L ENGINES – 4R70W – DELAYED/SLOW/SOFT OR HESITATION/SAG ON 1-2 AND/OR 3-4 UPSHIFTS | — |
| 95-10-02 | “MALFUNCTION INDICATOR LAMP” (MIL) ILLUMINATED – DISTRIBUTORLESS IGNITION SYSTEM (DIS) ONLY – I | — |
Protecting the PCM in Your 1994 Mercury Grand Marquis
- Maintain a healthy charging system; voltage spikes from a failing alternator can damage the PCM.
- Keep the battery terminals and PCM connector pins clean and free of corrosion to ensure good electrical contact.
- Avoid jump-starting your vehicle with a running donor car; use a battery pack or follow the manual’s procedure to prevent voltage surges.
- Address diagnostic trouble codes promptly; ignoring a P0601 or similar code can lead to complete module failure.
- Inspect the PCM connector seal and retention clip for damage; a loose connection invites moisture and vibration issues.
- Ensure the engine ground strap is clean and tight; poor grounds can cause erratic PCM behavior.
Frequently Asked Questions
How do I know if the PCM in my 1994 Mercury Grand Marquis is bad?
Common signs include a no-start condition, stalling, delayed or soft transmission shifts, and a check engine light with internal module codes like P0601. A scan tool that cannot communicate with the PCM is another strong indicator.
Can I replace the PCM in my 1994 Mercury Grand Marquis myself?
Yes, the PCM is accessible on the driver-side firewall near the master cylinder. The book time for removal and replacement is 1.0 hour. You will need basic hand tools and care when disconnecting the electrical connectors.
Does the PCM need to be programmed after replacement on a 1994 Grand Marquis?
Yes, factory procedure requires reprogramming with the correct calibration for your engine and transmission. TSB 97-09-08 outlines this step. Using a VIN-programmed unit from Flagship One eliminates the need for that programming.
What does TSB 95-08-03 say about the PCM in my 1994 Mercury Grand Marquis?
That bulletin addresses delayed or soft 1-2 and 3-4 upshifts in vehicles with the 4.6L engine and 4R70W transmission. It states that PCM replacement is required and includes a service tip for installing a Ford authorized remanufactured transmission.
What are the internal PCM trouble codes for a 1994 Mercury Grand Marquis?
Codes include P0600 through P0606, P0608, P0609, P0620 through P0622, and P0650 through P0656. These indicate faults within the PCM itself, such as internal memory errors or communication failures.
When your 1994 Mercury Grand Marquis PCM fails, you have two main options: attempt a repair by replacing internal components, which is rarely reliable, or install a refurbished replacement module. Given the complexity of the 4.6L engine and 4R70W transmission controls, a pre-programmed unit that matches your VIN is the most straightforward solution. Flagship One offers such modules, ready to install without a dealer visit.
Flagship One stocks a refurbished, VIN-programmed PCM for the 1994 Mercury Grand Marquis with a lifetime warranty, free shipping and no core charge. The full Mercury Grand Marquis module lineup covers other engine configurations as well.
Final Thoughts
The PCM in your 1994 Mercury Grand Marquis is a critical component that controls engine and transmission operation. Recognizing symptoms like delayed shifts or internal trouble codes such as P0601 can help you diagnose failure early. With a 1.0-hour book time for replacement and the need for VIN-specific programming, choosing a pre-programmed unit simplifies the job. Keep your Grand Marquis running reliably with the right PCM solution.
