1994 Honda del Sol PCM/ECM: Symptoms, Location, and Replacement
The engine control module (ECM) or powertrain control module (PCM) in your 1994 Honda del Sol manages fuel injection, ignition timing, and emissions. When it fails, the engine may not start, stall, or run poorly. A faulty module often causes dead communication with a scan tool and erratic shifting in automatic transmissions.
Quick Summary
- The ECM/PCM is located behind the radio, behind the glove box, or in the right kick panel area.
- Factory book time for ECM removal and replacement is 0.5 hours; PCM R&R is 0.6 hours.
- A service bulletin warns that accessory wiring can damage the fuse box and ECU connector terminals.
- After replacement, a 0.5-hour relearn procedure is required for the module to adapt to the vehicle.
- Flagship One supplies VIN-programmed units that skip the factory relearn step.
If your 1994 Honda del Sol (1.5L) is experiencing starting issues, stalling, or erratic behavior, the engine control module (ECM) or powertrain control module (PCM) may be at fault. This guide explains what the module does, where it is located, how to replace it, and what to expect after installation. You will learn about common failure symptoms, factory service bulletins, and the post-installation procedure. Understanding these details helps you decide whether to repair or replace the module and ensures you get the right part for your del Sol.
What the PCM Does in a 1994 Honda del Sol
The engine control module (ECM) in your 1994 Honda del Sol acts as the brain of the fuel and ignition systems. It reads sensor inputs for engine speed, coolant temperature, throttle position, and oxygen content, then adjusts fuel delivery and spark timing to keep the engine running efficiently. Because this is a pre-OBD-II vehicle, the module does not use generic diagnostic trouble codes; instead, it relies on Honda-specific internal fault codes. When the ECM fails, the engine may not start, may stall unpredictably, or may run with poor power and fuel economy. The module also controls the automatic transmission shift points in models equipped with one. For a reliable fix, consider replacement ECMs for the 1994 Honda del Sol that are pre-programmed to your vehicle’s VIN.
Where the PCM Is Located and What Replacement Involves

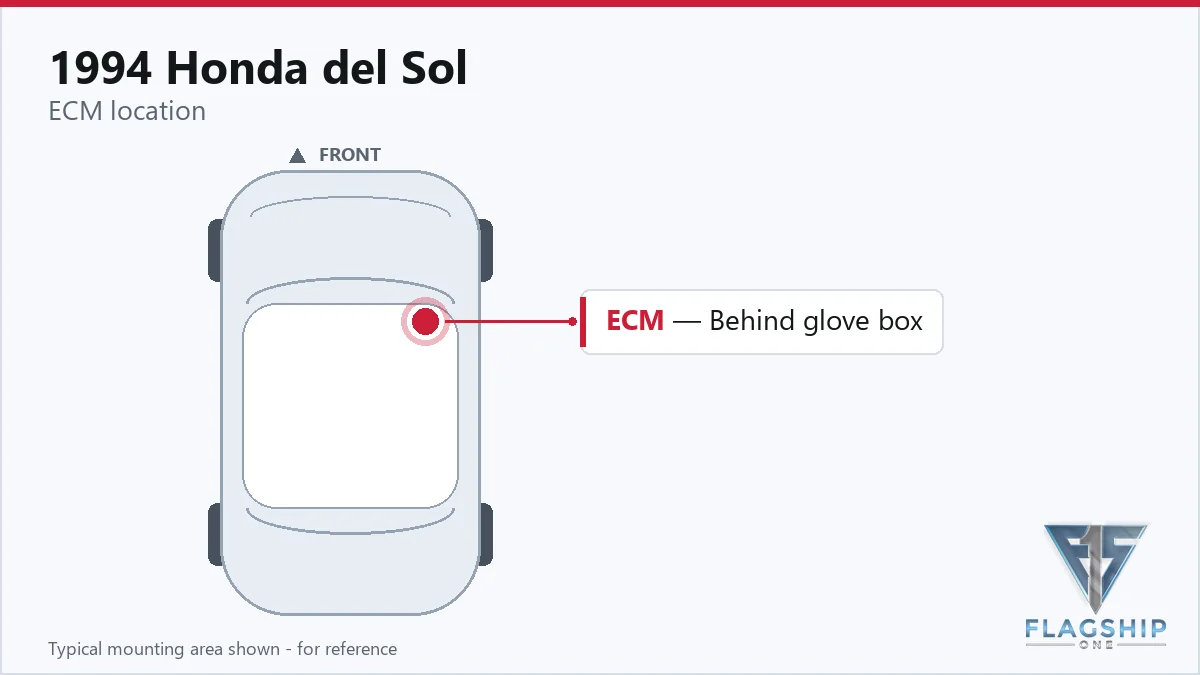

The engine control module in the 1994 Honda del Sol is mounted in one of several locations depending on trim and production date. Factory documentation shows it behind the radio (with the console removed), behind the center of the dashboard, behind the glove box, or in the right kick panel area (with the glove box removed or carpet pulled down). Some units are also found near the driver’s door jamb or behind the heater control panel. Access typically requires removing the console or glove box and possibly pulling back carpet. The factory book time for ECM removal and replacement (R&R) is 0.5 hours; for the powertrain control module (PCM) R&R, the book time is 0.6 hours. Take care when disconnecting the harness to avoid damaging the connector terminals, as noted in a factory service bulletin.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module Relearn | Civic | 0.5 hr |
| Engine Control Module Relearn | Civic del Sol | 0.5 hr |
| Engine Control Module R&R | Civic | 0.5 hr |
| Engine Control Module R&R | Civic del Sol | 0.5 hr |
| Powertrain Control Module Relearn | Civic | 0.5 hr |
| Powertrain Control Module Relearn | Civic del Sol | 0.5 hr |
| Powertrain Control Module R&R | All configurations | 0.6 hr |
Programming Requirements After Replacement
After installing a new or replacement ECM or PCM in your 1994 Honda del Sol, the factory procedure requires a 0.5-hour relearn process. This allows the module to adapt to the engine’s specific sensors and learn idle and fuel trim values. Without this step, the engine may run poorly or stall. Flagship One eliminates that hassle by delivering a VIN-programmed replacement unit that arrives ready to plug in and drive. The module is pre-loaded with the correct calibration for your del Sol, so the relearn is already complete. You simply install the unit, reconnect the battery, and start the engine.
Symptoms of a Failing PCM
Common failure symptoms of the ECM or PCM in a 1994 Honda del Sol include a no-start condition where the engine cranks but does not fire, intermittent stalling that may occur while driving, and rough idle or misfiring. You may also notice that the check engine light stays on or flashes, and a scan tool cannot communicate with the module. In automatic transmission models, shifting may become harsh or delayed. Because this is a pre-OBD-II vehicle, there are no generic P-codes; instead, the module stores internal fault codes that require a Honda-specific scanner to read. Addressing these symptoms promptly can prevent further damage to the fuel or ignition system.
Factory Service Bulletins Worth Knowing
Factory service bulletins for the 1994 Honda del Sol address two key issues. One bulletin warns that aftermarket accessory wiring can damage the fuse box and the ECU connector terminals, leading to intermittent electrical problems or module failure. Another bulletin provides instructions for removing and replacing ECU connector terminals that have been damaged. These bulletins highlight the importance of using proper wiring practices and inspecting connectors during module replacement.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| — | Accessory Wiring May Ruin Fuse Box • ECU Connector Terminal Removal | — |
Protecting the PCM in Your 1994 Honda del Sol
- Keep the charging system in good condition; a failing alternator can send voltage spikes that damage the ECM.
- Inspect and clean all ground connections and module harness connectors annually to prevent corrosion.
- Avoid jump-starting the vehicle with reversed polarity or using a high-voltage booster without surge protection.
- Address any check engine light or drivability issues promptly before they stress the module further.
- Ensure the module’s connector seals are intact and the mounting area is free of moisture and debris.
Frequently Asked Questions
How do I know if the ECM in my 1994 Honda del Sol is bad?
Common signs include a no-start condition, stalling, rough idle, and a check engine light that stays on. You may also find that a scan tool cannot communicate with the module. Because this is a pre-OBD-II vehicle, you will need a Honda-specific scanner to read internal fault codes.
Can I replace the PCM in my 1994 Honda del Sol myself?
Yes, the module is accessible behind the radio, glove box, or right kick panel. The factory book time for ECM R&R is 0.5 hours. You will need basic hand tools and care when disconnecting the harness to avoid damaging the connector terminals.
Do I need to program a new ECM for my 1994 Honda del Sol?
Factory replacement modules require a 0.5-hour relearn procedure after installation. However, Flagship One supplies VIN-programmed units that arrive ready to install, so no additional programming or relearn is needed.
When your 1994 Honda del Sol’s ECM or PCM fails, you have two main options: repair the original module or replace it with a refurbished unit. Repairing a damaged module is often temporary and may not address internal failures. A refurbished replacement from Flagship One is tested, VIN-programmed, and ready to install, saving you the 0.5-hour relearn procedure. This ensures reliable performance and restores proper engine and transmission operation.
Flagship One stocks a refurbished, VIN-programmed PCM for the 1994 Honda del Sol with a lifetime warranty, free shipping and no core charge. The full Honda del Sol module lineup covers other engine configurations as well.
Final Thoughts
The ECM or PCM in your 1994 Honda del Sol is critical for engine management and transmission control. Recognizing failure symptoms early and understanding the replacement process helps you keep your del Sol on the road. Flagship One offers VIN-programmed units that eliminate the factory relearn step, making installation straightforward. Trust a quality replacement to restore your vehicle’s performance.
