1993 Jeep Cherokee PCM Repair and Replacement Guide
The Powertrain Control Module in your 1993 Jeep Cherokee (2.5L) is the main computer that manages fuel delivery and ignition timing. When this unit fails, the engine may not start, run poorly, or stall unexpectedly.
Quick Summary
- The PCM controls fuel delivery, ignition timing, and emissions systems on the 1993 Cherokee
- Located in the engine compartment on XJ models
- Book time for replacement is 0.5 hours for R&R procedure
- A relearn procedure is required after installation
If your 1993 Jeep Cherokee (2.5L) won’t start, stalls, or runs poorly, the Powertrain Control Module could be the culprit. This guide covers what the PCM does, where it’s located, and what replacement involves. Whether you’re diagnosing a no-start condition or planning a repair, you’ll find practical information here. We cover the replacement procedure, programming requirements, and common symptoms to help you determine if the module is indeed the issue. The goal is to give you enough knowledge to make informed decisions about repair or replacement options for your Cherokee.
What the PCM Does in a 1993 Jeep Cherokee
The Powertrain Control Module in your 1993 Jeep Cherokee (2.5L) serves as the central brain for the engine management system. This unit, also known as the SBEC or engine controller in Chrysler products, controls fuel injection pulse width, ignition timing advance, and idle air control. It receives input from various sensors throughout the engine bay and adjusts operating parameters in real time to maintain drivability. On this pre-OBD-II vehicle, the module also handles emissions control functions. When replacement engine computers for the Cherokee fail, the engine may run poorly, stall, or not start at all. The module integrates multiple functions into a single unit, making diagnosis straightforward when symptoms point to the PCM rather than individual sensor failures.

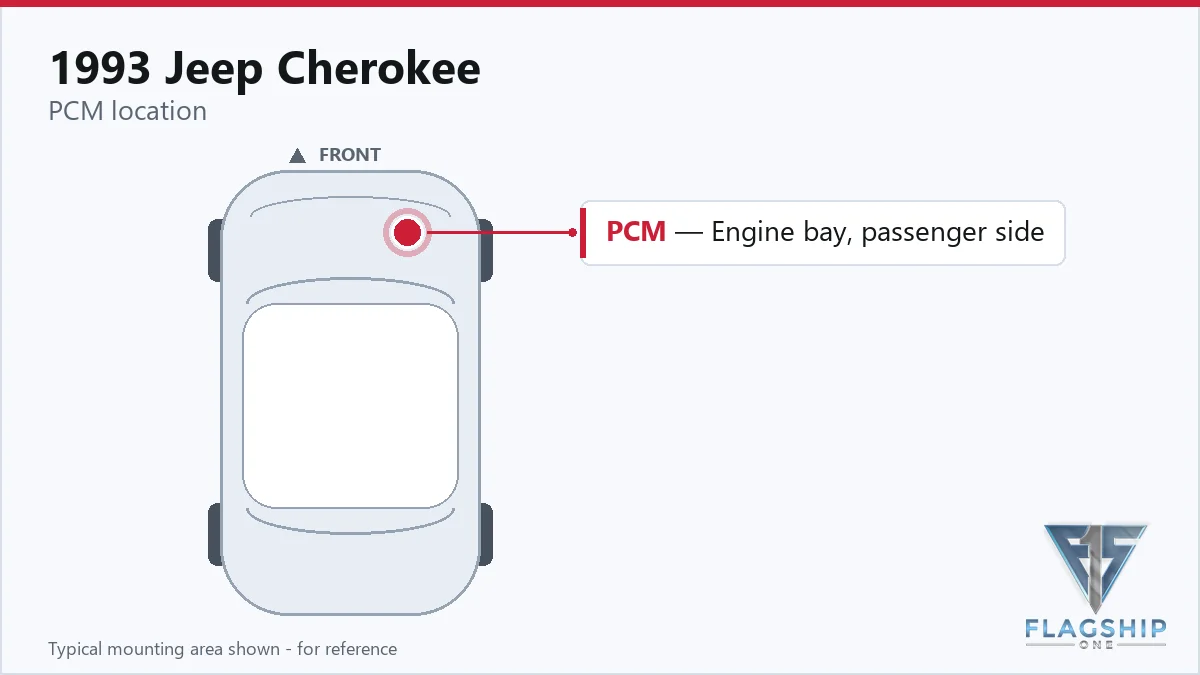

Where the PCM Is Located and What Replacement Involves
The PCM on XJ-model Cherokees like your 1993 is located in the engine compartment. Access requires working in the confined space near the firewall. The replacement procedure carries a book time of 0.5 hours for the R&R operation. You’ll need to disconnect the battery, remove the old module, transfer any mounting hardware, and install the new unit. Reconnecting the electrical harness and battery completes the physical replacement. Note that this is a straightforward swap, but working around the washer fluid bottle and associated plumbing may require careful maneuvering. After installation, the module must be initialized through a relearn procedure.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 0.5 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 0.5 hr |
Programming Requirements After Replacement
After replacing the PCM on your 1993 Jeep Cherokee, a relearn procedure is required to calibrate the new module to your specific engine. This procedure has a book time of 0.5 hours. The factory process involves connecting diagnostic equipment to establish communication and allow the module to learn sensor characteristics. This step is critical for proper drivability. Flagship One units arrive VIN-programmed, meaning the replacement module is pre-programmed with your vehicle’s specific identification before shipping. This eliminates the need for you to perform the standard factory programming steps at the dealership, saving you time and potentially hundreds of dollars in dealer fees.
Every VIN-programmed replacement unit from Flagship One arrives with these steps already completed.
Symptoms of a Failing PCM
When the Powertrain Control Module fails on a 1993 Jeep Cherokee, several telltale signs often appear. A no-start condition is common—the engine may crank normally but receive no fuel or spark due to the PCM not outputting the necessary signals. Intermittent stalling while driving can occur when the module loses proper communication with sensors. Misfire codes may set due to incorrect fuel delivery or timing. In some cases, scan tools cannot communicate with the module at all, indicating an internal failure. Transmission shifting problems can also manifest because the PCM often controls line pressure and shift firmness. If your Cherokee exhibits multiple unrelated electrical symptoms alongside drivability issues, the PCM is a strong candidate for replacement.
Factory Service Bulletins Worth Knowing
Factory service bulletin #18-037-05 addresses flash programming failure recovery using the DRBIII diagnostic tool. This bulletin provides guidance for technicians when programming procedures encounter issues. For owners, this bulletin confirms that the programming process is a known consideration in module replacement and that factory-approved procedures exist for handling programming failures. Your service technician can reference this bulletin if any programming issues arise during replacement.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 18-037-05 | 18-037-05 Flash Programming Failure Recovery Using DRBIII® | — |
Protecting the PCM in Your 1993 Jeep Cherokee
- Maintain healthy charging system voltage—weak alternator or drained battery can stress the PCM
- Ensure all ground connections are clean and secure at the engine and body
- Avoid jump-starting from booster packs that can deliver voltage spikes
- Address check engine lights and drivability codes promptly before they cascade
- Keep electrical connectors sealed from moisture and debris intrusion
Frequently Asked Questions
Will any 1993 Jeep Cherokee PCM work for my vehicle?
No. The module must be matched to your specific vehicle identification number. Flagship One programs each unit with your VIN before shipping to ensure plug-and-play compatibility.
Can I replace the PCM myself or should I hire a professional?
The physical replacement is straightforward for those with basic mechanical skills. However, the required relearn procedure typically demands dealer-grade diagnostic equipment. Consider your comfort level with electrical work and equipment access.
How do I know if my Cherokee needs a PCM or just a sensor?
Start by checking for diagnostic trouble codes. If codes point to multiple sensors simultaneously or if scan tool communication fails entirely, the PCM is likely at fault. A no-start with good spark and fuel pressure also strongly indicates PCM failure.
When your 1993 Jeep Cherokee needs a new Powertrain Control Module, you have two main paths: repair the existing unit or replace it with a refurbished one. Repair involves returning your original module for firmware restoration, while replacement gives you a ready-to-install unit. Flagship One offers VIN-programmed replacement units that arrive ready to install, eliminating dealer programming fees. Consider your budget, timeline, and whether your original module is a viable candidate for repair.
Flagship One stocks a refurbished, VIN-programmed PCM for the 1993 Jeep Cherokee with a lifetime warranty, free shipping and no core charge. The full Jeep Cherokee module lineup covers other engine configurations as well.
