1991 Honda Prelude Engine Computer Replacement Guide
The engine control module in your 1991 Honda Prelude manages fuel delivery, ignition timing, and emissions functions for the 2.0L powerplant. When this unit fails, your Prelude may refuse to start, stall unpredictably, or lose communication with diagnostic equipment. The module interprets sensor data and adjusts engine operation accordingly.
Quick Summary
- The engine computer on the 1991 Honda Prelude is located on the right side of the engine compartment in most configurations
- Book labor time for powertrain control module removal and replacement is 1.0 hours
- A relearn procedure of 0.5 hours is recommended after installing a replacement module
- Factory service bulletins address accessory wiring damage to the fuse box and ECU connector terminal removal
- This is a pre-OBD-II vehicle, so traditional P-code scanning does not apply
When your 1991 Honda Prelude begins behaving erratically, the engine control module is one of the components worth investigating. This 2.0L Prelude relies on its engine computer to coordinate fuel injection, ignition timing, and several supporting functions that keep the drivetrain running smoothly. A failing module can produce frustrating symptoms that mimic other problems, which makes accurate diagnosis essential before you spend money on parts. Understanding what this computer does, where it sits in your engine bay, and what steps follow a replacement helps you make informed repair decisions. Because the 1991 Prelude predates the OBD-II standard, you will not retrieve the familiar P-codes that later vehicles use, so diagnosis depends on checking factory-specific procedures and trouble signals. Flagship One supplies programmed replacement computers for this Prelude, and knowing the labor times, relearn requirements, and relevant service bulletins gives you a solid foundation for evaluating your options and getting your vehicle back on the road with confidence.
What the PCM Does in a 1991 Honda Prelude
The engine control module in your 1991 Honda Prelude functions as the central processor for the 2.0L engine’s fuel and ignition systems. It continuously reads input from sensors monitoring throttle position, coolant temperature, manifold pressure, oxygen content, and other operating parameters. Using that data, the module calculates optimal fuel injector pulse width and ignition advance to maintain efficient combustion across varying driving conditions. Because this Prelude uses Honda’s PGM-FI system, the computer also manages idle speed control and emissions-related functions that affect drivability and fuel economy. When the module degrades, the consequences often appear as rough running, hesitation, or complete failure to start. Internal circuit damage may develop from voltage spikes, moisture intrusion, or thermal stress over decades of service. The 1991 Prelude predates OBD-II, so the computer does not store standardized P-codes; instead, technicians rely on LED flashes and factory diagnostic sequences to identify faults. Locating a dependable 1991 Prelude replacement engine computers becomes important when the original unit is confirmed faulty. A properly matched replacement restores the calibration your specific engine and transmission combination requires, and sourcing a unit that arrives already programmed to your vehicle identification number eliminates the need for dealership-level setup equipment. Understanding the module role helps you distinguish a computer failure from sensor or wiring problems that produce similar symptoms.
Where the PCM Is Located and What Replacement Involves

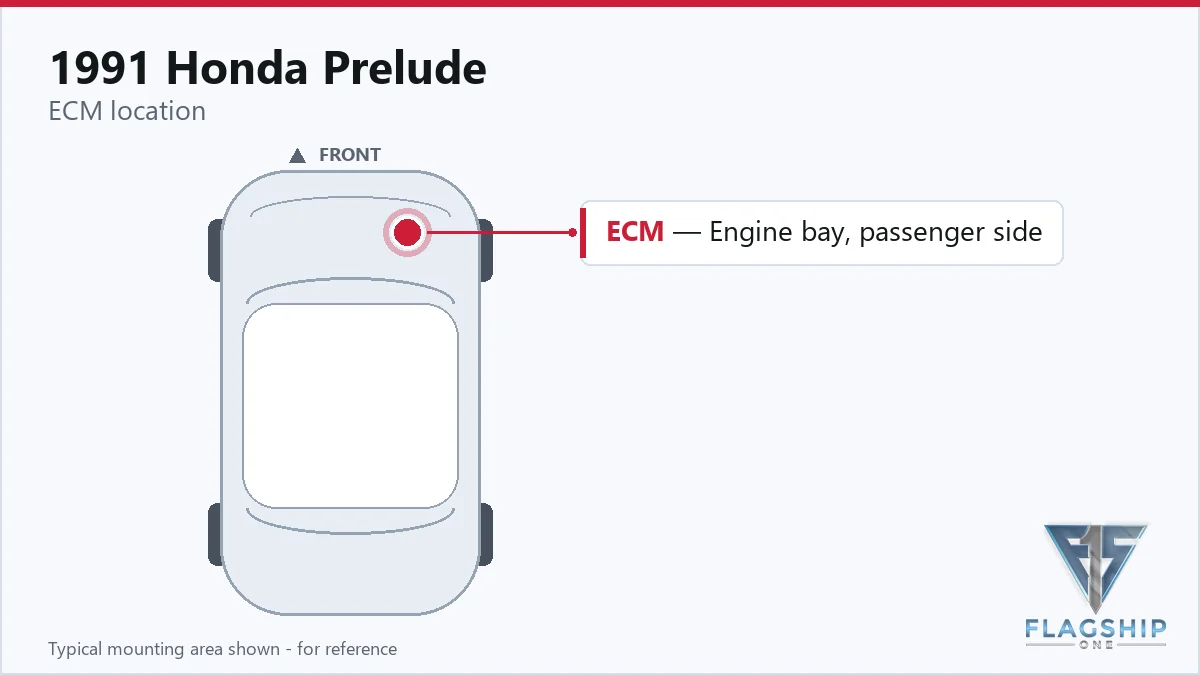

The factory photo index for the 1991 Honda Prelude places the engine control unit on the right side of the engine compartment in the majority of configurations. Additional documented positions include the right side of the engine compartment with air conditioning, the right side with PGM-FI, the right front of the engine compartment with the battery removed, and the left rear of the engine compartment in certain variants. Because multiple locations appear in the factory index, confirming the exact placement on your specific Prelude before beginning work saves time. Accessing the module may require removing the battery depending on configuration. Book labor time for powertrain control module removal and replacement is 1.0 hours, while engine control module removal and replacement is listed at 0.9 hours. These times reflect the physical swap and do not include diagnostic work or post-installation programming. The connector and mounting arrangement are straightforward, but care is needed when disconnecting the wiring harness to avoid pin damage.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 1.0 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 0.9 hr |
Programming Requirements After Replacement
After physically installing a replacement engine computer in your 1991 Honda Prelude, the factory procedure calls for a relearn process. Book time for powertrain control module relearn is 0.5 hours, and engine control module relearn is similarly listed at 0.5 hours. This relearn allows the replacement unit to adapt to your vehicle’s sensors and idle characteristics so the engine runs properly after the swap. Performing this step typically requires factory-compatible diagnostic equipment or a specific manual sequence. Flagship One addresses this requirement by supplying VIN-programmed replacement units that arrive already configured for your individual Prelude. Because the calibration is loaded before shipment, the relearn steps are already completed, and your vehicle can resume normal operation without a dealership visit for programming.
Symptoms of a Failing PCM
A failing engine control module in your 1991 Honda Prelude can produce a range of drivability problems that gradually worsen or appear suddenly. One common symptom is a no-start condition where the engine cranks but does not fire, often because the module has stopped commanding the fuel injectors or ignition system. Intermittent stalling is another frequent complaint; the engine may quit at idle or while decelerating, then restart after sitting for a period. Rough idle, hesitation during acceleration, and surging while cruising can also point to a computer that is no longer processing sensor data correctly. Because this Prelude predates OBD-II, you will not see standardized P-codes on a scan tool; instead, the onboard system uses flashing LED patterns to indicate faults. Loss of communication with diagnostic equipment is a strong indicator of module failure, since a functioning computer should respond to factory diagnostic procedures. In some cases, a failing module may cause the fuel pump to run continuously or not at all, and the check engine lamp may stay illuminated without revealing a clear fault through the flash-code system. Shifting issues are less common on this Prelude than on later computer-controlled transmission vehicles, but erratic engine behavior can still affect overall drivability. If your Prelude exhibits several of these symptoms simultaneously and basic sensor and wiring checks have not resolved them, the engine computer itself becomes a prime suspect.
Factory Service Bulletins Worth Knowing
Two factory service bulletins are relevant to the 1991 Honda Prelude engine computer. The first addresses accessory wiring that may damage the fuse box, which can affect power delivery to the engine control module and related circuits. The second bulletin covers ECU connector terminal removal, providing guidance on properly disconnecting and servicing the terminals without causing damage. Both bulletins are worth reviewing if you are diagnosing electrical issues or planning to replace the module, since wiring and connector problems can mimic a failed computer and lead to unnecessary parts replacement.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| — | Accessory Wiring May Ruin Fuse Box • ECU Connector Terminal Removal | — |
Protecting the PCM in Your 1991 Honda Prelude
- Maintain a healthy charging system, as overcharging or undercharging can stress the engine computer and related electronics
- Keep ground connections clean and tight to prevent voltage irregularities that may damage internal module circuitry
- Avoid jump-starting with a running donor vehicle, since voltage spikes can harm sensitive computer components
- Inspect wiring harness connectors for corrosion or loose pins, and address any issues promptly to protect the module
- Keep connector seals and boots intact to prevent moisture intrusion that can short internal circuits over time
- Address drivability symptoms early before they escalate, as prolonged operation with failing sensors can stress the computer
Frequently Asked Questions
Where is the engine control module located in the 1991 Honda Prelude?
The factory photo index shows the unit on the right side of the engine compartment in most configurations. Certain variants place it at the right front with the battery removed or at the left rear of the compartment. Confirming the exact location on your specific Prelude before starting work is recommended.
How long does it take to replace the engine computer in a 1991 Honda Prelude?
Book labor time for powertrain control module removal and replacement is 1.0 hours, while engine control module removal and replacement is listed at 0.9 hours. A relearn procedure adding 0.5 hours is recommended after installation. These times cover the physical swap and relearn only, not diagnostic work.
Does the 1991 Honda Prelude use OBD-II trouble codes?
No, the 1991 Prelude predates the OBD-II standard that began in 1996. This vehicle uses a factory flash-code system with LED blink patterns instead of the P-code format. Diagnosis requires following the factory procedure rather than relying on a standard OBD-II scanner.
Can I drive my 1991 Honda Prelude with a failing engine computer?
Driving with a suspected module failure is not recommended. Symptoms such as stalling, no-start conditions, or erratic idle may worsen without warning and could leave you stranded. If the module is confirmed faulty, replacing it promptly helps restore reliable operation.
Do I need to visit a dealership for programming after replacing the computer in my Prelude?
The factory procedure calls for a 0.5-hour relearn after installation. However, Flagship One supplies VIN-programmed replacement units that arrive already calibrated for your specific Prelude, which means the relearn steps are already completed and a dealership visit for programming is typically unnecessary.
If your 1991 Honda Prelude is showing signs of engine computer failure, you have options worth weighing. A repair attempt may address connector or wiring issues if the module itself is still functional, but a confirmed internal failure usually calls for replacement. Flagship One offers programmed replacement computers matched to your Prelude’s identification number, eliminating the factory relearn requirement. Reviewing your symptoms, checking the relevant service bulletins, and confirming the module location on your specific vehicle will help you move forward with confidence.

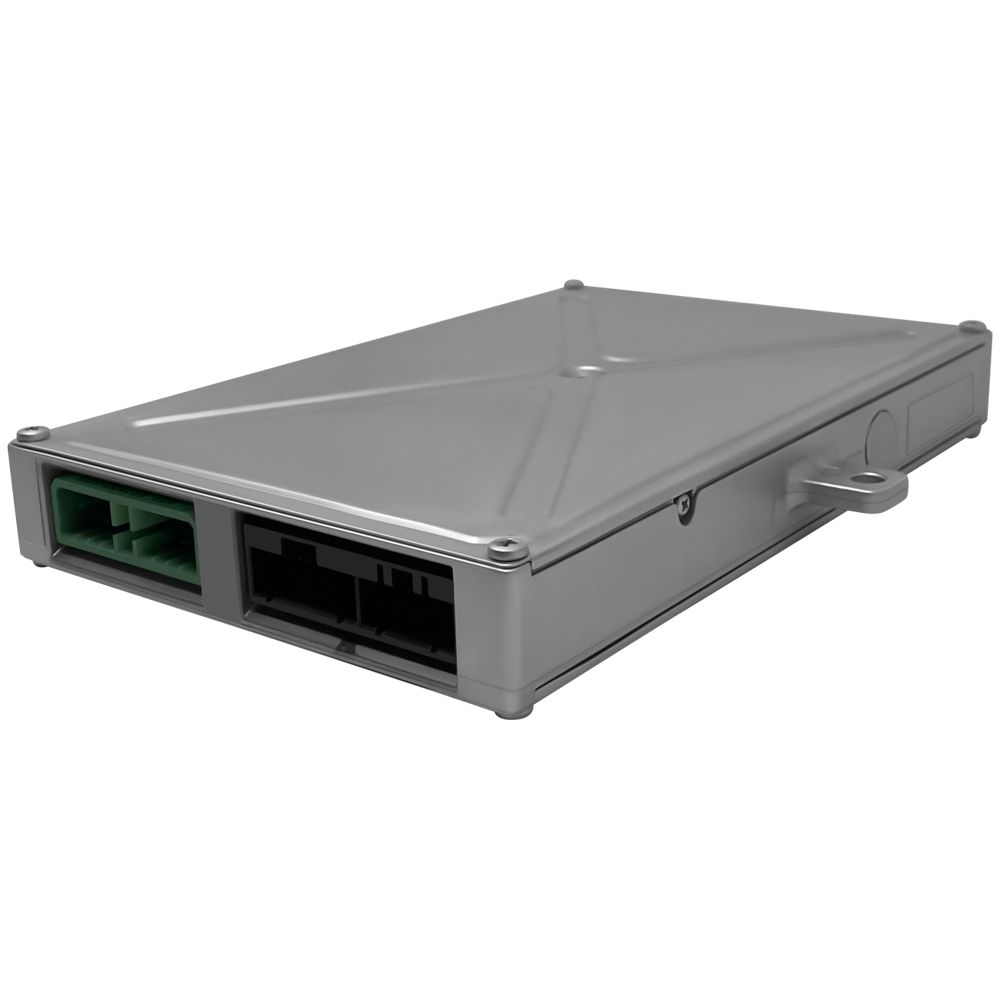

Flagship One stocks a refurbished, VIN-programmed PCM for the 1991 Honda Prelude with a lifetime warranty, free shipping and no core charge. The full Honda Prelude module lineup covers other engine configurations as well.
Final Thoughts
Your 1991 Honda Prelude depends on a healthy engine computer to manage fuel, ignition, and emissions functions for the 2.0L engine. Recognizing the symptoms of module failure, understanding the replacement process, and knowing the relevant service bulletins give you the tools to make a sound repair decision. Flagship One provides programmed replacement units tailored to your Prelude, so you can restore reliable performance without a dealership visit.
